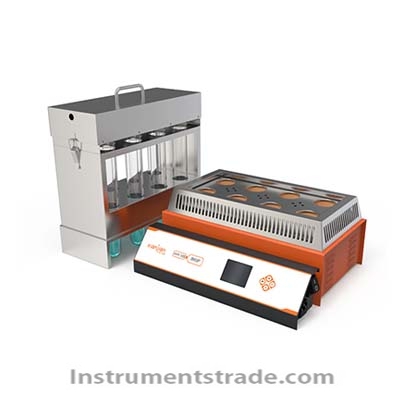

HYP-308 Eight-Hole Intelligent Digestion Furnace

Product ID：SYZYXJdrxj033

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberHYP-308

Brand NameSHXIANJIAN

Payment TermsTT，PAYPAL，Alibaba.com Pay

HYP-308 Eight-Hole Intelligent Digestion Furnace
Product Introduction
The HYP-308 Eight-Hole Intelligent Digestion Furnace is a high-precision laboratory digestion system designed for Kjeldahl nitrogen determination and sample pre-treatment. It supports multi-sample batch digestion with stable temperature control, intelligent programming, and safe operation.
With an advanced ceramic furnace core heating system, the HYP-308 ensures complete and uniform digestion of samples, making it widely used in food, dairy, soil, fertilizer, and environmental laboratories.

Performance Features
The HYP-308 intelligent digestion furnace offers high efficiency and safety for routine laboratory digestion:
• High-precision temperature control with continuous adjustment and ±1°C stability
• Ceramic furnace core heating ensures uniform and complete sample digestion
• Independent heat isolation design protects control panel from high-temperature radiation
• Over-temperature protection system automatically cuts power and alarms when exceeding set limit
• 2.5-inch LCD blue screen display showing real-time temperature and countdown timer
• Programmable heating curves (linear & curve heating modes) for different sample types
• Auto-stop and alarm function after digestion completion
• Integrated exhaust gas system allows operation without fume hood in many cases
• Complete accessory configuration for easy sample handling and operation

Working Principle
The HYP-308 digestion furnace operates using controlled ceramic core heating combined with programmed temperature curves.
• Samples in digestion tubes are placed into heating holes.
• The ceramic heating module provides uniform thermal energy.
• The system follows pre-set linear or curve heating programs.
• Nitrogen-containing compounds are digested under high temperature and catalysts.
• Exhaust gases are safely discharged through the sealed PTFE exhaust system.
• The system automatically stops and alarms after completion.
This ensures consistent Kjeldahl digestion efficiency and reduces human operation errors.

Technical Parameters

Parameter	Specification
Nitrogen measurement range	0.1 mg – 240.0 mg N
Sample capacity	8 samples per batch
Digestion time	~45 min/batch
Digestion tube volume	250 mL
Temperature range	Room temperature – 600°C
Temperature accuracy	±1°C
Average heating rate	30°C/min
Control mode	Programmable (curve & linear heating)
Heating system	Ceramic furnace core heating
Sealing material	PTFE (polytetrafluoroethylene)
Insulation design	Split air duct thermal isolation
Display	2.5-inch LCD (temperature + timer countdown)
Safety system	Over-temperature protection + automatic shutdown
Power supply	220V ±10%, 50–60 Hz
Rated power	2600 W
Dimensions	430 × 370 × 190 mm
Weight	14 kg

Application Areas
The HYP-308 digestion furnace is widely used in:
• Food and beverage nitrogen analysis (milk, protein testing)
• Agricultural soil and fertilizer testing
• Environmental monitoring laboratories
• Chemical and pharmaceutical analysis
• Academic and research institutions
• Quality control laboratories in food industry
• Kjeldahl nitrogen digestion before distillation analysis

Comparison Table

Feature	HYP-308 Intelligent Digestion Furnace	Conventional Digestion Block
Temperature control	±1°C high precision	Moderate accuracy
Heating system	Ceramic furnace core	Metal heating block
Programming	Curve & linear control	Limited or manual
Safety protection	Over-temp auto cut-off	Basic protection only
Digestion uniformity	High consistency	Medium
Operation interface	LCD digital display	Analog or simple display
Exhaust handling	PTFE sealed exhaust system	Open or basic venting
Batch capacity	8 samples	4–6 samples

FAQ
Q1: What is the HYP-308 digestion furnace mainly used for?
A: It is mainly used for Kjeldahl nitrogen digestion in food, soil, fertilizer, and chemical analysis.
Q2: Can it be used for milk and protein testing?
A: Yes, it is highly suitable for dairy protein and nitrogen determination.
Q3: Does it require a fume hood?
A: In many cases, the built-in exhaust system reduces the need for a fume hood.
Q4: How many samples can be processed at once?
A: It can process 8 samples per batch.
Q5: Is the temperature stable during operation?
A: Yes, it offers ±1°C precise temperature control with stable heating performance.
Q6: What safety features are included?
A: Over-temperature protection, automatic shutdown, and alarm system are integrated.

Conclusion
The HYP-308 Eight-Hole Intelligent Digestion Furnace is a reliable, high-efficiency laboratory digestion system designed for accurate nitrogen digestion and Kjeldahl analysis. With advanced ceramic heating, programmable control, and strong safety features, it significantly improves laboratory digestion efficiency and reproducibility.
