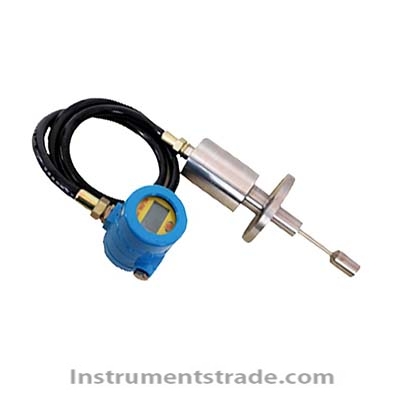

HYND-80D Explosion proof Online Viscometer Introduction: HYND-80D Explosion proof Online Viscometer is used for full range viscosity measurement of flammable and explosive media displayed on explosion-proof sites. It adopts the principle of explosion-proof type and has an explosion-proof grade of ExdIIBT6 Features: 1. Wide range design, multiple range options available 2. High precision, good repeatability, and strong stability 3. Dual parameter display of temperature and viscosity (with built-in PT1000 sensor) 4. Automatic setting of multiple viscosity units 5. No wear parts, maintenance free explosion-proof viscometer 6 . Easy installation and simple operation 7 . Multiple specifications of sensors are available, suitable for different working conditions and special fluids, and can also be customized. Technical parameters: Model: HYND-80D Explosion proof Online Viscometer Measurement parameters: viscosity range 0-106 mpa. s (viscosity meter specifications are optional); Accuracy ± 0.5%; Repeatability ± 0.3%; Temperature range -50 to+500 ℃ (optional), accuracy ± 0.5%, Environmental parameters: medium temperature -40~+500 ℃, pressure resistance range ≤ 32Mpa, Environmental temperature -40~+85 ℃, environmental humidity 0-95% R.H Output parameters: viscosity 4-20mADC; Temperature 4-20mADC, Modbus Response time: ≤ 5 seconds Power supply: 24V DC Protection level: IP67 Explosion proof standard: ExdIIBT4 Sensor material: 316 stainless steel (standard); Highly polished; Optional PTFE coating. Application areas: Widely used in petroleum extraction, refining, chemical industry, silicone oil, resin, food, chemical fiber, ink, paint, optical fiber, latex, solvents, plastics, glass, aviation kerosene, various rubber making industries. Installation method: Direct installation at pipelines, pressure vessels, reaction vessels, and flanges. Configuration: Integrated and split LCD display head, insertion depth of 150-300mm, including flange DN25, 40, 50, 80, thread M32 * 1.5, M42 * 1.5,
Introduction: HYND-80D Explosion proof Online Viscometer is used for full range viscosity measurement of flammable and explosive media displayed on explosion-proof sites. It adopts the principle of explosion-proof type and has an explosion-proof grade of ExdIIBT6
