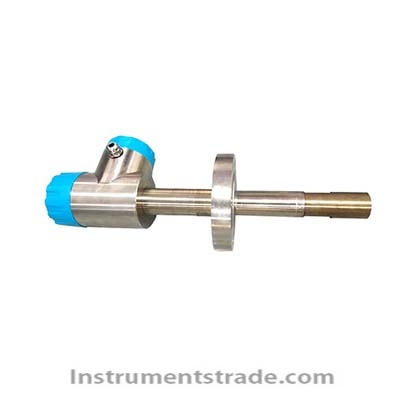

HYND-80 Universal Online Viscometer Introduction: The HYND-80 universal online viscometer is widely used in industries such as petroleum extraction, refining, chemical engineering, silicone oil, resin, food, chemical fiber, ink, paint, optical fiber, latex, solvents, plastics, glass, aviation kerosene, and various rubber making industries. Features: 1 . Wide range design, multiple range options available 2 . High precision, good repeatability, and strong stability 3. Dual parameter display of temperature and viscosity (with built-in PT1000 sensor) 4. Automatic setting of multiple viscosity units for split type viscometer 5. No wear parts, maintenance free 6. Easy installation and simple operation 7. Multiple specifications of sensors are available, suitable for different working conditions and special fluids, and can also be customized. Technical parameters: Model: HYND-80 Universal Integrated Online Viscometer Measurement parameters: viscosity range 0-106 mpa. s (viscosity meter specifications are optional); Accuracy ± 0.5%; Repeatability ± 0.3%; Temperature range -50 to+150 ℃ (optional), accuracy ± 0.5%, Environmental parameters: medium temperature -40~+150 ℃, pressure resistance range ≤ 32Mpa, Environmental temperature -40~+85 ℃, environmental humidity 0-95% R.H Output parameters: viscosity 4-20mADC; Temperature 4-20mADC, Modbus Response time: ≤ 5 seconds Power supply: 24V DC Protection level: IP67 Insertion depth: L=80-300mm Sensor material: 316 stainless steel (standard); Highly polished; Optional PTFE coating. Installation method: Direct installation at pipelines, pressure vessels, reaction vessels, and flanges. Configuration: Integrated and split LCD display head, insertion depth of 80-300mm, including flange DN25, 40, 50, 80, thread M32 * 1.5, M42 * 1.5
Introduction: The HYND-80 universal online viscometer is widely used in industries such as petroleum extraction, refining, chemical engineering, silicone oil, resin, food, chemical fiber, ink, paint, optical fiber, latex, solvents, plastics, glass, aviation kerosene, and various rubber making industries.
