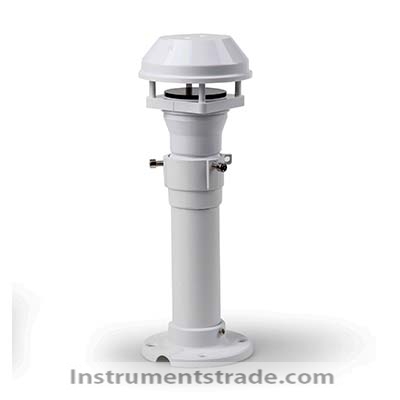

HY-SA3 Ultrasonic Anemometer

Product ID：HQQTfs045

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberHY-SA3

Brand NameCDHONGYUE

Payment TermsTT，PAYPAL，Alibaba.com Pay

HY-SA3 Ultrasonic Anemometer
Introduction:
The HY-SA3 wind speedometer is a meteorological instrument that utilizes the time difference of ultrasonic waves propagating in the air to measure wind speed and direction.
The design of this instrument incorporates elements from traditional Chinese culture, such as the concept of "heaven being round and earth being square" and "Tai Chi", breaking away from the typical appearance of meteorological instruments. The product's design features a unique multi-layered structure, embodying the concept of "outer roundness with inner squareness, squareness within roundness, and roundness within squareness", which is consistent throughout the entire series of this product. It is primarily used in household weather stations, agricultural meteorological monitoring, smart city surveillance, and environmental meteorological observation
Features:
1. Maintenance-free, with a long service life
2. No moving parts, zero wear and tear
3. Engineered plastic shell, more lightweight
4. Adopting the ultrasonic probe reflection type, the structure is more compact
5. Adopting acoustic phase compensation technology for higher accuracy
Technical Specifications:

	measurement range	Precision degree	resolution
wind speed	0 - 70m/s	± 5 ％	0.1m/s
wind direction	0 - 359 °	± 3 °	1 °
digital output	RS232, RS485, SDI-12 (choose one)
communication baud rate	4800 - 19200
communication protocol	ModBus, NMEA-0183
Protection level	IP65
Operating temperature	-20 ℃ - +60 ℃
Operating humidity	0 - 100%
Power demand	VDC: 5-30V
power consumption	0.3W
Overall dimensions / Weight	Φ110 × 140mm 0.18kg
material	ASA

HY-SA3 Ultrasonic Anemometer
Introduction:
The HY-SA3 wind speedometer is a meteorological instrument that utilizes the time difference of ultrasonic waves propagating in the air to measure wind speed and direction.
The design of this instrument incorporates elements from traditional Chinese culture, such as the concept of "heaven being round and earth being square" and "Tai Chi", breaking away from the typical appearance of meteorological instruments. The product's design features a unique multi-layered structure, embodying the concept of "outer roundness with inner squareness, squareness within roundness, and roundness within squareness", which is consistent throughout the entire series of this product. It is primarily used in household weather stations, agricultural meteorological monitoring, smart city surveillance, and environmental meteorological observation
