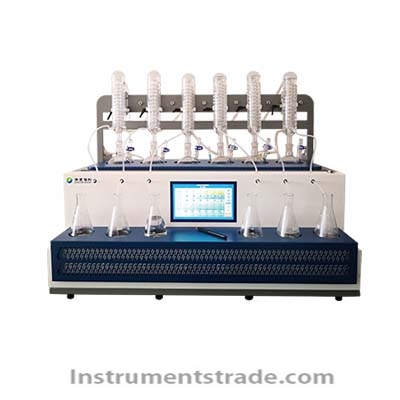

HX01A Fully Automatic Multi-Purpose Distillation Apparatus Introduction: The HX01A fully automatic multi-purpose distillation apparatus is an intelligent multi-purpose automatic distillation apparatus that integrates an infrared radiation ripple adjustable power heating system, a compressor cycle condensation system, a distillation endpoint measurement and control system, an anti-dry burning system, and an anti-siphon system. It can simultaneously distill and reflux six sets of samples. It is widely used in various fields such as environmental monitoring, water supply and drainage, industrial enterprises, research institutes, food and drug administration, disease control, universities, as well as in national standard analysis and testing projects. It is versatile and applicable in experimental processes involving sample distillation and reflux pretreatment. It can complete distillation operations for projects such as volatile phenols, cyanide and ammonia nitrogen in water and soil, COD, sulfur dioxide residue in food and drugs, formaldehyde, alcohol content, and more. Features: 1. The infrared heating radiation ripple device adopts a fully fitted round-bottom ripple furnace crucible filled with rare earth materials for far-infrared heating, featuring high thermal radiation efficiency, low power consumption, linear uniform heating, and corrosion resistance; 2. The temperature control sensor is pre-assembled into an integrated module, ensuring precise temperature control and reliable sensing. This completely eliminates issues such as sensor disconnection and false conduction due to empty suspension. It allows for constant temperature control, single-hole heating, or independent temperature control for multiple samples; 3. The heating sample position is equipped with insulation and heat insulation design, as well as functions such as overheat warning, automatic heating stop, and constant temperature heating with insulation, which not only prevent heat loss and ensure uniform and stable heating of the sample, but also prevent prolonged continuous heating and overheating, as well as dry burning, making it safe and controllable; 4. The maximum heating power for a single sample position is ≥600W, ensuring the high power required for special distillation and reflux; 5. Industrial PLC control system, featuring precise process control, high system stability, and strong scalability; 6. Nova Eyw+ operation control system, featuring a 10-inch industrial control LED touch screen with an aesthetically pleasing interface that is easy to use. It offers control modes such as micro-boiling, direct boiling, and heat preservation. The system displays heating time, preset total distillation volume, and real-time distillation volume. It can automatically control the heating rate and distillation at a specific temperature under constant temperature and heat preservation conditions based on different sample boiling points. The control is intuitive and easy to operate as needed; 7. Built-in compressor circulating water cooling system; 8. The distillation volume for the sample position can be set to a range of 10ml to 500ml. Upon completion of a single distillation, the equipment will automatically trigger an audible and visual alarm and simultaneously power off the sample position that has completed distillation. It will automatically lock and close the distillate port to prevent backflow. The residual liquid in the pipeline will be automatically discharged through the waste discharge device; Technical Specifications: Timing control: adjustable from 0-999min; Preset distillation volume: automatic peeling, adjustable from 10ml to 500ml; Distillation rate: 1~15ml/min; Distillation flask specification: 500ml*6 positions; Heating method: Infrared radiation ripple linear heating, without open flame; Heating time: 5-10 minutes; Temperature control accuracy: ±1℃ Distillation accuracy: ±0.1ml Weight accuracy: ±0.1g Control system: Nova Eyw+ control system, featuring a 10-inch LED screen. All operations are completed through touch on the system interface, eliminating the need for external manual control and personnel on duty; Distillation endpoint control: Provides dual control and dual confirmation through weight sensing and timing control; Heating temperature: The maximum temperature can reach 500℃ to meet the reflow requirements; Heating power: 0-3600W (adjustable), single unit 0-600W (adjustable); Leakage protection: Imported leakage protection system ensures experimental safety and reliability; Rated voltage: 220V/50Hz
HX01A Fully Automatic Multi-Purpose Distillation Apparatus Introduction: The HX01A fully automatic multi-purpose distillation apparatus is an intelligent multi-purpose automatic distillation apparatus that integrates an infrared radiation ripple adjustable power heating system, a compressor cycle condensation system, a distillation endpoint measurement and control system, an anti-dry burning system, and an anti-siphon system. It can simultaneously distill and reflux six sets of samples. It is widely used in various fields such as environmental monitoring, water supply and drainage, industrial enterprises, research institutes, food and drug administration, disease control, universities, as well as in national standard analysis and testing projects. It is versatile and applicable in experimental processes involving sample distillation and reflux pretreatment. It can complete distillation operations for projects such as volatile phenols, cyanide and ammonia nitrogen in water and soil, COD, sulfur dioxide residue in food and drugs, formaldehyde, alcohol content, and more.
