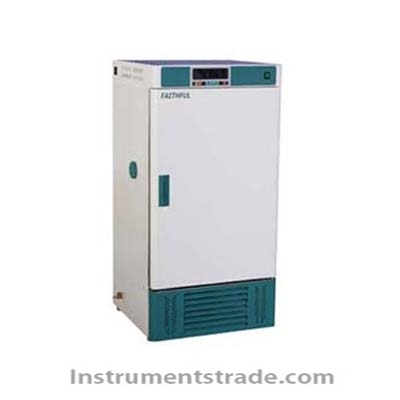

HWS-70B constant temperature and humidity chamber

Product ID：WHhwhs028

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberHWS-70B
Brand NameFEISIFU
Payment TermsT/T, paypal

HWS-70B constant temperature and humidity chamber

Technical Parameters:
Operating temperature range: no humidification: 0 ~ 65 ° C; with humidification: 10 ~ 65 ° C
Temperature resolution: 0.1 °C
Temperature fluctuation: High temperature: ±0.5°C Low temperature: ±1°C
Temperature distribution accuracy: ±1 °C
Controlled humidity range: 45% to 95% RH
Humidity fluctuation range: ±5%RH
Studio: Mirrored stainless steel
Housing: cold rolled steel plate, surface electrostatic spraying
Insulation: Polyurethane
Heater: Stainless steel electric heating tube
Rated power: 1.8kW
Compressor: air-cooled hermetic compressor
Refrigerant: R134a
Defrost construction: automatic control of intelligent frost
Humidification method: built-in
Test hole: inner diameter 43mm
Controlled external power supply: 1 external universal socket
Temperature control mode: 30-segment LCD program
Temperature setting method: Touch the button to set
Temperature indication method: Measurement temperature: liquid crystal upper position; set temperature: liquid crystal lower position
Humidity control mode: automatic
Timer: 0 to 99.9h × 30 segments (with timing wait function)
Running function: program running, timing running, automatic stop
Sensor: Pt100
Studio (width * depth * height mm): 420 * 350 * 500
Dimensions (width * depth * height mm): 570 * 560 * 1030
Packing (width * depth * height mm): 730 * 720 * 1190
Inner volume: 70L
Partition load: 15kg
Number of partitions: 9 layers
Separator spacing: 35mm
Power supply (50/60Hz) rated current: AC220V/8.2A
Net weight / gross weight kg: 69/92
