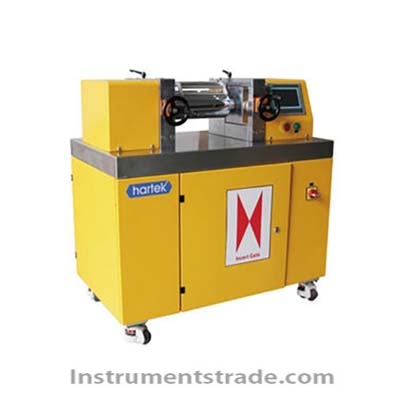

HTR-160 Laboratory Double-Roll Open Mill Introduction: The HTR-160 laboratory small double-roll open mill is applied to: rubber and plastic formula design; rubber and plastic mixing and plasticizing; rubber mixing and vulcanization reaction; preparation of rubber and plastic sheets; optimization and control of rubber open mill process parameters. Features: 1. The steel roller is driven by a branded motor, ensuring stable speed control 2. The steel roller surface is plated with hard chrome and mirror polished 3. Automatic shutdown protection device for protective cover 4. The scope of work can be adjusted as desired 5. Electric heating/oil heating can be selected according to process requirements 6. The spacing between the two rollers is manually adjustable Technical Specifications: Model: HTR-160 Sheet thickness range: 0.2~2mm Roller diameter: 160mm Roll surface width: 400mm Heating method: Electric/oil heating Maximum temperature: 300℃ Temperature control accuracy: ±2℃ Motor power: 5.5kw Weight: 530kg Overall dimensions L×W×H: 1198×648×1112mm
