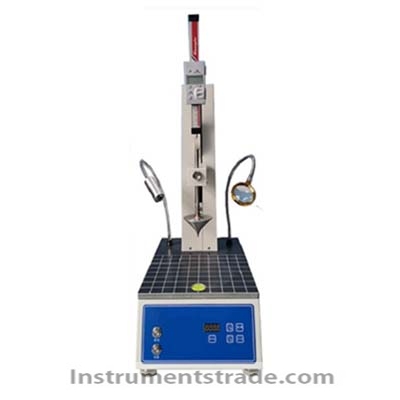

HSY-269K Butyl Rubber Cone Penetration Tester Introduction: The butyl rubber cone penetration tester is designed and manufactured in accordance with the technical requirements and relevant regulations of the People's Republic of China standard GB/T269, "Method for Determining Cone Penetration of Lubricating Grease and Petroleum Grease". It is primarily suitable for testing the cone penetration of lubricating grease and petroleum grease (vaseline), and is also applicable for testing the cone penetration of butyl rubber. This instrument can also be used, with additional accessories, for testing materials such as solid fine particles, powders, colloids, frozen bodies, as well as food raw materials such as cheese, sugar gum, butter, margarine, cream, and fermented bodies. It is widely used in the food industry, transportation and highway engineering, and other industrial sectors. Features: 1. The cone penetration value is displayed on a digital display, making it intuitive and eye-catching. 2. The cone penetration time control device has a total of 6 settings, ensuring high precision in time control. 3. It features electric coarse and fine adjustment of the lifting frame, allowing for convenient adjustment and precise alignment. 4. The quality of the cone rod assembly is precise and strictly meets the standards, making it convenient and quick for verification. 5. The machine can be used for multiple purposes and can be equipped with different configurations such as standard cones, sample dishes, thermometers, and weights, making it suitable for measurements according to national standards GB/T 4509-1998, GB/T 4509-2010, DIN ISO 2137, and the T0604-2011 standard in highway JTG E20-2011. The most notable feature of this instrument is that it holds a software copyright certificate (certificate number: 6097415); it boasts advanced mechanical design, with convenient lifting adjustments; and it features a high-precision digital cone penetration tester, ensuring reliable measurement results. Technical Specifications: Measuring range: (0~700) cone penetration; Cone penetration timing control device: It allows for the selection of 5 seconds, 8 seconds, 10 seconds, 12 seconds, 30 seconds, and 60 seconds, with a timing error less than ±0.1 seconds; Resolution: 0.01mm; Penetration accuracy: ±1 cone penetration degree; Standard cone: Standard full cone: The full cone weighs (102.5±0.05)g, meeting the specification requirements of the national standard GB/T 269; It can also be equipped with 1/2 cone and 1/4 cone. Lifting bracket: Dual lifting adjustment mechanism for coarse and fine adjustments, facilitating the alignment of the cone tip with the sample plane; Operating power supply: AC (220±10%)V, 50Hz, with power consumption not exceeding 300W. Overall dimensions: 280mm×350mm×700mm (length × width × height). Other features: Equipped with a cold light source and magnifying glass for ease of use and operation.
HSY-269K Butyl Rubber Cone Penetration Tester Introduction: The butyl rubber cone penetration tester is designed and manufactured in accordance with the technical requirements and relevant regulations of the People's Republic of China standard GB/T269, "Method for Determining Cone Penetration of Lubricating Grease and Petroleum Grease". It is primarily suitable for testing the cone penetration of lubricating grease and petroleum grease (vaseline), and is also applicable for testing the cone penetration of butyl rubber. This instrument can also be used, with additional accessories, for testing materials such as solid fine particles, powders, colloids, frozen bodies, as well as food raw materials such as cheese, sugar gum, butter, margarine, cream, and fermented bodies. It is widely used in the food industry, transportation and highway engineering, and other industrial sectors.
