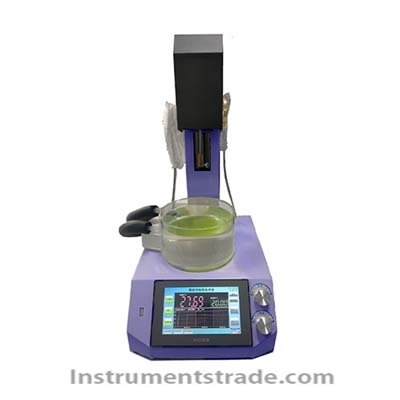

HSY-23512D Natural Gas Industry Thread Compound Cone Penetration Tester Introduction: This instrument is designed and manufactured in accordance with the technical requirements and relevant regulations specified in the Chinese standards "GB/T 23512-2015 Petroleum and Natural Gas Industries - Evaluation and Testing of Thread Compound for Casing, Tubing, Line Pipe, and Drill Stem Elements" and "GB/T269 Method for Determining Cone Penetration of Lubricating Greases and Petroleum Jels". It is primarily suitable for testing the cone penetration of thread compound. The working cone penetration is an indicator of the consistency (hardness) of thread compound. The cone penetration values of thread compound at 25 degrees and -7 degrees should meet the requirements specified in the standard. This instrument can also be used, with additional accessories, for testing materials such as solid fine particles, powders, colloids, frozen bodies, as well as food raw materials such as cheese, sugar gum, butter, margarine, cream, and fermented bodies. It finds wide applications in the food industry, transportation and highway engineering, and other industrial sectors. Features: 1. The instrument is mainly composed of a chassis bracket, a touch display, a screw lifting system, a constant temperature control system, a cone connecting rod assembly, and a displacement measurement system. 2. Utilizing computer control technology, the cone penetration test is automatically completed, and the test results are displayed automatically upon completion of the experiment. 3. The touch screen human-machine interface is adopted, featuring intuitive display, rich content, and convenient operation. 4. The automatic lifting structure ensures smooth lifting and accurate positioning. It adopts a rotary encoder switch and a lifting button switch, and utilizes a stepper motor to drive the screw slider, achieving high-precision adjustment for rapid lifting and lowering through jogging. 5. This instrument integrates a thermostatic water bath inside, featuring constant temperature control functions for both cooling and heating. It adopts semiconductor cooling technology and PID control algorithm, achieving a temperature control accuracy of ±0.1℃, meeting the temperature requirements stipulated in national standards; 6. The designed cold light source employs cone illumination technology, making it convenient and accurate to illuminate cones. The cone rod assembly mechanism is of high precision, quick to disassemble, and strictly complies with national standard specifications. 7. The system can store up to 200 sets of data, which can be directly viewed on the touch screen, or exported via a USB flash drive for data transfer. Additionally, the system comes with a built-in 485 interface (MODBUS protocol), enabling real-time data networking. 8. Self-developed computer control software enables communication with the computer and facilitates cone penetration testing. 9. Various specifications of grease tamper (also known as working device) and desktop micro printer can be selected according to user needs. Technical Specifications: 1. Measurement range: 0-660 cone penetration; 2. Constant temperature water bath: A. Temperature measurement range: 0.00~50.00℃; B. Temperature control range: Low temperature: 20℃ lower than the ambient temperature; High temperature: 50.00℃; C. Display resolution: 0.01℃; D. Temperature control accuracy: ≤±0.1℃; 3. Time control: A. Time display and control: 0-60 seconds (arbitrarily settable); B. Display resolution: 0.1 second; C. Time control accuracy ≤±0.1 S; 4. Displacement Equipped with a high-precision LVDT displacement sensor and featuring a split-type structure, there is no friction when the cone rod falls; A. Measurement range: 0-66mm; B. Display resolution: 0.01mm (0.1 cone penetration); C. Relative displacement accuracy: ≤±0.1mm; 5. Data storage: 200 sets; 6. Standard cone (full cone) total cone mass: 102.5g±0.05g, cone rod mass: 47.5 g±0.05g, meeting the requirements of GB269 standard; a tamping device (also known as a working tool) can also be optionally equipped. 7. Overall dimensions: 390mm × 310mm × 575mm (length × width × height); 8. Operating power supply: 220±10%VAC/50Hz; 9. Total power: maximum 350W; 10. Net weight of the whole machine: 12.5Kg;
HSY-23512D Natural Gas Industry Thread Compound Cone Penetration Tester Introduction: This instrument is designed and manufactured in accordance with the technical requirements and relevant regulations specified in the Chinese standards "GB/T 23512-2015 Petroleum and Natural Gas Industries - Evaluation and Testing of Thread Compound for Casing, Tubing, Line Pipe, and Drill Stem Elements" and "GB/T269 Method for Determining Cone Penetration of Lubricating Greases and Petroleum Jels". It is primarily suitable for testing the cone penetration of thread compound. The working cone penetration is an indicator of the consistency (hardness) of thread compound. The cone penetration values of thread compound at 25 degrees and -7 degrees should meet the requirements specified in the standard. This instrument can also be used, with additional accessories, for testing materials such as solid fine particles, powders, colloids, frozen bodies, as well as food raw materials such as cheese, sugar gum, butter, margarine, cream, and fermented bodies. It finds wide applications in the food industry, transportation and highway engineering, and other industrial sectors.
