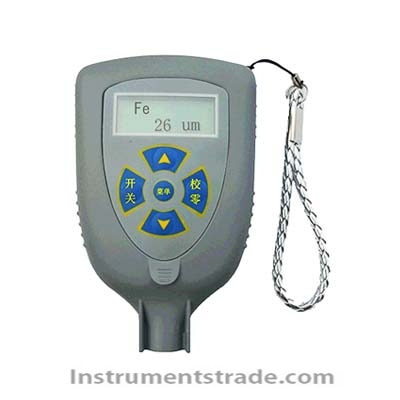

HS2200 Coating Thickness Gauge Introduction: The coating thickness gauge adopts the magnetic thickness measurement method, and the HS2200 coating thickness gauge non destructively measures the thickness of non-magnetic coatings (such as aluminum, chromium, copper, enamel, rubber, paint, etc.) on magnetic metal substrates (such as steel, iron, alloys, and hard magnetic steel). The HS2200 coating thickness gauge can be widely used in inspection fields such as electroplating, anti-corrosion, aerospace, chemical, automotive, shipbuilding, light industry, and commercial inspection. characteristic: 1. Fast measurement speed 2. High precision 3. Good stability 4. Warranty for 3 years 5. Regular use does not require calibration 6. Low price Technical parameters: Operating environment temperature: 0-40 ℃ Power supply: 3V nickel hydrogen battery Dimensions: 120 × 80 × 30mm Weight: 200g Measurement range: 0-1250 μ m Measurement error: (2% H+1) two-point calibration accuracy ± 1% major function Two calibration methods: one point calibration and two-point calibration Display resolution: 1 μ m Storage: Store 100 pieces of data Statistics: Mean (MEAN), Maximum (MAX), Minimum (MIN), Number of Tests (NO), Standard Deviation (S.DEV) There are two measurement methods: continuous measurement and single measurement There are two shutdown methods: manual shutdown and automatic shutdown There is a deletion function: it can delete gross errors and incorrect settings; There is music prompt: provide prompts for operations at any time There is a power undervoltage indicator function: backlight setting Error notification function Basic configuration: host, probe, 3 calibration plates, substrate, instruction manual, etc
Introduction: The coating thickness gauge adopts the magnetic thickness measurement method, and the HS2200 coating thickness gauge non destructively measures the thickness of non-magnetic coatings (such as aluminum, chromium, copper, enamel, rubber, paint, etc.) on magnetic metal substrates (such as steel, iron, alloys, and hard magnetic steel). The HS2200 coating thickness gauge can be widely used in inspection fields such as electroplating, anti-corrosion, aerospace, chemical, automotive, shipbuilding, light industry, and commercial inspection.
