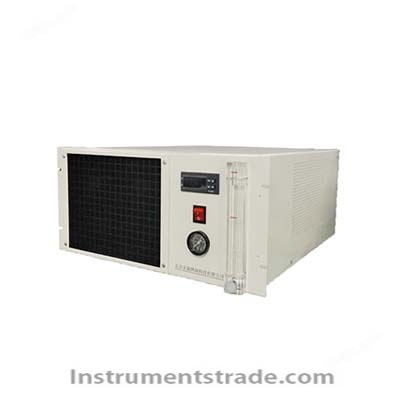

HS-JC series 5U rack type circulating water cooler

Product ID:SYZLlshj016

Price: Please inquire PDF Format
Supply Ability:50 SETS/MONTH
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Brand NameHCBY
    Payment TermsT/T, paypal
    Model NumberHS-JC
    Introduction:
    The HS-JC Series 5U Rack Circulating Water Cooler is a chiller that can be built into the cabinet or used separately. It adopts 220V power supply (can be customized according to customers' requirements), the target water temperature can be set within the range of 10~35°C, the constant temperature effect is ±0.5°C, and the temperature display accuracy is 0.1°C. This product is suitable for 19-inch cabinets. This product is widely used in medical, laser cooling, medical nuclear magnetic, laser display, molecular pump cooling, X-RAY cooling, LED cooling, server cooling, electronic equipment, ultraviolet germicidal lamps, laser cutting machines, Welding machine, professional equipment and equipment temperature control, scientific experiments and many other fields.
     Features:
     1. Micro compressor / well-known brand compressor, ultra-thin design, can save installation space;
    2. Install shock absorption and noise reduction device, low noise, low vibration and environmental friendliness;
    3. Full Chinese LCD display for easy operation;
    4. Perfect fault alarm system;
     5. The inlet and outlet are convenient for connection with the instrument;
     6. It can be used to install the slide rail into the cabinet or as a stand-alone chiller;
     Optional configuration:
        Measuring and monitoring water conductivity
        Ambient temperature sensor: measure and display the thermal load of the cooled load (laser) in real time;
        Heating function: preheating function when starting at low ambient temperature, heating power is 500~1000W;
        Water quality protection devices: filters, exchange resins, etc.
         Air filter: The air filter of the air inlet of the condenser is suitable for outdoor or dusty occasions.
    Technical Parameters:
    Model: HS-JC800
    Voltage : V220
    Cooling capacity W: 800
    Temperature control range °C: 10-35
    Temperature control accuracy °C: ±0.5
    Refrigerant: R134a
    Pump flow L/min: 3-10
     Pump pressure Bar: 4.5
     Water tank volume L: 4
     Interface size mm: 10
    Dimensions: 5U
