HR-90 magnetic positioning pipeline crawler

Product ID：WWts033

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberHR-90

Brand NameHUARILIXUE

Payment TermsTT，PAYPAL，Alibaba.com Pay

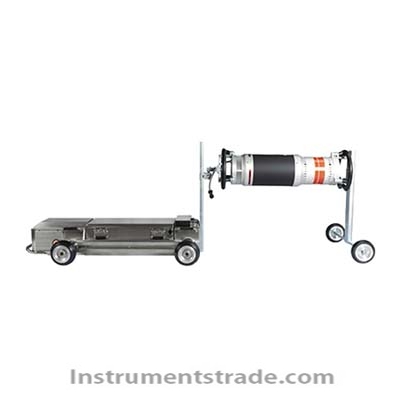

HR-90 magnetic positioning pipeline crawler
Introduction:
The domestically pioneered "magnetic positioning pipeline crawler" was awarded the National Torch Plan Industrialization Demonstration Project and was designated as a special crawler for the West East Gas Pipeline by the National Pipeline Bureau in 2001. For over 20 years, the HR series pipeline crawlers have continuously introduced new processes, materials, and technologies, taking the lead in adopting adjustable pressure pipe heads and magnetic positioning technology. The new generation of intelligent crawlers has various protection functions, including Chinese and English human-machine interfaces, high-power debugging modules, and intelligent positioning technology.
The equipment mainly consists of a tractor, an X-ray generator, a magnetic positioning command device, a receiver, and accessories. It is an automated radiation generation device, which is driven by the tractor to travel inside the pipeline. Special film and marks are affixed to the joint weld outside the pipeline. With the cooperation of the external remote control device of the pipeline, it can be positioned and exposed inside the pipeline, achieving non-destructive testing of the pipeline joint weld.
characteristic:
1.Adopting new intelligent positioning technology, high-precision positioning can also be achieved in slopes and smooth pipelines.
2.Use a harmless magnetic command device to remotely control the climbing car outside the pipeline, with strong penetration ability and high positioning accuracy.
3.Chinese and English operation interface, easy to operate.
4.The traction motor is driven by a high-power motor speed regulation module, and a backup emergency return circuit is built in.
5.Complete fault recognition function, capable of diagnosing various faults of the pipe head and tractor.
Technical parameters:

parameter	HR-90	HR-91	HR-92	HR-96
Applicable pipe inner diameter mm	600-1400	190-400	350-800	600-1400
Adapt to wall thickness mm	≤40	≤15	≤33	≤45
Total weight of crawler (including pipe head) kg	≤160	≤55	≤135	≤125
Crawler total length (including bracket) mm	1250	1150	1250	1250
Max Gradeability	40°	15°	40°	40°
Walking speed m/min	18	18	16	18
Turning radius	≥7D	≥7D	≥7D	≥7D
Crawling distance (km)	＞4	＞2	＞4	＞8
Drive mode	4 rounds	2 rounds	4 rounds	4 rounds
X-ray machine	3005	1605	2005，2505	300PC
Focus size acc.IEC336	1.0-3.5	1.0-3.5	1.0-3.5	0.4-4.0
Ray angle	30°×360°	30°×360°	30°×360°	40°×360°
Total exposure time min	＞60	＞40	＞60	＞90
Positioning accuracy mm	±5	±3	±4	±5
locate mode	magnetic positioning	magnetic positioning	magnetic positioning	magnetic positioning
Operating environment temperature ℃	-20~70	-20~65	-20~70	-30~70
Lead acid batteries for power supply	10 sections of 21Ah	Section 8 7.2Ah	8 sections of 21Ah	45AH 120V lithium battery
Weight of battery box kg	71	23	61	Lithium battery 36

Introduction:
The domestically pioneered "magnetic positioning pipeline crawler" was awarded the National Torch Plan Industrialization Demonstration Project and was designated as a special crawler for the West East Gas Pipeline by the National Pipeline Bureau in 2001. For over 20 years, the HR series pipeline crawlers have continuously introduced new processes, materials, and technologies, taking the lead in adopting adjustable pressure pipe heads and magnetic positioning technology. The new generation of intelligent crawlers has various protection functions, including Chinese and English human-machine interfaces, high-power debugging modules, and intelligent positioning technology.
The equipment mainly consists of a tractor, an X-ray generator, a magnetic positioning command device, a receiver, and accessories. It is an automated radiation generation device, which is driven by the tractor to travel inside the pipeline. Special film and marks are affixed to the joint weld outside the pipeline. With the cooperation of the external remote control device of the pipeline, it can be positioned and exposed inside the pipeline, achieving non-destructive testing of the pipeline joint weld.
