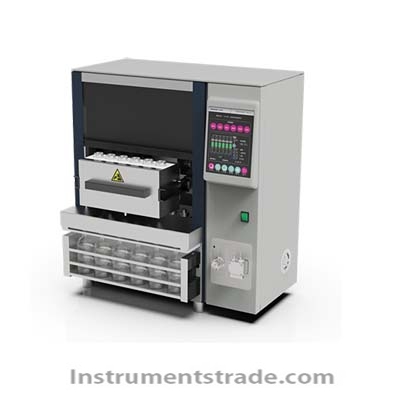

HPSE-06S Accelerated Solvent Extraction System

Position: Home > > Lab general equipment > Separation / extraction equipment > Solvent extraction > HPSE-06S Accelerated Solvent Extraction System

HPSE-06S Accelerated Solvent Extraction System

Product ID：SYFLCQrjcq044

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberHPSE-06S

Brand NameSZHUKE

Payment TermsTT，PAYPAL，Alibaba.com Pay

HPSE-06S Accelerated Solvent Extraction System
Product Overview
The HPSE-06S Accelerated Solvent Extraction System is a high-efficiency sample preparation instrument designed for accelerated solvent extraction under elevated temperature and pressure conditions. It adopts a six-channel parallel extraction configuration, allowing six samples to be processed simultaneously under the same experimental conditions.
The system combines automatic solvent delivery, temperature control, pressure monitoring, programmable solvent mixing, extraction, collection, and automatic cleaning into an integrated workflow. It is designed to improve extraction efficiency, reproducibility, and laboratory automation compared with conventional solvent extraction procedures.
With a working pressure of up to 20 MPa, an operating temperature range from room temperature to approximately 210°C, six independent extraction channels, and a four-channel solvent proportioning system, the HPSE-06S provides flexible extraction conditions for different sample preparation requirements.

Key Features
• Six-Channel Parallel Extraction
Six samples can be extracted simultaneously under identical experimental conditions, significantly improving batch processing efficiency.
• Wide Temperature and Pressure Range
The system supports elevated-temperature and high-pressure extraction conditions, with an operating temperature range from room temperature to 210°C and a working pressure range of up to 20 MPa.
• Fully Enclosed Six-Channel Heating
The heating furnace surrounds all six channels for simultaneous heating, providing faster and more uniform temperature distribution.
• Flexible Extraction Cell Selection
Multiple extraction cell volumes are available to accommodate different sample quantities and extraction requirements. Customized extraction cells are also available.
• High-Pressure Liquid Pump
The high-pressure pump provides a flow range of up to 100 mL/min and automatically adjusts the pumping rate according to the number of active channels and system pressure.
• Four-Channel Solvent Proportioning System
Four solvents can be automatically mixed in user-defined proportions, providing flexible solvent composition control for different extraction methods.
• Independent Pressure Monitoring
Each extraction channel can be independently monitored for pressure, allowing more precise control of extraction conditions.
• Automatic Overpressure Protection
The system integrates pressure control, overpressure protection, and gas-liquid isolation protection to improve operational safety and system stability.
• Online Water Removal and Purification
The collection system supports online water removal and purification to improve the quality of collected extracts.
• Automatic Cleaning Function
Automatic nitrogen purging and solvent flushing functions simplify system cleaning and reduce cross-contamination between extraction batches.
• Intuitive Touchscreen Operation
The high-resolution touchscreen uses a graphical interface to display the extraction process in real time. Chinese and English interfaces are supported.
• Self-Diagnostic Function
The instrument provides system self-diagnosis to help monitor operating status and facilitate routine maintenance.

Working Principle
The HPSE-06S uses accelerated solvent extraction technology, in which elevated temperature and pressure are applied to improve the interaction between the solvent and the sample.
The sample is placed into an extraction cell, after which the selected solvent or automatically prepared solvent mixture is delivered into the extraction cell by the high-pressure liquid pump. The system simultaneously controls temperature and pressure according to the programmed extraction method.
Under elevated temperature and pressure conditions, the solvent can penetrate the sample matrix more effectively, accelerating the transfer of target compounds from the sample into the solvent.
After extraction, the extract is transferred to the collection bottle for subsequent analysis. Automatic nitrogen purging and solvent flushing can be used to clean the extraction system between batches.

Technical Specifications

Parameter	Specification
Number of Channels	6
Liquid Pump Flow Rate	1–100 mL/min
Flow Accuracy	±2%
Extraction Cell Volumes	10, 20, 40, 60, 80, 100, 120 mL; Customizable
Pressure Range	30–150 bar; Independent pressure measurement for each channel
Pressure Accuracy	±5 bar
Collection Bottle Volumes	60, 150, 200, 250 mL; Customizable
Temperature Range	Room Temperature–200°C
Temperature Control Accuracy	±2°C
Solvent Proportioning Channels	4
Solvent Mixing Accuracy	±2%
Nitrogen Inlet Pressure	6–10 bar
Dimensions (L × W × H)	690 × 535 × 750 mm
Weight	95 kg
Power Supply	220 VAC
Frequency	50/60 Hz
Maximum Power	1800 W, 15 A
Operating Environment	Indoor Use
Operating Temperature	5–45°C

Note: The supplied product information states a maximum working temperature of 210°C in the functional description and 200°C in the technical specification table. The technical specification should be confirmed with the manufacturer before final publication.

Applications
The HPSE-06S is suitable for accelerated solvent extraction and automated sample preparation in laboratory analysis.
Typical applications include:
• Environmental sample extraction
• Soil and sediment analysis
• Food and agricultural product analysis
• Pharmaceutical sample preparation
• Chemical analysis
• Natural product extraction
• Organic compound extraction
• Residue analysis
• Laboratory sample pretreatment
• Research and analytical laboratories

Application Scenarios
Environmental Analysis
The six-channel parallel configuration enables efficient batch extraction of soil, sediment, and other environmental samples prior to instrumental analysis.
Food and Agricultural Testing
The HPSE-06S can be used for extracting target compounds from complex food and agricultural matrices, helping improve sample preparation throughput.
Pharmaceutical and Chemical Research
Programmable temperature, pressure, flow rate, and solvent composition provide flexible extraction conditions for different pharmaceutical and chemical samples.
High-Throughput Laboratory Sample Preparation
Six samples can be processed simultaneously, making the system suitable for laboratories that routinely perform large numbers of solvent extraction procedures.

Advantages Over Conventional Solvent Extraction

Comparison	Conventional Solvent Extraction	HPSE-06S Accelerated Solvent Extraction System
Sample Processing	Usually sequential or manually operated	6-channel parallel extraction
Extraction Conditions	Manual or separately controlled	Integrated temperature and pressure control
Solvent Addition	Manual	High-pressure automatic pump
Solvent Mixing	Manual preparation	4-channel automatic proportioning
Pressure Monitoring	Limited	Independent monitoring by channel
Temperature Control	Conventional heating	Enclosed multi-channel heating
Extraction Efficiency	Relatively low	Accelerated extraction under elevated temperature and pressure
Cleaning	Manual	Automatic nitrogen and solvent flushing
Operation	More manual intervention	Graphical touchscreen control
Batch Consistency	Operator dependent	Improved through programmable parameters

FAQ
What is the HPSE-06S used for?
The HPSE-06S is an accelerated solvent extraction system used for laboratory sample preparation and the extraction of target compounds from various sample matrices.
How many samples can be processed simultaneously?
The HPSE-06S has six independent extraction channels, allowing six samples to be processed in parallel.
What is accelerated solvent extraction?
Accelerated solvent extraction uses elevated temperature and pressure to enhance solvent penetration and mass transfer, thereby reducing extraction time and improving extraction efficiency.
Can different solvents be mixed automatically?
Yes. The system features a four-channel solvent proportioning system that can automatically mix up to four solvents according to user-defined ratios.
Can the extraction pressure be controlled independently?
Yes. Each extraction channel has independent pressure measurement, allowing the operating pressure of individual channels to be monitored.
What extraction cell volumes are available?
The supplied specifications list extraction cell volumes of 10, 20, 40, 60, 80, 100, and 120 mL, with customized volumes available.
Does the HPSE-06S have an automatic cleaning function?
Yes. The system supports automatic nitrogen purging and solvent flushing to simplify cleaning after extraction.
What safety functions are provided?
The instrument incorporates a pressure control unit, overpressure protection system, and gas-liquid isolation protection to improve operational safety and reliability.
What are the main advantages of the HPSE-06S?
Its main advantages include six-channel parallel extraction, high-pressure solvent delivery, programmable temperature and pressure control, four-solvent automatic mixing, independent pressure monitoring, automatic cleaning, and graphical touchscreen operation.
