HP350P Plant Light Analyzer and PPFD Meter

Position: Home > > Life science instrument and equipment > Plant physiological and ecological instrument > Other plant instruments > HP350P Plant Light Analyzer and PPFD Meter

HP350P Plant Light Analyzer and PPFD Meter

Product ID：SHZWqtzwyq009

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberHP350P

Brand NameHZSHUANGSE

Payment TermsTT，PAYPAL，Alibaba.com Pay

HP350P Plant Light Analyzer and PPFD Meter

Product Introduction

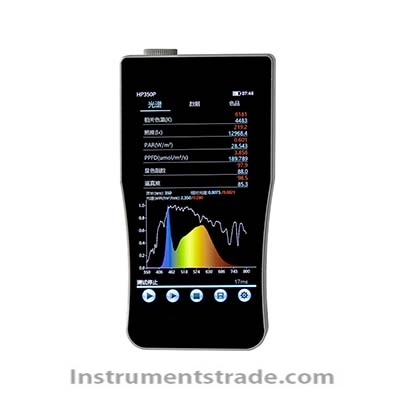

The HP350P Plant Light Analyzer is a portable spectrometer designed to measure the optical and photosynthetic characteristics of plant growth lights. Using advanced micro-spectrometer technology and a high-precision CCD sensor, it measures key parameters for evaluating grow light performance and plant lighting conditions.
The HP350P measures PPFD, PAR, photosynthetic radiation, chlorophyll-weighted light, illuminance, irradiance, far-red irradiance, chromaticity coordinates, correlated color temperature (CCT), and color rendering index (CRI).
With a 5-inch color touchscreen, USB computer connectivity, and onboard data storage, the HP350P is suitable for grow light manufacturers, greenhouse operators, hydroponic farms, and horticultural lighting research.

Performance Features
• Advanced micro-spectrometer: Uses a high-precision CCD sensor for spectral measurement.
• Photosynthetic light analysis: Measures PPFD, PAR, photosynthetic radiation, and far-red irradiance.
• Comprehensive optical testing: Integrates spectral, illuminance, and color measurement functions.
• High-resolution display: Features a 5-inch IPS color touchscreen with graphical interfaces.
• Spectral visualization: Displays spectral waveforms and chromaticity tolerance ellipse diagrams.
• Computer software support: Connects to a computer via USB for data analysis and test report printing.
• Large data storage: Includes an 8 GB storage card with capacity for more than 30,000 records.
• Extended battery life: A 4,000 mAh lithium battery supports more than 20 hours of continuous operation per charge, according to the supplied specifications.

Working Principle
The HP350P uses a long-focal-length, asymmetric CT spectroscopic system to separate incoming light into its spectral components. A high-precision CCD sensor detects the spectral distribution across the specified wavelength range of 350–800 nm.
The instrument processes the spectral data to calculate optical and colorimetric parameters, including illuminance, chromaticity coordinates, correlated color temperature, and color rendering index. It also provides plant-lighting metrics such as PPFD and PAR to support the evaluation of photosynthetic lighting conditions.
Measurement results can be displayed on the touchscreen, stored internally, or transferred to a computer for analysis and report generation.

Technical Specifications

Parameter	Specification
Model	HP350P
Instrument type	Plant light analyzer / PPFD spectrometer
Spectroscopic system	Long-focal-length asymmetric CT spectroscopic system
Detector	High-precision CCD
Spectral bandwidth (FWHM)	2 nm
Wavelength measurement range	350–800 nm
Wavelength accuracy	±0.5 nm
Illuminance measurement range	1–2,000,000 lux
Illuminance resolution	1 lux
Chromaticity coordinate accuracy	±0.0025
Chromaticity coordinate resolution	0.0001
Correlated color temperature range	1,000–100,000 K
CCT resolution	1 K
Color rendering index	R1–R15
Total color difference accuracy	Within ±0.2 under standard illuminant A
Photosynthetic parameters	PPFD, PAR, photosynthetic radiation, chlorophyll-weighted light
Far-red measurement	Far-red irradiance
Other measurement parameters	Irradiance, illuminance, chromaticity coordinates, CCT, CRI
Display	5-inch IPS high-definition color LCD touchscreen
Computer connection	USB
Data storage	Standard 8 GB storage card
Storage capacity	More than 30,000 records
Battery capacity	4,000 mAh lithium battery
Continuous operating time	More than 20 hours per charge

Application Scenarios
• Grow light manufacturing: Evaluating the spectral output and photosynthetic performance of LED grow lights and other horticultural lighting products.
• Greenhouse lighting: Monitoring light conditions to support plant growth management.
• Hydroponic farming: Measuring PPFD and PAR in indoor cultivation systems.
• Vertical farming: Evaluating light distribution and spectral characteristics in controlled-environment agriculture.
• Horticultural research: Studying spectral composition, color characteristics, and photosynthetic lighting parameters.
• Lighting quality control: Recording spectral measurements and generating computer-based reports for product evaluation.

HP350P vs. Conventional Light Measurement Instruments

Comparison Item	HP350P Plant Light Analyzer	Conventional Illuminance Meter
Primary purpose	Plant lighting and comprehensive optical analysis	Illuminance measurement
PPFD and PAR	Supported according to instrument configuration	Usually not directly measured
Spectral measurement	350–800 nm	Generally not available
Spectral bandwidth	2 nm	Not applicable to basic illuminance meters
Wavelength accuracy	±0.5 nm	Usually not applicable
Color measurement	Chromaticity, CCT, and CRI	Depends on instrument
Far-red irradiance	Listed as a measurement parameter; confirm wavelength coverage	Generally not available
Data storage	More than 30,000 records	Depends on model
Computer connectivity	USB with software support	Depends on model
Typical applications	Grow light evaluation, greenhouse monitoring, and horticultural research	General illuminance checks

Frequently Asked Questions
Q1: What is the HP350P Plant Light Analyzer used for?
It evaluates plant growth lighting by measuring photosynthetic parameters, spectral characteristics, illuminance, and colorimetric properties.
Q2: Can the HP350P measure PPFD and PAR?
Yes. PPFD and PAR are listed among its measurement parameters. Confirm the available calculation modes and measurement units with the manufacturer.
Q3: What is the wavelength measurement range?
The specified wavelength range is 350–800 nm, with wavelength accuracy of ±0.5 nm.
Q4: What is the spectral bandwidth?
The stated spectral bandwidth is 2 nm FWHM.
Q5: Can the instrument measure far-red light?
Far-red irradiance is listed as a supported parameter. However, the specified wavelength range ends at 800 nm, so the manufacturer should confirm the exact far-red wavelength band and measurement capability.
Q6: Can test reports be generated on a computer?
Yes. The instrument connects to a computer through USB and includes software for data processing and test report printing.
Q7: How much data can the HP350P store?
It includes an 8 GB storage card with a stated capacity of more than 30,000 records.
Q8: How long can it operate on a full charge?
The supplied specifications state more than 20 hours of continuous operation with the built-in 4,000 mAh lithium battery.
Q9: Is the HP350P suitable for greenhouse and hydroponic applications?
Yes. It is designed for plant growth lighting evaluation and can support light monitoring in greenhouses, hydroponic systems, indoor farms, and horticultural research environments.
