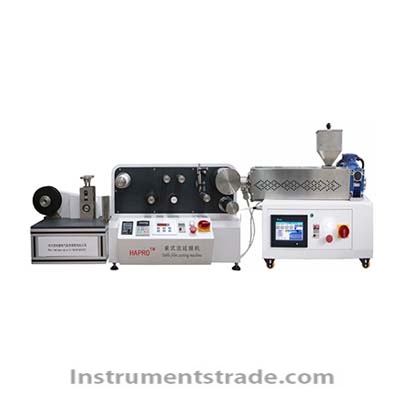

HP-LYM desktop cast film machine

Product ID：HZXSzsj013

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberHP-LYM

Brand NameHEBHAPU

Payment TermsTT，PAYPAL，Alibaba.com Pay

HP-LYMdesktop cast film machine
Introduction:
Desktop extruder paired with desktop casting film machine, this equipment adopts precision extrusion and high-performance casting forming technology, suitable for casting film forming of commonly used polymer materials such as PE, PP, PS, ABS, PVC, PET, PC, etc. This equipment can be equipped with a vision system to realize the expanded functions of raw material dispersion detection and gel spot, fish eye, black spot and other film quality detection. It is an ideal experimental equipment for high-precision and high-performance film forming.
Technical parameters:
1.Table type single screw extruder

Control Interface	Touch Screen
Motor Power	1.5 kW
Screw diameter	16 mm
Draw Ratio of Screw	25 :1
Screw compression ratio	2.4:1 or 3.6:1
screw speed	100 r/min
Heating method	Electric heating, 4 zones
Highest temperature	350℃
Measurement range of melt pressure	0.1 ~ 100 Mpa

2.Table type cast film machine

Casting film mold	150×1 mm,1.6 kW (0-2 mm thickness adjustable)
Film thickness	0.02-0.5mm
Film formation width	70mm
Casting speed regulation	0-110mm/s
Casting roll diameter	140mm
Roll up method	tension control
Cooling method	water-cooling

Introduction:
Desktop extruder paired with desktop casting film machine, this equipment adopts precision extrusion and high-performance casting forming technology, suitable for casting film forming of commonly used polymer materials such as PE, PP, PS, ABS, PVC, PET, PC, etc. This equipment can be equipped with a vision system to realize the expanded functions of raw material dispersion detection and gel spot, fish eye, black spot and other film quality detection. It is an ideal experimental equipment for high-precision and high-performance film forming.
