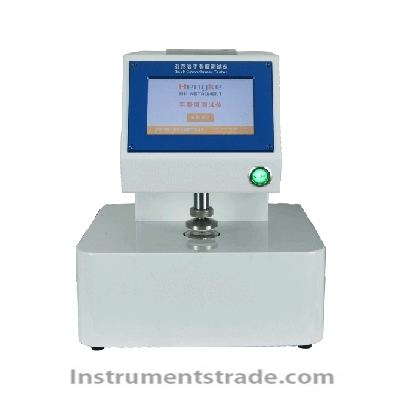

HK BEKK Automatic Smoothness Tester

Position: Home > > Industry specific instrument > Special equipment for packaging industry > Board smoothness tester > HK BEKK Automatic Smoothness Tester

HK BEKK Automatic Smoothness Tester

Product ID：HZBZzbphd010

Price: Please inquire PDF Format

Supply Ability:60 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberHK BEKK

Brand NameDGHENGKE

Payment TermsTT，PAYPAL，Alibaba.com Pay

HK BEKK Automatic Smoothness Tester

Product Introduction
The HK BEKK Automatic Smoothness Tester is an intelligent paper and paperboard testing instrument designed according to the internationally recognized Bekk smoothness testing principle.
Unlike traditional Bekk smoothness testers that use a manual lever and weight mechanism to apply pressure, the HK BEKK adopts a high-precision force sensor and stepper motor to automatically apply the standard test pressure. This innovative loading system significantly reduces the instrument's size and weight while improving pressure accuracy and measurement stability.
The instrument is designed for measuring the surface smoothness of paper and paperboard and is an ideal testing solution for the paper manufacturing, packaging, printing, quality inspection and scientific research industries.

Key Features
• Based on the internationally recognized Bekk smoothness testing principle
• Fully automatic operation for convenient paper smoothness testing
• One-button testing without manual pressure adjustment
• High-precision force sensor for accurate pressure loading
• Stepper motor provides smooth and impact-free pressure application
• Standard test pressure accuracy up to 100 ± 0.5 kPa
• Eliminates sample impact caused by traditional weight-loading mechanisms
• More compact and lightweight than conventional lever-and-weight Bekk testers
• Stable pressure application independent of sample thickness changes
• Avoids pressure errors caused by spring fatigue
• Three measurement ranges for different smoothness levels
• Suitable for paper and paperboard quality inspection
• Simple operation and easy-to-understand test procedure

Working Principle
The HK BEKK Automatic Smoothness Tester measures paper surface smoothness according to the Bekk method.
During testing, a paper or paperboard specimen is placed between the test surfaces. The instrument uses a stepper motor and precision force sensor to automatically apply the specified test pressure.
After the test pressure is stabilized, a vacuum system creates a pressure difference between the test chamber and the sample surface. The instrument measures the time required for the pressure to change between specified vacuum levels.
The measured time, expressed in seconds, is used as the Bekk smoothness value. Generally, a longer measurement time indicates a smoother paper surface because the smoother surface provides better sealing and slower air leakage.
The instrument automatically controls the pressure loading and measurement process, reducing operator intervention and improving test consistency.

Innovative Pressure Loading System
A major advantage of the HK BEKK is its precision sensor-based pressure loading system.
Compared with traditional weight loading
Traditional Bekk instruments use a weight or lever-and-weight mechanism. When the weight is applied, the test specimen may experience a sudden mechanical impact, potentially affecting the sample and measurement result.
Compared with spring loading
Some automatic smoothness testers use spring-based pressure structures. Spring fatigue can cause pressure deviations over time. In addition, spring pressure may vary with specimen thickness.
HK BEKK Solution
The HK BEKK uses a stepper motor combined with a high-precision force sensor to provide controlled and stable pressure loading.
This design provides:
• Smooth pressure application
• No sudden impact on the specimen
• More accurate test pressure
• Reduced influence from sample thickness
• Improved long-term measurement stability

One-Button Automatic Testing
The HK BEKK is designed for simple operation.
Users do not need to manually adjust the test pressure or perform complicated setup procedures. After placing the specimen, the test can be initiated with one button.
The automatic system controls the pressure application and timing process, making the instrument particularly suitable for routine quality control and high-volume paper testing.

Technical Parameters

Parameter	Specification
Product Name	HK BEKK Automatic Smoothness Tester
Test Method	Bekk Smoothness Method
Application	Paper and paperboard surface smoothness
Test Area	10 ± 0.05 cm²
Measuring Range	1–9999 s
Measuring Ranges	1–15 s / 15–300 s / 300–9999 s
Large Vacuum Volume	380 ± 1 mL
Small Vacuum Volume	38 ± 1 mL
Test Pressure	100 ± 2 kPa
Pressure Loading Accuracy	100 ± 0.5 kPa
Timing Error	≤1 s at 1000 s
Pressure Loading	Stepper motor + precision force sensor
Operation	One-button automatic testing
Main Test Material	Paper and paperboard

Application Scenarios
The HK BEKK Automatic Smoothness Tester is suitable for:
• Paper mills
• Paperboard manufacturers
• Packaging material manufacturers
• Printing companies
• Printing material inspection
• Paper quality control
• Packaging quality control
• Commercial inspection laboratories
• Research institutions
• Universities and testing laboratories
• Paper and paperboard product development
It can be used for routine quality control as well as laboratory research where reliable paper surface smoothness data is required.

HK BEKK vs Traditional Bekk Smoothness Tester

Feature	HK BEKK Automatic Smoothness Tester	Traditional Bekk Smoothness Tester
Pressure Loading	Stepper motor + force sensor	Manual lever and weight
Operation	One-button automatic	Manual operation
Pressure Application	Smooth and controlled	May cause mechanical impact
Pressure Accuracy	100 ± 0.5 kPa	Depends on mechanical system
Sample Impact	Minimized	Possible
Pressure Stability	High	Depends on mechanical condition
Influence of Sample Thickness	Reduced	More significant
Pressure Fatigue	No spring fatigue issue	Mechanical wear/weight system
Measurement Range	1–9999 s	Depends on model
Instrument Design	Compact and lightweight	Generally larger and heavier
Operator Workload	Low	Higher
Routine QC	Highly suitable	Suitable

Why Choose HK BEKK?
The HK BEKK Automatic Smoothness Tester combines the internationally recognized Bekk smoothness testing principle with modern automatic pressure control technology.
Its stepper motor and high-precision force sensor provide smooth, accurate and impact-free pressure loading, avoiding common problems associated with traditional weight mechanisms and spring-based automatic systems.
With one-button automatic testing, three measurement ranges and reliable vacuum measurement, the HK BEKK provides an efficient solution for paper and paperboard smoothness testing, particularly for manufacturers and laboratories requiring stable and repeatable quality control.

FAQ
1. What is the HK BEKK Automatic Smoothness Tester used for?
It is used to measure the surface smoothness of paper and paperboard using the Bekk smoothness testing principle.
2. What is the Bekk smoothness test?
The Bekk method evaluates paper surface smoothness based on the time required for air to pass through the contact interface between the specimen and the test surface under controlled vacuum conditions.
3. What is the measuring range?
The instrument covers 1–9999 seconds, divided into three ranges: 1–15 s, 15–300 s and 300–9999 s.
4. How is test pressure applied?
The HK BEKK uses a stepper motor and high-precision force sensor to automatically apply the standard test pressure.
5. What is the test pressure?
The standard test pressure is 100 ± 2 kPa, with pressure loading accuracy of 100 ± 0.5 kPa.
6. Does the instrument require manual pressure adjustment?
No. The automatic pressure loading system eliminates the need for manual pressure adjustment, and the test can be performed using a one-button operation.
7. What are the advantages of sensor-based pressure loading?
It provides smoother and more accurate pressure application while minimizing sample impact and reducing pressure variation associated with specimen thickness.
8. Can it be used for paperboard?
Yes. The instrument is designed for both paper and paperboard smoothness testing.
9. Who can use the HK BEKK?
It is suitable for paper mills, packaging manufacturers, printing companies, inspection laboratories, research institutions and quality control departments.
