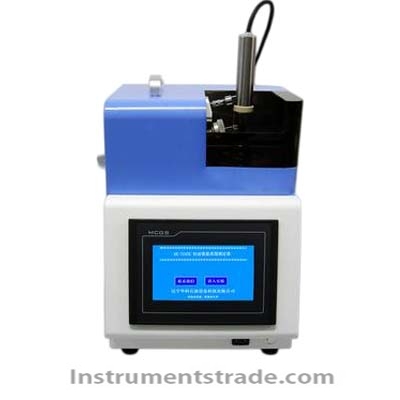

HK-7345K Rapid Micro Distillation Tester

Position: Home > > Industry specific instrument > Oil special analytical instrument > Distillation apparatus/distillation gauge > HK-7345K Rapid Micro Distillation Tester

HK-7345K Rapid Micro Distillation Tester

Product ID：HZSYzly0054

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberHK-7345K

Brand NameLNHUANKE

Payment TermsTT，PAYPAL，Alibaba.com Pay

HK-7345K Rapid Micro Distillation Tester
Product Overview
The HK-7345K Rapid Micro Distillation Tester is a fully automatic petroleum distillation analyzer designed in accordance with NB/SH/T 6071 Determination of Atmospheric Distillation Characteristics of Petroleum Products—Micro Distillation Method and ASTM D7345.
The instrument is suitable for determining the distillation characteristics of gasoline, diesel fuel, aviation gasoline, and jet fuels using only 10 mL of sample. A complete distillation test is finished in 15 minutes, providing results equivalent to those obtained by GB/T 6536 and ASTM D86 while significantly reducing sample consumption and testing time.
Featuring a 7-inch color touchscreen, intelligent automatic operation, built-in pressure and temperature compensation, comprehensive safety protection, and LIMS connectivity, the HK-7345K is an ideal solution for modern petroleum laboratories requiring high efficiency and reliable analytical performance.

Features
●Fully compliant with ASTM D7345 and NB/SH/T 6071.
●Distillation results highly consistent with ASTM D86 and GB/T 6536.
●Only 10 mL of sample required for each test.
●Complete analysis in 15 minutes or less.
●7-inch color touchscreen with 800 × 480 resolution.
●User-friendly operating system with one-touch automatic testing.
●Fully automatic test execution with automatic result display, storage, retrieval, and export.
●Compact instrument with automatic furnace lifting and no manual intervention.
●Physical distillation method ensures high measurement accuracy.
●Built-in temperature and atmospheric pressure compensation automatically correct results.
●Integrated self-diagnostic system and multiple safety alarms.
●Stores at least 1,000 complete test records.
●Supports RS-232, USB, Ethernet, and parallel interfaces.
●Direct LIMS connectivity for laboratory data management.

Working Principle
The HK-7345K uses the micro distillation method to accurately determine the distillation characteristics of petroleum products.
A 10 mL sample is heated under precisely controlled conditions. During distillation, built-in sensors continuously monitor temperature, pressure, and evaporation progress. The instrument automatically calculates the evaporated volume percentage and corresponding distillation temperatures while applying real-time temperature and barometric pressure corrections. The final distillation curve closely matches results obtained using conventional ASTM D86 atmospheric distillation testing.

Technical Specifications

Parameter	Specification
Model	HK-7345K
Test Method	Micro Distillation Method
Applicable Standards	NB/SH/T 6071, ASTM D7345
Applicable Samples	Gasoline, Diesel, Aviation Gasoline, Jet Fuel
Display	7.0-inch color touchscreen
Screen Resolution	800 × 480
Power Supply	AC 220 V ±22 V, 50 Hz ±5 Hz
Temperature Range	0–400°C
Temperature Resolution	0.1°C
Temperature Sensor	Lightweight RTD with rigid metal protective housing
Pressure Measurement	Built-in flask pressure sensor & atmospheric pressure sensor
Volume Measurement	Software calculation based on evaporation percentage
Heating Element	Lightweight low-voltage heater
Sample Volume	10 mL
Test Time	≤15 minutes
Data Storage	Minimum 1,000 complete test records
Data Interfaces	RS-232, USB, Ethernet, Parallel Port
LIMS Connection	Supported via RS-232 or Ethernet
Power Consumption	300 W
Dimensions (W × D × H)	350 × 330 × 580 mm
Weight	≤15 kg

Typical Applications
The HK-7345K is widely used in:
●Petroleum refinery laboratories
●Fuel quality control laboratories
●Gasoline distillation testing
●Diesel fuel analysis
●Aviation gasoline testing
●Jet fuel quality inspection
●Petrochemical production facilities
●Third-party testing laboratories
●Research institutes
●University laboratories
●Environmental fuel testing
●High-throughput petroleum analysis laboratories

HK-7345K vs Conventional ASTM D86 Distillation Testers

Feature	HK-7345K	Conventional ASTM D86 Tester
Test Standard	ASTM D7345 / NB/SH/T 6071	ASTM D86 / GB/T 6536
Sample Volume	10 mL	100–125 mL
Test Time	≤15 min	45–90 min
Operation	Fully automatic	Semi-automatic or manual
Furnace Movement	Automatic	Manual
Pressure Compensation	Automatic	Usually unavailable
Temperature Compensation	Automatic	Manual correction
Data Storage	≥1000 records	Limited
LIMS Connectivity	Yes	Optional or unavailable
Communication Interfaces	RS-232, USB, Ethernet, Parallel	Usually limited
Repeatability	Excellent	Excellent
Laboratory Efficiency	Very High	Moderate

Frequently Asked Questions (FAQ)
1. Which testing standards does the HK-7345K comply with?
The HK-7345K complies with ASTM D7345 and NB/SH/T 6071, providing micro distillation results equivalent to conventional ASTM D86 and GB/T 6536 testing.
2. What types of samples can be analyzed?
The instrument is suitable for gasoline, diesel fuel, aviation gasoline, jet fuel, and similar petroleum distillates.
3. How much sample is required?
Only 10 mL of sample is required, making it ideal for expensive, limited, or research samples.
4. How long does a complete test take?
A complete distillation analysis requires 15 minutes or less, significantly improving laboratory throughput.
5. Does the instrument automatically compensate for atmospheric pressure?
Yes. Built-in pressure and temperature compensation automatically correct measurement results, ensuring excellent repeatability and reproducibility.
6. Can the HK-7345K connect to a LIMS?
Yes. The instrument supports RS-232 and Ethernet communication for seamless integration with Laboratory Information Management Systems (LIMS), as well as USB and parallel interfaces for data transfer.

Why Choose the HK-7345K Rapid Micro Distillation Tester?
The HK-7345K combines the speed of ASTM D7345 micro distillation with the accuracy of traditional ASTM D86 testing. Its 10 mL sample requirement, 15-minute analysis time, fully automatic operation, intelligent pressure and temperature correction, and LIMS connectivity make it an outstanding choice for modern petroleum laboratories seeking higher productivity, lower operating costs, and reliable distillation analysis. Compared with conventional atmospheric distillation instruments, the HK-7345K delivers faster testing, reduced sample consumption, enhanced automation, and superior data management without compromising analytical accuracy.

Frequently Asked Questions (FAQ)
1. Which testing standards does the HK-7345K comply with?
The HK-7345K complies with ASTM D7345 and NB/SH/T 6071, providing micro distillation results equivalent to conventional ASTM D86 and GB/T 6536 testing.
2. What types of samples can be analyzed?
The instrument is suitable for gasoline, diesel fuel, aviation gasoline, jet fuel, and similar petroleum distillates.
3. How much sample is required?
Only 10 mL of sample is required, making it ideal for expensive, limited, or research samples.
4. How long does a complete test take?
A complete distillation analysis requires 15 minutes or less, significantly improving laboratory throughput.
5. Does the instrument automatically compensate for atmospheric pressure?
Yes. Built-in pressure and temperature compensation automatically correct measurement results, ensuring excellent repeatability and reproducibility.
6. Can the HK-7345K connect to a LIMS?
Yes. The instrument supports RS-232 and Ethernet communication for seamless integration with Laboratory Information Management Systems (LIMS), as well as USB and parallel interfaces for data transfer.
