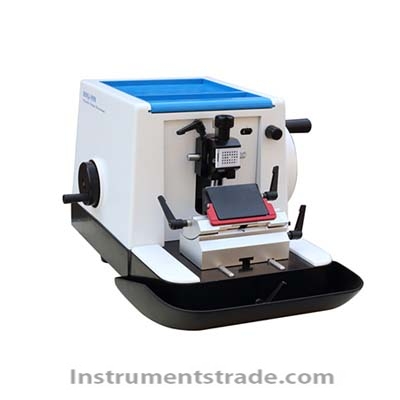

HHQ-3558 Rotary Microtome

Product Introduction
The HHQ-3558 Rotary Microtome is a precision histology tissue sectioning instrument developed for pathology, biomedical research, life sciences, and laboratory applications. Designed based on feedback from pathology experts and years of microtome development experience, the HHQ-3558 combines convenient operation, precise thickness adjustment, and stable sectioning performance.
With a 0–60 μm section thickness range, ±5% sectioning accuracy, and a maximum section size of 50 × 45 mm, this rotary microtome is suitable for routine and research-oriented tissue sectioning. Its small handwheel enables rapid sectioning, while the wide waste tray helps keep the working area clean and organized.

Key Features
• Precision rotary microtome for routine histology and tissue sectioning.
• Section thickness range of 0–60 μm.
• Minimum thickness increment of 1 μm.
• Convenient small handwheel for rapid sectioning.
• Wide waste tray for efficient collection of tissue debris.
• Sectioning accuracy of ±5%.
• Large sample travel range for flexible specimen positioning.
• Knife holder base provides both front/back and left/right adjustment.
• Suitable for tumor, wood, cytology, and frozen sectioning applications.
• Compact design for hospitals, laboratories, research institutes, and educational facilities.

Working Principle
The HHQ-3558 uses a rotary microtome sectioning mechanism. The specimen is securely mounted on the sample holder, while the handwheel drives the specimen through a controlled vertical movement.
Before each sectioning cycle, the thickness adjustment mechanism determines the distance by which the specimen advances toward the cutting blade. As the handwheel rotates, the specimen moves through the knife at a controlled thickness, producing thin and uniform tissue sections for microscopic examination.
The thickness can be adjusted from 0–10 μm in 1 μm increments and from 10–60 μm in 5 μm increments. The adjustable knife holder base allows convenient positioning of the cutting system relative to the specimen.

Technical Parameters

Parameter	Specification
Model	HHQ-3558
Instrument Type	Rotary Microtome
Section Thickness Range	0–60 μm
Trimming Thickness	Continuously adjustable by small handwheel; 1.0–60 μm by graduated knob
Minimum Thickness Increment	1 μm
Thickness Adjustment, 0–10 μm	1 μm increments
Thickness Adjustment, 10–60 μm	5 μm increments
Sectioning Accuracy	±5%
Horizontal Specimen Travel	28 mm
Vertical Specimen Travel	60 mm
Maximum Section Size	50 × 45 mm
Knife Holder Base Travel	Front/Back ±25 mm; Left/Right ±20 mm
Overall Dimensions	460 × 430 × 280 mm

Applications
The HHQ-3558 rotary microtome is widely used in:
• Histopathology: Preparation of tissue sections for microscopic examination.
• Tumor pathology: Sectioning tumor tissue specimens for pathological analysis.
• Cytology: Preparation of thin sections for cellular studies.
• Frozen sectioning: Preparation of frozen tissue samples for rapid examination.
• Biomedical research: Tissue morphology and structural studies.
• Life sciences: Biological tissue preparation and microscopy.
• Wood research: Sectioning wood samples for anatomical and structural analysis.
• Medical education: Histology teaching and laboratory training.
• Veterinary pathology: Tissue section preparation for animal health research.
• Forensic research: Preparation of biological specimens for forensic examination.
It is suitable for hospitals, biomedical institutions, life science laboratories, agricultural and forestry institutions, universities, disease-control organizations, veterinary laboratories, forensic departments, and research institutes.

Comparison: HHQ-3558 vs. Basic Tissue Sectioning Equipment

Feature	HHQ-3558 Rotary Microtome	Basic Tissue Sectioning Equipment
Section Thickness	0–60 μm	Usually more limited
Minimum Increment	1 μm	May be coarser
Sectioning Accuracy	±5%	Varies
Specimen Vertical Travel	60 mm	Typically shorter
Specimen Horizontal Travel	28 mm	Varies
Maximum Section Size	50 × 45 mm	Depends on model
Rapid Sectioning	Small handwheel	Standard/manual operation
Knife Holder Adjustment	±25 mm front/back; ±20 mm left/right	Often limited
Waste Collection	Wide waste tray	Basic or limited
Applications	Histology, pathology, cytology, frozen sections, research	General sectioning

The HHQ-3558 rotary microtome provides controlled thickness adjustment, a wide specimen travel range, and flexible knife positioning, making it a practical choice for laboratories requiring consistent tissue sections for pathology, histology, biomedical research, and microscopy.

Frequently Asked Questions (FAQ)
1. What is the HHQ-3558 rotary microtome used for?
It is mainly used to prepare thin tissue and material sections for microscopic examination in histology, pathology, biomedical research, cytology, and related laboratories.
2. What is the section thickness range?
The HHQ-3558 provides a section thickness range of 0–60 μm.
3. What is the minimum thickness adjustment?
The minimum thickness increment is 1 μm. From 0–10 μm, thickness is adjusted in 1 μm increments; from 10–60 μm, adjustment is in 5 μm increments.
4. What is the sectioning accuracy?
The specified sectioning accuracy is ±5%.
5. Can the HHQ-3558 be used for frozen sections?
Yes. The instrument can be used for frozen sectioning, as well as tumor, cytology, and other tissue sectioning applications.
6. What is the maximum specimen section size?
The maximum sectioning area is 50 × 45 mm.
7. How much can the specimen move?
The specimen has a 28 mm horizontal travel and 60 mm vertical travel, providing flexible positioning during sectioning.
8. What types of samples can be sectioned?
Applications include biological and pathological tissues, tumor specimens, cytological materials, frozen tissues, wood samples, and other specimens suitable for microtome sectioning.
9. Where is the HHQ-3558 commonly used?
It is suitable for hospitals, pathology departments, biomedical and life science laboratories, universities, agricultural and forestry institutions, veterinary laboratories, forensic departments, and research institutes.
