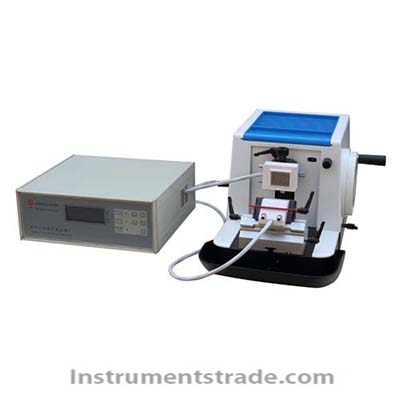

HH-3558C Computerized Rapid Freezing and Paraffin Dual-Purpose Microtome

Product ID：SYZYXJqp035

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberHH-3558C

Brand NameHUAHAIKEJIAO

Payment TermsTT，PAYPAL，Alibaba.com Pay

HH-3558C Computerized Rapid Freezing and Paraffin Dual-Purpose Microtome

Product Overview
The HH-3558C Computerized Rapid Freezing and Paraffin Dual-Purpose Microtome combines the HHQ-3558 computerized microtome with the HH-III intelligent rapid freezing system. It is designed for both rapid frozen tissue sectioning and conventional paraffin sectioning, providing a practical two-in-one solution for histology and clinical pathology laboratories.
The instrument features intelligent LCD display, temperature setting and monitoring, automatic alarms, automatic defrosting, and constant-temperature control. Its rapid cooling system reaches the required sectioning temperature within approximately 4–7 minutes, while the quick-defrost function facilitates fast tissue replacement and continuous operation.

Key Features
• Two-in-one sectioning system: Supports both rapid frozen sections and conventional paraffin sections in one instrument.
• Intelligent temperature control: LCD display provides intuitive monitoring of set and real-time temperatures with automatic constant-temperature control.
• Rapid cooling: The freezing system can reach the required sectioning temperature within approximately 4–7 minutes.
• Automatic defrosting: The freezing stage supports rapid defrosting in approximately 3–5 minutes and automatically resumes cooling afterward.
• Precise sectioning: Section thickness can be adjusted from 0–60 μm, with fine 1 μm increments from 0–10 μm.
• User-friendly operation: Quick-change specimen clamps and an intuitive display simplify specimen preparation and sectioning.

Working Principle
The HH-3558C uses a precision microtome mechanism to move the specimen through a controlled vertical stroke while the cutting system produces sections at a preset thickness.
For frozen sectioning, the integrated HH-III rapid freezing system rapidly cools the specimen and freezing stage to the required temperature. The frozen tissue is then sectioned directly for rapid pathological or histological examination.
For conventional paraffin sectioning, the freezing system is not required and the microtome operates as a standard paraffin sectioning system. This dual-purpose configuration allows laboratories to perform both techniques using one instrument.

Technical Specifications

Item	Specification
Model	HH-3558C
Section Thickness Range	0–60 μm
Section Thickness Adjustment	0–10 μm in 1 μm increments; 10–60 μm in 5 μm increments
Trimming Thickness	1.0–60 μm via graduated knob; fine adjustment via handwheel
Sectioning Accuracy	±5%
Specimen Horizontal Movement	28 mm
Specimen Vertical Movement	60 mm
Maximum Sectioning Area	50 × 45 mm
Freezing Stage Area	45 × 40 mm
Freezing Stage Temperature Difference	≥60°C
Freezing Knife Temperature Difference	≥50°C
Cooling Time	Approximately 4–7 minutes to reach sectioning temperature
Rapid Defrosting Time	Approximately 3–5 minutes
Defrost Recovery	Automatic return to cooling operation after defrosting
Display	Intelligent LCD
Power Supply	AC 220 V, 50 Hz

Applications
• Histology laboratories
• Clinical pathology laboratories
• Rapid frozen tissue sectioning
• Routine paraffin tissue sectioning
• Biological tissue research
• Medical research and teaching

Comparison

Feature	HH-3558C Dual-Purpose Microtome	Conventional Paraffin Microtome	Dedicated Frozen Section System
Paraffin Sectioning	Supported	Supported	Usually not the primary function
Frozen Sectioning	Supported	Not supported	Supported
Two-in-One Operation	Yes	No	No
Section Thickness	0–60 μm	Model dependent	Model dependent
Rapid Cooling	Integrated	Not available	Available
Automatic Defrosting	Yes	Not applicable	Model dependent
Temperature Display	Intelligent LCD	Model dependent	Available on many systems
Automatic Temperature Control	Yes	Not applicable to freezing stage	Available
Specimen Clamp Replacement	Quick change	Model dependent	Model dependent
Typical Use	Histology + clinical pathology	Routine paraffin histology	Rapid frozen pathology

Applicable Standards
The supplied technical information does not specify a particular national or international compliance standard. Applicable regulatory and laboratory requirements should be confirmed with the manufacturer according to the intended application and market.

FAQ
Q1: What is the main advantage of the HH-3558C?
A: It combines rapid frozen sectioning and conventional paraffin sectioning in one microtome, allowing laboratories to perform both workflows with a single instrument.
Q2: What section thickness can be selected?
A: The section thickness range is 0–60 μm. Thickness from 0–10 μm can be adjusted in 1 μm increments, while 10–60 μm can be adjusted in 5 μm increments.
Q3: How quickly can the freezing system reach the required temperature?
A: The rapid freezing system can reach the required sectioning temperature in approximately 4–7 minutes.
Q4: How long does rapid defrosting take?
A: The freezing stage can be rapidly defrosted in approximately 3–5 minutes. After defrosting, the system automatically resumes cooling.
Q5: Can the HH-3558C be used for routine paraffin sections?
A: Yes. The instrument is designed for both rapid frozen tissue sections and conventional paraffin sections.
Q6: What types of laboratories can use this microtome?
A: It is suitable for histology, clinical pathology, biological research, medical research, and related laboratory applications.
Q7: Does the instrument provide temperature monitoring?
A: Yes. The intelligent LCD system displays both the set temperature and real-time temperature and supports automatic temperature control and alarm functions.
