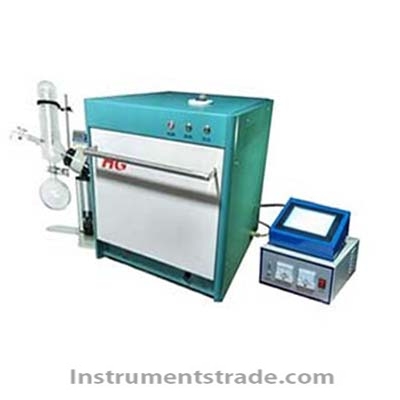

HG-WHC5 Multifunctional Microwave Rotary Evaporator for Heat sensitive material concentration

Product ID:SYCHXZZF034

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberHG-WHC5
    Brand NameHUAGANGTONG
    Payment TermsTT,PAYPAL
    HG-WHC5 Multifunctional Microwave Rotary Evaporator

    Introduction:
         HG-WHC5 multifunctional microwave rotary evaporator is a product designed according to our company's unique control technology and according to the needs of teachers and students in colleges and universities. The modes are arbitrarily combined into seven catalytic modes. High-power invasive ultrasonic transducers can work in environments below 300°C with a frequency of 25kHz. The main features are precise temperature control, 8-inch screen display, touch control, simple and convenient operation, and data storage. HG-WHC2U Microwave Ultrasound Ultraviolet Light Response Instrument has powerful digital processing functions, real-time online display and recording of reaction data and curve images, program control of reaction conditions, experiments can be divided into multiple working stages, and unsuitable reactions can be modified online at any time Condition parameter, with the function of saving and querying experimental records. The instrument adopts a temperature and pressure dual control system to control the pressure and temperature of the synthesis experiment and display it in real time. Microwave hydrothermal synthesis experiments can be performed. When the pressure in the tank exceeds the set protection value, the microwave will automatically stop heating. It can be heated at a constant temperature and rotated under negative pressure to form a film, and at the same time, the solvent is evaporated and recovered by condensation. It is especially suitable for the concentration, crystallization, separation and recovery of heat-sensitive materials. It is an important equipment for scientific research, pilot test and production in chemical, food and other industries.
    Features:
    1. Ultrasonic frequency automatic frequency search and frequency locking function, which can maintain the maximum sound power when the properties and viscosity of the reactants change;
    2. The volume is 100ml microwave synthesis tank, the outer tank is made of imported PEEK aerospace material, and the inner tank is made of PTFE;
    3.L stainless steel cavity, multi-layer anti-corrosion coating on the surface, strong corrosion resistance and high temperature resistance;
    4. High-precision contact platinum-plated temperature sensor to monitor the reaction temperature in real time and accurately control the reaction process;
    5. Can work continuously for 8 hours.
    6. 14.8-inch touch screen LCD display, touch operation, real-time display of the temperature and temperature curve of the closed reaction tank, and the function of saving and querying experimental records;
    7. Provide different speeds of magnetic stirring, stepless speed change 0 ~ 5000 rpm;
    8. Intelligent temperature control mathematical model algorithm to ensure accurate temperature control and prevent over-temperature and low-temperature phenomena;
    9. Open reaction system, dropping funnel and condenser tube can be installed for reflux reaction, microwave leakage conforms to national standards, safe and reliable.
    Technical parameter:
    Power: 0-1000W, 10 gears are automatically adjustable,
    Microwave frequency: 2450MHz; microwave power is automatically controlled by frequency conversion with temperature.
    Ultrasonic power: 0300W continuously adjustable, ultrasonic frequency: 25±1KHz;
    Ultrasonic working environment: 0300;
    Ultrasonic probe diameter: Ф8mm, Ф18mm are suitable for reaction vessels of different diameters;
    UV wavelength: 365nm, power: 300W
    Temperature measurement accuracy: ≤±0.2 Temperature control accuracy: ≤±1;
    Pressure control range: 0~6MPa, maximum pressure resistance 15MPa, pressure control accuracy: 0.01MPa;
    Reaction volume: 101500mL
    Mechanical stirring speed range: 0 ~ 2000 rpm (optional);
    Spin bottle capacity: 1000ml
    Collection bottle capacity: 1000ml
    Rotation speed: 10—120 rpm (AC stepless speed regulation)
    Motor: power 40W; AC induction motor stepless speed regulation, no brush, no spark, long life;
