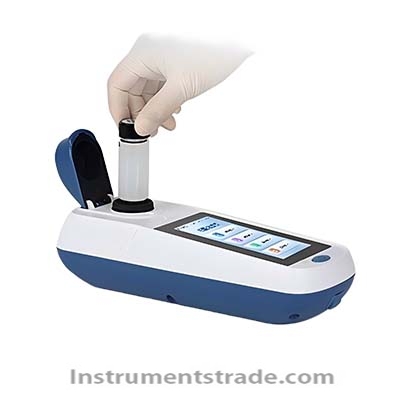

HD-SXMZ1 McFarland Bacterial Turbidity Meter

Position: Home > > Environmental monitoring and analysis > Water quality physical chemical index > Turbidity meter > HD-SXMZ1 McFarland Bacterial Turbidity Meter

HD-SXMZ1 McFarland Bacterial Turbidity Meter

Product ID：HSCzd031

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberHD-SXMZ1

Brand NameHUOERDE

Payment TermsTT，PAYPAL，Alibaba.com Pay

HD-SXMZ1 McFarland Bacterial Turbidity Meter

Portable Android-Powered 0.0–6.0 MCF Analyzer for Microbiology Laboratories

Quick Summary
The HD-SXMZ1 McFarland Bacterial Turbidity Meter is a handheld, Android 12-powered instrument designed for accurate, traceable bacterial turbidity measurement in MCF (McFarland units). With a 0.0–6.0 MCF measuring range, 860 nm LED light source, 10,000+ local records, Wi-Fi data upload, and USB-C charging, it is ideal for modern laboratories requiring reliable data storage, calibration, and traceability.

Product Overview
The HD-SXMZ1 McFarland Bacterial Turbidity Meter features large-capacity local storage and can save no fewer than 10,000 test records, meeting the needs of laboratories for high-volume, long-term data retention, experiment traceability, and record management.
It supports Wi-Fi wireless data upload and remote firmware upgrade, removing wired transmission limitations and adapting to intelligent laboratory management systems. Each test automatically generates an accurate McFarland turbidity value. The data is stable, queryable, traceable, and archivable — effectively solving the traditional pain points of visual turbidity comparison, which lacks data records and traceability.
With precise calibration functions, detection deviations can be corrected at any time, ensuring every set of experimental data is authentic and valid. This makes the HD-SXMZ1 suitable for scientific research data support, enterprise quality inspection, and institutional compliance testing.

Key Benefits
Accurate McFarland Measurement — Results output in MCF units
Large Local Storage — Saves at least 10,000 detection records
Wi-Fi Data Upload — Wireless data transfer to platforms
Remote Firmware Upgrade — Keep the device updated without wired connections
Traceable Data — Supports experiment traceability and ledger organization
User Calibration — Correct deviations or recalibrate after changing test tubes
Android 12 System — 4.3-inch handheld touchscreen all-in-one operation
USB-C Charging — High-capacity lithium battery for lab and field use
Bilingual Interface — Chinese / English language switching

Technical Specifications

Item	Specification
Model	HD-SXMZ1
Product Type	McFarland Bacterial Turbidity Meter
Light Source	LED
Light Source Wavelength	860 nm
Measuring Range	0.0–6.0 MCF (expandable)
Indication Error	≤±5%
Repeatability	≤0.5%
Resolution	0.001 MCF
Sample Cell Compatibility	16 mm test tubes; 15 mm × 150 mm disposable glass test tubes
Sample Volume	At least 3 mL
Screen	HD capacitive touchscreen
Data Storage	≥10,000 records
Power Supply	High-capacity lithium battery, USB-C charging
Operating Environment	10–30°C, relative humidity ≤75%
Dimensions	246 mm × 59.4 mm × 84 mm
Weight	Approx. 590 g
Operating System	Android 12
Display Size	4.3-inch handheld touchscreen
Calibration	McFarland turbidity standards; manual zero calibration; user calibration
Data Upload	Wi-Fi wireless data upload
Firmware Upgrade	Remote Wi-Fi upgrade
Language	Chinese / English switch

Key Features
Android 12 System — 4.3-inch handheld touchscreen with integrated operation.
860 nm LED Light Source — Stable and reliable performance.
McFarland Standard Calibration — Results output in MCF units.
Expandable Measuring Range — 0.0–6.0 MCF, expandable as needed.
Manual Zero Calibration — Compensates for light source attenuation and test tube differences, ensuring built-in calibration curve accuracy.
User Self-Calibration — Recalibrate after detection deviation or when changing test tubes.
Broad Tube Compatibility — Supports 16 mm test tubes and 15 mm × 150 mm disposable glass test tubes.
Large Local Data Storage — No fewer than 10,000 records.
Wi-Fi Connectivity — Remote software upgrade and wireless data upload to platform.
Bilingual Operation — Chinese / English language switching.

Applications
Microbiology Laboratories — Bacterial suspension turbidity measurement and standardization
Pharmaceutical Quality Control — Inoculum density adjustment and QC workflows
Clinical Research — Traceable McFarland turbidity data for experimental records
Food & Beverage Testing — Microbial suspension preparation and quality monitoring
Water & Environmental Testing — Bacterial turbidity analysis in water samples
Academic & Scientific Research — Data support for papers, studies, and compliance reports
Enterprise Quality Inspection — Batch testing and long-term data archiving
Institutional Compliance Testing — Traceable records for regulatory and audit requirements

FAQ
Q1: What is the HD-SXMZ1?
A: The HD-SXMZ1 is a portable McFarland bacterial turbidity meter used to measure bacterial suspension turbidity in MCF units.
Q2: What is the measuring range?
A: The standard range is 0.0–6.0 MCF and can be expanded as needed.
Q3: What unit does it output?
A: It outputs McFarland turbidity values in MCF units.
Q4: How many records can it store?
A: It can save at least 10,000 detection records locally.
Q5: Does it support wireless data transfer?
A: Yes. It supports Wi-Fi data upload and remote firmware upgrade.
Q6: What sample tubes are compatible?
A: It supports 16 mm test tubes and 15 mm × 150 mm disposable glass test tubes.
Q7: What is the minimum sample volume?
A: At least 3 mL.
Q8: What operating system does it use?
A: Android 12 with a 4.3-inch HD capacitive touchscreen.
Q9: How is it powered?
A: It uses a high-capacity lithium battery and supports USB-C charging.
Q10: Can users calibrate the device?
A: Yes. It supports manual zero calibration and user self-calibration.
Q11: Does it support multiple languages?
A: Yes. It supports Chinese / English language switching.
Q12: Why choose a McFarland bacterial turbidity meter?
A: It provides accurate, stable, traceable turbidity values, solving the lack of data records and traceability associated with traditional visual turbidity comparison.
