HD-LSG Lab Ion Concentration Meter

Position: Home > > Environmental monitoring and analysis > Inorganic pollutants in water detection > Ion detector > HD-LSG Laboratory Ion Concentration Meter

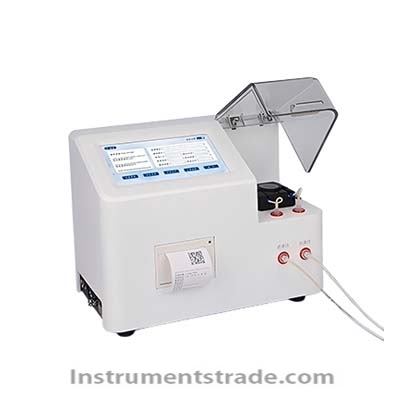

HD-LSG Laboratory Ion Concentration Meter

Product ID：HSWJlz028

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberHD-LSG

Brand NameHUOERDE

Payment TermsTT，PAYPAL，Alibaba.com Pay

HD-LSG Laboratory Ion Concentration Meter
Automated Phosphate Analyzer for Boiler Water, Cooling Water & Industrial Water Testing
Quick Summary
The HD-LSG Laboratory Ion Concentration Meter is a rapid analysis instrument integrating automatic sampling and photoelectric detection technology. It performs colorimetric quantification on a color-developed reaction liquid and calculates the corresponding phosphate content using an internal standard curve. With a 0–50 mg/L measuring range, 7-inch color touchscreen, Android 7.1.1 system, WiFi data upload, built-in thermal printer, and 5 million record storage, it is ideal for power plants, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, chemical fiber, and semiconductor industries.

Why Phosphate Detection Matters
Phosphate detection in water quality testing is important for guiding and monitoring water purification processes. Water purification includes two stages: natural purification and artificial purification.
Natural purification mainly relies on microorganisms in nature to decompose and transform pollutants.
Artificial purification mainly relies on wastewater treatment plants and other artificial facilities.
By detecting phosphate in water, operators can understand the microbial decomposition of pollutants and the operating status of artificial purification facilities. This provides an important basis for guiding and monitoring the purification process.

Product Overview
The HD-LSG Laboratory Ion Concentration Meter is a rapid analysis device that combines automatic sample introduction with photoelectric detection. After color development is completed, the instrument performs colorimetric quantification on the reaction liquid and obtains the corresponding phosphate content based on the built-in standard curve.
This instrument is suitable for industries such as power plants, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, chemical fiber, and semiconductor. It is designed for the detection and analysis of soluble phosphate ion content in water, including desalinated water, steam condensate, and boiler water.
It complies with the standard GB/T 6913-2023 — Analysis of water used in boiler and cooling system: Determination of phosphate.

Working Principle
The HD-LSG Laboratory Ion Concentration Meter uses the photoelectric colorimetric principle for measurement.
In acidic medium, phosphate in the water sample reacts with vanadomolybdate to form a yellow phosphovanadomolybdate mixture.
The analyzer then determines the phosphate ion content through photoelectric colorimetry.
According to the Lambert-Beer law, when a beam of monochromatic parallel light passes through a colored solution, part of the light energy is absorbed by the solution. If the liquid layer thickness remains constant, the degree of light absorption (absorbance A) is proportional to the concentration of the colored substance in the solution.

Key Features
7-inch Color Touchscreen — Android 7.1.1 intelligent operating system for better interaction and smoother use.
Automatic Peristaltic Pump Sampling — Continuous flow detection is not limited by sample number; supports continuous multi-sample testing and saves reagents and consumables.
WiFi Connectivity — Fast wireless upload of detection data.
Custom Wavelength LED Cold Light Source — High stability, more stable detection data, low power consumption, and long service life.
Professional Dust Cover Design — Effectively protects the peristaltic pump and tubing during operation.
Intelligent Constant Current & Voltage Stabilization — Automatic light intensity adjustment and calibration; no temperature drift during long-term continuous operation.
Built-in High-Speed Thermal Printer — Automatically prints the detection report after measurement.
High-Capacity 16G Storage — Stores up to 5 million detection results.
Data Cloud Platform — Supports long-term storage, short-term and long-term viewing and analysis, and auxiliary management.
USB Data Export — Supports direct data copy via USB flash drive; standard USB interface, driver-free plug-and-play.
Self-Cleaning Function — Automatically cleans the pipeline after detection is completed.

Technical Specifications

Item	Specification
Model	HD-LSG
Product Type	Laboratory Ion Concentration Meter / Phosphate Analyzer
Detection Parameter	Phosphate
Measuring Range	0–50 mg/L (segment selectable)
Resolution	0.01 mg/L
Display	7-inch color touchscreen
Basic Error	±0.5% F.S.
Stability	±1% F.S./24h
Sample Temperature	20–35°C
Data Storage	5,000,000 records
Printing Function	Built-in thermal printer
Sampling Method	Peristaltic pump, automatic sampling (not manual)
Output Method	WiFi wireless upload, USB
Working Power Supply	AC220V @ 50Hz
Power Consumption	≤7W
Dimensions	315 × 180 × 250 mm (L × W × H)
Working Conditions	Ambient temperature: 5–45°C; Relative humidity: ≤85% RH (non-condensing)
Weight	3.8 kg
Standard Compliance	GB/T 6913-2023

Applications
Power Plants — Phosphate monitoring in boiler water, steam condensate, and desalinated water.
Chemical Fertilizer Industry — Phosphate content analysis in process water and products.
Metallurgy — Water quality control in metallurgical processes.
Environmental Protection — Phosphate detection for water purification guidance and monitoring.
Pharmaceutical Industry — Laboratory water testing and quality control.
Chemical Fiber Industry — Process water phosphate analysis.
Semiconductor Industry — High-purity water and wastewater phosphate monitoring.
Boiler & Cooling Water Systems — Compliance with GB/T 6913-2023 for phosphate determination.
Laboratory & Research — Traceable phosphate data for scientific research and quality reports.

FAQ
Q1: What does the HD-LSG measure?
A: It measures phosphate content in water, specifically soluble phosphate ions.
Q2: What is the measuring range?
A: The standard range is 0–50 mg/L, with segment selectable options.
Q3: What is the working principle?
A: It uses photoelectric colorimetry. Phosphate reacts with vanadomolybdate in acidic medium to form a yellow phosphovanadomolybdate mixture, and the phosphate content is determined by absorbance based on the Lambert-Beer law.
Q4: Does it support automatic sampling?
A: Yes. It uses a peristaltic pump for continuous automatic sampling, not manual sample addition.
Q5: How many records can it store?
A: It can store up to 5,000,000 detection results with 16G storage capacity.
Q6: Can data be uploaded or exported?
A: Yes. It supports WiFi wireless upload and USB data export via USB flash drive.
Q7: Does it have a built-in printer?
A: Yes. It has a built-in high-speed thermal printer that automatically prints detection reports.
Q8: Does it clean itself?
A: Yes. It has a self-cleaning function that automatically cleans the pipeline after detection.
Q9: What industries is it suitable for?
A: It is suitable for power plants, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, chemical fiber, semiconductor, and other industries.
Q10: What standard does it comply with?
A: It complies with GB/T 6913-2023 — Analysis of water used in boiler and cooling system: Determination of phosphate.
