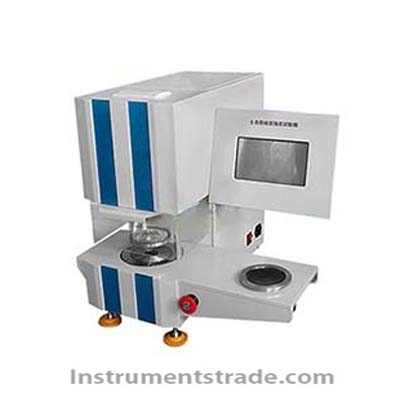

HD-A504-B Paperboard Bursting Strength Tester

Product ID：HZBZnpd006

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberHD-A504-B

Brand NameXMHAIDA

Payment TermsTT，PAYPAL，Alibaba.com Pay

HD-A504-B Paperboard Bursting Strength Tester

Product Introduction
The HD-A504-B Paperboard Bursting Strength Tester is an internationally used Mullen-type bursting strength tester for evaluating the bursting strength of paper, paperboard and corrugated board. It can also be used for selected non-paper materials such as silk and cotton fabrics.
Designed as a fully automatic bursting tester, the instrument automatically performs hydraulic pressurization, specimen clamping, pressure release and return. Test results are automatically calculated, stored and displayed on the touchscreen, with printing available for convenient quality control and test-data management.
The HD-A504-B is designed to meet GB/T 1539, GB/T 454 and ISO 2759 and is suitable for packaging manufacturers, paper mills, corrugated board producers, laboratories and quality inspection departments.

Performance Features
• Mullen-type bursting test: Internationally recognized method for paper and paperboard burst strength testing.
• Fully automatic operation: Automatic hydraulic pressurization, return, calculation and data processing.
• Automatic clamping: Automatically clamps and releases the test specimen.
• Adjustable clamping pressure: Specimen clamping force can be adjusted from 50–1200 kPa.
• Touchscreen display: Test operation and results are displayed digitally.
• Automatic data management: Test data can be automatically calculated, stored and printed.
• Multiple pressure units: Supports kPa, lb/in² and kgf/cm² with unit conversion.
• High/low pressure configurations: Supports standard capacity up to 56 kgf/cm² and low-pressure testing up to 16 kgf/cm².
• Transparent safety protection: Acrylic protective cover and test indicator light allow visual observation of the bursting process.
• SUS 304 stainless-steel clamping rings: Provides a durable specimen clamping surface.
• Silicone hydraulic oil: Uses 100% silicone oil as the hydraulic medium.

Working Principle
The HD-A504-B uses the Mullen bursting method. The test specimen is positioned between the upper and lower clamping rings and automatically clamped. Hydraulic pressure is then applied through a flexible diaphragm until the specimen bursts.
The pressure required to rupture the specimen is detected by a pressure transducer and converted into a digital test result. The instrument automatically completes pressure application, return, calculation and data storage. The final bursting strength can be displayed in selectable pressure units and printed for record keeping.

Technical Parameters

Parameter	Specification
Model	HD-A504-B
Test Method	Mullen bursting strength test
Standards	GB/T 1539, GB/T 454, ISO 2759
Sensing Method	Pressure transducer
Display	Touchscreen
Operation	Fully automatic
Clamping	Automatic clamping and release
Specimen Clamping Force	50–1200 kPa, adjustable
Pressure Units	kPa, lb/in², kgf/cm²
Standard Capacity	0–56 kgf/cm², resolution 0.1 kgf/cm²
Low-Pressure Capacity	0–16 kgf/cm², resolution 0.02 kgf/cm²
Resolution	0.2 kgf/cm²
Upper Clamping Ring ID	Φ30.5 ± 0.1 mm
Lower Clamping Ring ID	Φ30.5 ± 0.1 mm
Low-Pressure Upper Ring ID	Φ30.5 ± 0.1 mm
Low-Pressure Lower Ring ID	Φ33.1 ± 0.5 mm
Clamping Ring Material	SUS 304 Stainless Steel
Hydraulic Oil	100% Silicone Oil
Pressurization Speed	170 ± 15 mL/min
Low-Pressure Speed	95 ± 5 mL/min
Motor	90 W Variable-Speed Motor
Dimensions (L × W × H)	445 × 425 × 525 mm
Weight	50 kg
Power Supply	AC 220 V

Application Scenarios
The HD-A504-B Mullen bursting strength tester is suitable for:
• Paper and paperboard testing
• Corrugated board burst strength testing
• Packaging material quality control
• Cardboard and carton manufacturing
• Paper mill quality inspection
• Packaging laboratory testing
• Incoming material inspection
• Silk and cotton fabric bursting strength testing
• Research and development of packaging materials

HD-A504-B vs. Conventional Manual Burst Testing

Feature	HD-A504-B Automatic Burst Tester	Conventional Manual Burst Tester
Test Method	Mullen bursting method	Mullen bursting method
Operation	Fully automatic	More manual operations
Specimen Clamping	Automatic	Manual or semi-manual
Hydraulic Return	Automatic	May require manual operation
Calculation	Automatic	Manual or semi-automatic
Data Storage	Supported	Often limited
Data Printing	Automatic printing available	Depends on equipment
Display	Touchscreen digital display	Depends on model
Unit Conversion	kPa / lb/in² / kgf/cm²	May require manual conversion
Safety Observation	Acrylic protective cover	Depends on equipment
Data Management	Integrated test data processing	Generally more limited

FAQ
1. What is the HD-A504-B used for?
It is mainly used to measure the bursting strength of paper, paperboard and corrugated board, and can also test selected non-paper materials such as silk and cotton fabric.
2. What is the test method used by this instrument?
The HD-A504-B uses the internationally used Mullen bursting method.
3. Is the bursting test fully automatic?
Yes. The instrument automatically performs clamping, hydraulic pressurization, return, calculation and data processing.
4. Can the specimen clamping force be adjusted?
Yes. The clamping force is adjustable from 50 to 1200 kPa.
5. What pressure units are available?
The instrument supports kPa, lb/in² and kgf/cm², with unit switching functionality.
6. Does the instrument support low-pressure bursting tests?
Yes. The low-pressure configuration has a capacity of 0–16 kgf/cm² with a resolution of 0.02 kgf/cm².
7. Can test results be stored and printed?
Yes. Test data can be automatically calculated and stored, and test results can be printed.
8. Can the bursting process be observed during testing?
Yes. The instrument is equipped with an acrylic protective cover and test indicator light, allowing the bursting process to be visually observed.
9. Which standards does the HD-A504-B meet?
The specified standards are GB/T 1539, GB/T 454 and ISO 2759.
