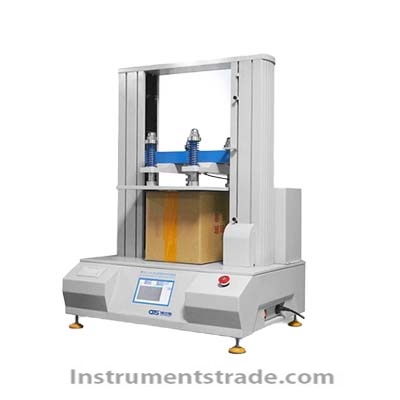

HD-A501-500 Small Carton Compression Strength Tester

Product Introduction
The HD-A501-500 Small Carton Compression Strength Tester is designed to evaluate the compressive strength, deformation, and stacking performance of packaging materials and containers. It is suitable for corrugated cartons, honeycomb panel boxes, paper tubes, paper boxes, paper drums, and other packaging products.
The tester can also be used for compression testing of plastic drums, including food-oil and mineral-water containers, as well as IBC containers and other compatible packaging vessels. Its touchscreen control, high-resolution force measurement, selectable force units, and built-in micro printer support efficient quality inspection in packaging production and testing laboratories.
The HD-A501-500 is designed with reference to multiple packaging and transport test standards, including ASTM D642, TAPPI T804, and relevant GB/T standards.

Performance Features
• Wide packaging applications: Tests cartons, paper tubes, honeycomb panel boxes, paper drums, plastic drums, and compatible IBC containers.
• Selectable load capacity: Available with a 500 kg or 1000 kg load capacity, depending on the selected domestic load cell.
•   High-resolution force analysis: Load analysis resolution of 1/100,000.
•   High measurement accuracy: Specified accuracy of ≤0.5%.
•   Touchscreen operation: Simplifies test setup and operation.
•   Flexible force units: Switches between kgf, N, and lbf.
• Compression and stacking tests: Evaluates compressive resistance, deformation, and stacking-related performance.
•   Built-in micro printer: Supports convenient on-site printing of test results.
•   Adjustable test speed: Speed range of 10–130 mm/min.

Working Principle
The HD-A501-500 uses a compression testing method to evaluate the load-bearing performance of packaging specimens.
1. Specimen placement: The carton, paper tube, or other suitable container is positioned between the compression platens.
2. Parameter setting: The operator configures the test conditions through the touchscreen and selects the appropriate force unit.
3. Compression loading: The machine applies a controlled compressive force at the selected speed.
4. Force measurement: The load cell measures the force applied to the specimen as compression progresses.
5. Performance evaluation: The test data are used to assess compressive strength, deformation, or stacking performance according to the selected test procedure.
6. Result output: Test results can be printed using the built-in micro printer.
Test settings and specimen preparation should follow the applicable standard and the requirements of the packaging being evaluated.

Technical Specifications

Parameter	Specification
Model	HD-A501-500
Product Type	Small carton compression strength tester
Load Capacity	500 kg or 1000 kg, selectable
Load Cell	Domestic sensor, selected according to capacity
Load Analysis Resolution	1/100,000
Accuracy	≤0.5%
Operation Mode	Touchscreen control
Selectable Force Units	kgf, N, lbf
Compression Space (W × D × H)	400 × 500 × 550 mm
Standard Compression Speed	10 ± 3 mm/min
Speed Range	10–130 mm/min
Minimum Test Height	20 mm
Printing Function	Built-in micro printer
Overall Dimensions (L × W × H)	800 × 610 × 1080 mm
Power Supply	220 V AC, 50 Hz

Applicable Standards
The source specifies the following standards as design references:
•   TAPPI T804
•   JIS-20212
•   GB 4857.3.4
•   ASTM D642
•   QB/T 1048
•   BS EN ISO 12048
•   GB/T 4857.16
•   GB/T 8167
•   GB/T 8168
•   GB/T 4857.3
•   GB/T 4857.4
Confirm the applicable edition and the exact test method required for your specimen before testing.

Application Scenarios
The HD-A501-500 carton compression tester is suitable for packaging strength evaluation in various industries.
• Corrugated carton manufacturing: Evaluating carton compression resistance and stacking performance.
• Paper packaging production: Testing paper boxes, paper tubes, paper drums, and related products.
• Honeycomb packaging: Assessing the compressive performance of honeycomb panel boxes.
• Food and beverage packaging: Testing compatible plastic drums and mineral-water containers.
• Edible oil packaging: Evaluating the compression resistance of suitable plastic containers.
• Industrial packaging: Testing compatible IBC containers and other packaging vessels.
• Packaging quality control: Performing incoming-material inspection, production checks, and packaging development tests.
• Third-party testing laboratories: Conducting packaging compression tests according to applicable procedures.

Comparison with Other Packaging Testing Solutions

Feature	HD-A501-500 Compression Tester	Manual Compression Test Device	Universal Testing Machine
Main Function	Packaging compression and stacking-related tests	Basic compression checks	Multiple mechanical tests, depending on configuration
Load Capacity	500 kg or 1000 kg	Device-dependent	Model-dependent
Force Measurement	Electronic load cell	Depends on device	Electronic load cell
Operation	Touchscreen control	Typically manual	Usually digital or computer-controlled
Force Unit Selection	kgf, N, lbf	Device-dependent	Usually configurable
Test Speed	10–130 mm/min	Often limited	Model-dependent
Result Printing	Built-in micro printer	Depends on device	Depends on configuration
Typical Applications	Cartons, paper tubes, packaging containers	Simple checks	Broader material testing requirements

Frequently Asked Questions
Q1: What is the HD-A501-500 used for?
It tests the compressive strength, deformation, and stacking performance of cartons, paper tubes, and compatible packaging containers.
Q2: What load capacities are available?
The instrument is available with either a 500 kg or 1000 kg capacity, depending on the selected load cell.
Q3: Which packaging materials can be tested?
Suitable specimens include corrugated cartons, honeycomb panel boxes, paper tubes, paper boxes, paper drums, plastic drums, and compatible IBC containers.
Q4: What is the measurement accuracy?
The specified accuracy is ≤0.5%, with a load analysis resolution of 1/100,000.
Q5: Can the force unit be changed?
Yes. The touchscreen interface allows selection among kgf, newtons (N), and pounds-force (lbf).
Q6: What is the compression speed?
The standard compression speed is 10 ± 3 mm/min, and the stated adjustable speed range is 10–130 mm/min.
Q7: Does the machine print test results?
Yes. It includes a built-in micro printer for convenient output of test results.
Q8: Which testing standards does it support?
The source lists standards including ASTM D642, TAPPI T804, BS EN ISO 12048, QB/T 1048, and several GB/T standards. Confirm the exact method and edition required for your application.
Q9: What power supply is required?
The specified power supply is 220 V AC at 50 Hz.
