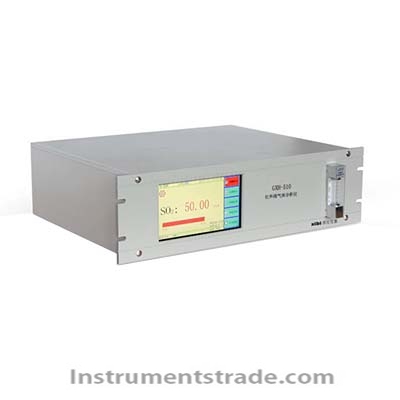

GXH-510 Infrared Gas Analyzer

Position: Home > > Environmental monitoring and analysis > Gaseous pollutants > CO2 / CO infrared gas analyzer > GXH-510 Infrared Gas Analyzer

GXH-510 Infrared Gas Analyzer

Product ID：HQWRCO2CO012

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberGXH-510

Brand NameBJXIBI

Payment TermsTT，PAYPAL，Alibaba.com Pay

GXH-510 Infrared Gas Analyzer

Product Introduction
The GXH-510 Infrared Gas Analyzer is a non-dispersive infrared (NDIR) gas analysis instrument designed for continuous measurement of relative gas concentrations. Based on the selective absorption of infrared radiation by specific gases, it combines single-source NDIR technology, a single-tube half-separated gas chamber, and a high-stability microphone diaphragm detector.
Adopting technology from German company Maihak, the GXH-510 is designed for long-term operating stability, low zero drift, high reliability, and strong gas selectivity. Its standard 19-inch chassis, large touchscreen LCD, data storage, and configurable multi-component measurement make it suitable for industrial process monitoring, environmental analysis, and scientific research.

Performance Features
• NDIR measurement technology: Uses selective infrared absorption to measure target gas concentrations.
• High long-term stability: Zero and span drift are both specified at ≤±1% FS over 7 days.
• Fast response: Response time is less than 15 seconds.
• Multi-component configuration: Supports selectable gas components according to application requirements.
• Large touchscreen display: Provides intuitive operation and convenient access to measurement data.
• Data storage and query: Stores measurement data for later review.
• Corrosion-resistant gas cell: The measurement chamber features a gold-plated surface for improved corrosion resistance.
• Dual-range option: Supports two measurement ranges, with a range ratio no greater than 1:10.
• Isolated analog output: Provides 0/4–20 mA signal output, with an optional RS485/RS232 interface.
• Industrial integration: Offers two groups of relay contact outputs and standard Modbus protocol support for compatible configurations.

Working Principle
The GXH-510 uses non-dispersive infrared absorption to determine gas concentrations. Certain gases absorb infrared radiation at characteristic wavelengths. When infrared light passes through the sample gas, the amount of absorbed energy varies with the concentration of the target gas.
The instrument's optical system and microphone diaphragm detector measure the resulting signal change. The analyzer processes this signal and converts it into a gas concentration reading, which is displayed and can be transmitted through the configured output interfaces.
The single-source optical design and specialized gas chamber support measurement stability, while the gold-plated gas cell helps resist corrosion in suitable applications.

Technical Parameters

Parameter	Specification
Model	GXH-510
Instrument Type	Non-Dispersive Infrared (NDIR) Gas Analyzer
Measurement Method	Selective infrared absorption
Minimum Measurement Ranges	CO: 0–20 ppm; CO₂: 0–5 ppm; CH₄: 0–100 ppm; NO: 0–300 ppm; SO₂: 0–300 ppm; NH₃: 0–500 ppm; N₂O: 0–200 ppm
Optional Gas Components	MN (as specified in source; designation requires confirmation), SF₆, C₂H₂, C₂H₄, C₃H₆, C₃H₈, C₄H₁₀
Zero Drift	≤±1% FS/7 days
Span Drift	≤±1% FS/7 days
Linearity Error	≤±1% FS
Repeatability	≤0.5%
Response Time	<15 seconds
Signal Output	0/4–20 mA
Digital Communication	RS485/RS232, optional
Communication Protocol	Modbus, for compatible configurations
Analog Output Load	≤400 Ω
Relay Outputs	Two groups of contact outputs, 24 VAC/1 A as specified
Operating Temperature	0–45°C
Power Consumption	120 W
Power Supply	220 VAC ±10%, 50 Hz ±1 Hz
Weight	Approx. 12 kg
Enclosure	Standard 19-inch chassis
Display	Large LCD touchscreen
Gas Cell	Gold-plated, corrosion-resistant surface
Dual-Range Configuration	Optional; range ratio ≤1:10
Range Compression	50–100%

Application Scenarios
• Petrochemical industry: Continuous monitoring of selected gases in process streams and industrial systems.
• Chemical and fertilizer production: Gas concentration monitoring for process control and operational safety.
• Environmental monitoring: Measurement of applicable gaseous pollutants in environmental and industrial monitoring applications.
• Cement and metallurgy: Monitoring selected process gases during production and combustion-related operations.
• Biopharmaceutical manufacturing: Gas analysis for suitable process and research applications.
• Agricultural research: Measurement of selected gases in experimental and controlled environments.
•Scientific research: Laboratory gas analysis and continuous concentration monitoring.
• Medical and health-related research: Gas measurement in compatible analytical and research systems.

Comparison: GXH-510 NDIR Gas Analyzer vs. Basic Gas Monitoring Instruments

Feature	GXH-510 Infrared Gas Analyzer	Basic Gas Monitoring Instrument
Measurement Technology	Non-dispersive infrared absorption	Depends on sensor technology
Gas Configuration	Multiple selectable components	Often designed for a limited set of gases
Long-Term Drift	Zero and span drift ≤±1% FS/7 days	Depends on model and sensor
Response Time	<15 seconds	Depends on model
Data Storage	Built-in data storage and query	May be limited
Analog Output	0/4–20 mA	Depends on model
Digital Communication	Optional RS485/RS232; Modbus support for compatible configurations	Depends on model
Range Configuration	Optional dual range	Depends on model
Typical Applications	Continuous industrial and environmental gas analysis	General-purpose gas monitoring

Frequently Asked Questions (FAQ)
Q1: What is the GXH-510 infrared gas analyzer used for?
It is designed for continuous measurement of selected gas concentrations in industrial processes, environmental monitoring, and research applications.
Q2: What measurement technology does the GXH-510 use?
It uses non-dispersive infrared (NDIR) technology, which measures gases according to their selective absorption of infrared radiation.
Q3: Which gases can it measure?
The listed minimum ranges include CO, CO₂, CH₄, NO, SO₂, NH₃, and N₂O. Optional configurations may include SF₆ and several hydrocarbon gases. Availability depends on the selected gas configuration.
Q4: How fast does the analyzer respond?
The specified response time is less than 15 seconds.
Q5: How stable is the GXH-510 during continuous operation?
Both zero drift and span drift are specified at ≤±1% FS over 7 days, supporting long-term monitoring.
Q6: Can the analyzer connect to a computer or control system?
Yes. It provides a 0/4–20 mA output and can optionally be configured with RS485/RS232 communication. Modbus support is specified for compatible configurations.
Q7: Does the GXH-510 support multiple measurement ranges?
Yes. An optional dual-range configuration is available, with a ratio between the two ranges no greater than 1:10.
Q8: What power supply does the analyzer require?
It requires 220 VAC ±10% at 50 Hz ±1 Hz and has a specified power consumption of 120 W.
Q9: What should be confirmed before ordering?
Confirm the target gas components, required measurement ranges, communication interfaces, and whether dual-range operation is needed. The optional gas designation “MN” in the supplied specifications should also be clarified.
