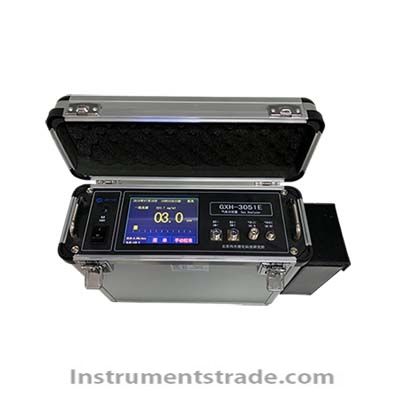

GXH-3051E Portable Infrared Carbon Monoxide (CO) Gas Analyzer

Product ID：HQWR CO2CO005

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberGXH-3051E

Brand NameJUNFANGLIHUA

Payment TermsTT，PAYPAL，Alibaba.com Pay

GXH-3051E Portable Infrared Carbon Monoxide (CO) Gas Analyzer

Product Introduction
The GXH-3051E Portable Infrared CO Gas Analyzer is designed for measuring carbon monoxide (CO) concentrations in ambient air, laboratory samples, flue gas, and exhaust gas. Using non-dispersive infrared (NDIR) technology, it provides reliable gas concentration measurements for environmental monitoring and scientific research.
Its portable carrying-case design, AC/DC power supply, built-in sampling pump, and multifunctional sampling probe support convenient on-site inspections. A color touchscreen, automatic maintenance functions, data logging, RS232 communication, and PC software simplify operation and data management. The analyzer also supports conversion between ppm and mg/m³.

Performance Features
• NDIR measurement technology: Selective infrared absorption enables carbon monoxide concentration analysis.
• Portable design: Lightweight construction supports mobile inspections and field measurements.
• Integrated sampling system: Built-in pump with a multifunctional probe for cooling, dust removal, and moisture removal.
• Clear touchscreen interface: 5.7-inch color display with Chinese menus and touchscreen controls.
• High-resolution measurement: Minimum resolution of 0.1 ppm for low-concentration CO monitoring.
• Data recording: Stores up to 9,999 measurement records for subsequent review and analysis.
• Adjustable alarms: User-defined alarm thresholds with color-coded visual warnings.
• Data connectivity: RS232 output and PC host software support data transfer and analysis.
• Flexible power supply: AC charger input of 100–240 V, 50 Hz, with 12 V DC output.
• Unit conversion: Displays CO concentration in ppm and mg/m³.

Working Principle
The GXH-3051E uses non-dispersive infrared (NDIR) spectroscopy. Carbon monoxide selectively absorbs infrared radiation at characteristic wavelengths. The analyzer measures the change in infrared intensity after the sampled gas passes through the measurement chamber and uses the absorption signal to determine CO concentration.
An integrated pump draws the sample through the sampling probe and pretreatment components, which help remove dust and moisture and reduce sample temperature when required. The processed gas enters the analysis system, and the instrument calculates and displays the CO concentration. Measurement records can be stored internally or transferred to a computer for further analysis.

Technical Parameters

Parameter	Specification
Model	GXH-3051E
Gas Measured	Carbon monoxide (CO)
Measurement Principle	Non-dispersive infrared (NDIR)
Measurement Range	0–50 ppm CO; selectable when ordering
Minimum Resolution	0.1 ppm
Linearity Error	≤ ±2% FS
Repeatability Error	≤ 1%
Response Time	t₀–t₉₀ ≤ 45 s
Zero Drift	±2% FS / 4 h
Span Drift	±2% FS / 4 h
Water Vapor Interference	≤ ±2% FS under room-temperature saturated water vapor conditions
Sampling Method	Built-in pump suction
Sampling Flow Rate	0.5–2 L/min
Preheating Time	30 min
Operating Temperature	5–40°C
Relative Humidity	≤ 85%
Power Supply	AC 100–240 V, 50 Hz charger; DC 12 V / 1 A
Display	5.7-inch color display, Chinese menu
Operation	Touchscreen controls
Data Storage	Up to 9,999 records
Alarm Function	Adjustable alarm thresholds with color indication
Output Interface	RS232
PC Software	Infrared Analyzer System V3.00
Sampling Accessories	Cooler, dust remover, and moisture remover
Dimensions	440 × 138 × 370 mm
Instrument Weight	≤ 6.5 kg

FS = full scale. Confirm the required measurement range and sampling configuration when ordering.

Application Scenarios
• Environmental monitoring: Carbon monoxide measurements in ambient air and residential environments.
• Occupational hygiene: CO concentration surveys in workplaces and indoor environments.
• Flue gas analysis: CO monitoring in combustion-related gas samples, subject to suitable sampling conditions.
• Exhaust gas testing: Carbon monoxide concentration checks in exhaust streams.
• Laboratory research: Gas analysis for scientific experiments and analytical studies.
• Public health inspection: Environmental CO surveys conducted by health and disease prevention agencies.
• Field inspections: Portable measurement campaigns requiring convenient transport and on-site data recording.

Comparison: GXH-3051E vs. Conventional CO Gas Analyzers

Feature	GXH-3051E Portable CO Analyzer	Conventional CO Analyzer
Measurement Technology	NDIR infrared absorption	Depends on sensor technology
Portability	Carrying-case design, ≤ 6.5 kg	Varies by model
Sampling	Built-in pump, 0.5–2 L/min	May require external sampling equipment
Sample Pretreatment	Cooling, dust and moisture removal accessories	Depends on configuration
Display	5.7-inch color touchscreen	Varies by model
Data Storage	Up to 9,999 records	Depends on configuration
Alarm Function	Adjustable thresholds with color warnings	Depends on configuration
Computer Connectivity	RS232 and dedicated PC software	Depends on interface
Concentration Units	ppm and mg/m³ conversion	Depends on model

The GXH-3051E combines NDIR carbon monoxide measurement with integrated sampling, onboard data storage, adjustable alarms, and PC connectivity. It is particularly suitable for users who need a portable CO analyzer for repeated environmental surveys and field-based gas testing.

Frequently Asked Questions (FAQ)
Q1: What gas does the GXH-3051E measure?
It measures carbon monoxide (CO) using non-dispersive infrared spectroscopy.
Q2: What is the measurement range of the GXH-3051E?
The specified range is 0–50 ppm CO, with the range selected when ordering.
Q3: What is the minimum measurement resolution?
The minimum resolution is 0.1 ppm.
Q4: Can the analyzer be used for field testing?
Yes. Its portable carrying-case design, built-in sampling pump, and AC/DC power arrangement support on-site inspections.
Q5: Does the GXH-3051E store measurement data?
Yes. It can store up to 9,999 measurement records and transfer data through its RS232 interface using the supplied PC software.
Q6: How long does the instrument take to respond?
The specified response time is t₀–t₉₀ ≤ 45 seconds. The instrument requires a 30-minute preheating period.
Q7: Can the CO concentration be displayed in mg/m³?
Yes. The instrument supports conversion between ppm and mg/m³.
Q8: What sampling accessories are included?
The specified sampling equipment includes a cooler, dust remover, and moisture remover.
Q9: Can the GXH-3051E measure all types of flue gas?
It is designed for CO measurement in flue gas and exhaust gas samples. Sample temperature, moisture, dust loading, pressure, and other gas components should be checked to ensure compatibility with the sampling system and specified operating conditions.
