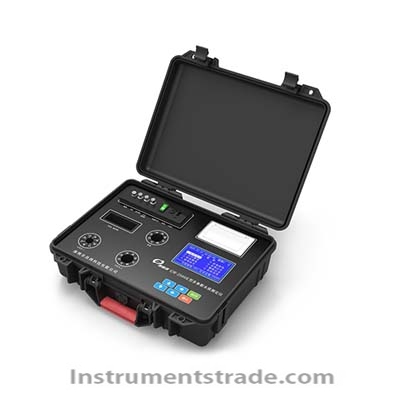

GW-2000E Portable Multi-Parameter Water Quality Analyzer

Position: Home > > Environmental monitoring and analysis > Water quality physical chemical index > Water quality analyzer > GW-2000E Portable Multi-Parameter Water Quality Analyzer

GW-2000E Portable Multi-Parameter Water Quality Analyzer

Product ID：HSCfx104

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberGW-2000E

Brand NameSZCHANGHONG

Payment TermsTT，PAYPAL，Alibaba.com Pay

GW-2000E Portable Multi-Parameter Water Quality Analyzer
Product Introduction
The GW-2000E Portable Multi-Parameter Water Quality Analyzer is a versatile water quality testing instrument that combines optical colorimetric analysis and electrochemical measurement in one portable system.
The analyzer can be configured with different testing methods according to user requirements. Optical colorimetry is used for parameters such as COD, ammonia nitrogen, total phosphorus, total nitrogen, copper, iron, nickel, hexavalent chromium, phosphate and nitrite. Electrochemical electrodes can be selected for pH, conductivity and dissolved oxygen measurement.
The GW-2000E supports more than 80 water quality parameters, with customizable testing items available. It is suitable for drinking water, surface water, wastewater, environmental monitoring, water treatment and field water quality analysis.

Performance Features
•  Multi-method detection: Combines optical colorimetry and electrochemical measurement in one instrument.
• More than 80 parameters: Supports COD, ammonia nitrogen, total phosphorus, total nitrogen, metals, pH, residual chlorine and many other parameters.
•  Flexible configuration: Users can select or customize testing parameters according to actual requirements.
•  Automatic wavelength selection: The instrument automatically selects the appropriate wavelength during measurement without manual adjustment.
•  Stable optical system: Cold light source and narrow-band interference optical system provide excellent optical stability.
• Large Chinese LCD: Large-screen Chinese display provides clear and intuitive operation.
•  Portable field testing: Compact design makes the analyzer convenient for on-site water quality measurement.
•  Unified interface: Optical and electrochemical measurements can be operated and displayed through the same interface.
• Large data storage: Stores up to 300 standard curves and 1,000 measurement records.
•  User-defined curves: Users can add, calibrate and save their own standard curves.
• One-key recovery: Factory and user curve data can be restored after accidental data loss.
•  USB data transfer: Measurement records can be transferred to a computer.
•  Data protection: Stored data is protected during power failure.
•  Rechargeable lithium battery: Supports convenient portable operation.
•  Printing function: Measurement records can be printed when required.
•  Expandable testing platform: Additional testing items can be customized and added.

Working Principle
The GW-2000E uses different analytical methods according to the selected measurement parameter.
Optical Colorimetric Analysis
For colorimetric parameters, the water sample reacts with specific reagents to produce a colored compound. The analyzer automatically selects the required wavelength and measures the absorbance or transmittance of the sample.
The measured optical signal is compared with the corresponding standard curve, and the instrument calculates the concentration of the target substance. This method can be used for parameters such as:
•  COD
•  Ammonia nitrogen
•  Total phosphorus
•  Total nitrogen
•  Copper
•  Iron
•  Nickel
•  Hexavalent chromium
•  Phosphate
•  Nitrite
•  Residual chlorine
•  Other customized colorimetric parameters
Electrochemical Measurement
For pH, conductivity and dissolved oxygen, the GW-2000E uses dedicated electrochemical electrodes. The electrode detects the relevant electrical or electrochemical signal in the sample, and the analyzer converts the signal into the corresponding water quality value.
Turbidity Measurement
Turbidity can be measured using the light-scattering method or scattering-plus-transmission method, depending on the selected configuration.

Technical Parameters

Parameter	Specification
Model	GW-2000E
Instrument Name	Portable Multi-Parameter Water Quality Analyzer
Measurement Parameters	More than 80 parameters, including COD, ammonia nitrogen, total phosphorus, total nitrogen, copper, iron, nickel, hexavalent chromium, phosphate, nitrite, pH and residual chlorine
Measurement Method	Optical colorimetry and electrochemical detection
pH Measurement	Optional electrode method
Conductivity Measurement	Optional electrode method
Dissolved Oxygen Measurement	Optional electrode method
Turbidity Measurement	Light scattering or scattering plus transmission
Available Wavelengths	340, 420, 440, 470, 520, 540, 560, 610, 630, 660, 680 and 700 nm
Customized Wavelengths	Any wavelength within the listed range can be selected or customized
Maximum Absorbance Error	0.005 A
Absorbance Range	-2.000 to 2.000
Repeatability	≤3%
Optical Stability	Absorbance drift <0.002 A within 20 minutes
Reading Modes	Concentration, absorbance and transmittance
Colorimetric Tube Diameter	Φ16 mm and Φ25 mm
Standard Curve Storage	300 curves
Measurement Data Storage	1,000 records
Data Interface	USB
Power Supply	Rechargeable lithium battery
Main Unit Power Consumption	<10 W
Dimensions	410 × 300 × 130 mm
Weight	4 kg

Application Scenarios
Drinking Water Testing
The GW-2000E can be used for routine testing of drinking water quality, including relevant chemical, physical and electrochemical parameters.
Surface Water Monitoring
Suitable for monitoring rivers, lakes, reservoirs and other surface water sources through portable field analysis.
Wastewater Testing
The analyzer can measure important wastewater indicators such as COD, ammonia nitrogen, total phosphorus and total nitrogen, supporting wastewater treatment process monitoring.
Environmental Monitoring
Environmental monitoring departments can use the portable multi-parameter analyzer for field sampling, water quality assessment and pollution investigation.
Water Treatment Plants
The GW-2000E supports routine water quality control in water treatment facilities and helps operators monitor multiple parameters with one instrument.
Universities and Research Institutions
The flexible parameter configuration and user-defined standard curves make the analyzer suitable for teaching, laboratory research and customized analytical methods.
Industrial Water Quality Analysis
The instrument can be used in industrial water monitoring, process water testing and relevant wastewater quality control applications.

GW-2000E vs. Conventional Single-Parameter Water Quality Tester

Feature	GW-2000E Portable Multi-Parameter Analyzer	Conventional Single-Parameter Tester
Measurement Methods	Optical and electrochemical	Usually one method
Number of Parameters	More than 80 available	Usually one parameter
COD Testing	Available	Depends on model
Ammonia Nitrogen Testing	Available	Depends on model
Total Phosphorus and Total Nitrogen	Available	Depends on model
pH, Conductivity and DO	Optional electrode method	Usually requires separate instruments
Wavelength Selection	Automatic	May require manual selection
Standard Curve Storage	300 curves	Usually limited
Measurement Data Storage	1,000 records	Varies
User-Defined Curves	Supported	May not be available
USB Data Transfer	Supported	Varies
Data Recovery	One-key recovery	Varies
Power Supply	Rechargeable lithium battery	Varies
Parameter Expansion	Customizable	Usually limited

FAQ
1. What can the GW-2000E measure?
The GW-2000E supports more than 80 water quality parameters, including COD, ammonia nitrogen, total phosphorus, total nitrogen, copper, iron, nickel, hexavalent chromium, phosphate, nitrite, pH and residual chlorine.
2. Does the analyzer use optical or electrochemical measurement?
It uses both methods. Optical colorimetry is used for many chemical parameters, while pH, conductivity and dissolved oxygen can be measured using dedicated electrochemical electrodes.
3. Can pH, conductivity and dissolved oxygen electrodes be selected?
Yes. The pH, conductivity and dissolved oxygen functions can be configured with the corresponding electrode method according to user requirements.
4. Does the instrument automatically select the wavelength?
Yes. The GW-2000E automatically selects the appropriate wavelength during testing, eliminating the need for manual wavelength adjustment.
5. What wavelengths are available?
The standard wavelength options are 340, 420, 440, 470, 520, 540, 560, 610, 630, 660, 680 and 700 nm. Other wavelengths within this range can be customized.
6. How much data can the analyzer store?
The instrument can store up to 300 standard curves and 1,000 measurement records. Records include parameter and time labels.
7. Can users create their own standard curves?
Yes. Users can add, calibrate and save customized standard curves in the instrument.
8. Can the stored data be transferred to a computer?
Yes. The GW-2000E is equipped with a USB interface for transferring measurement records to a computer.
9. Is the GW-2000E suitable for field testing?
Yes. The portable design, rechargeable lithium battery and 4 kg weight make it suitable for field water quality measurement.
