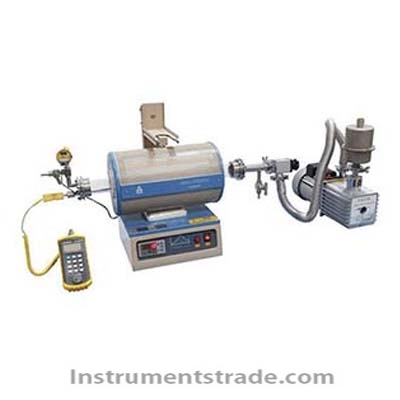

| Furnace Structure | · Energy saving high purity Al2O3 fibrous insulation liner · Stainless steel shells with adjustable height stand · Adjust three knobs on the back to flexibly change the furnace's vertical position within travel distance (from control box platform to lower end of the chamber): 4.5'' ~ 12'' (without hanger and supporter) · Multiple configurations for various thermal processing needs · Multi-position adjustable Using as a Vertical muffle furnace Fixing Knobs for Position Adjustment |
| Furnace Casing | · Energy saving high purity Al2O3 fibrous insulation · Stainless steel shells with adjustable height stand |
| Power | 1500W |
| Voltage | AC 110V or AC 220V 50/60 Hz -- please select the voltage in the option bar |
| Working Temperature | · Max. Temperature: 1100 °C (< 1 hr) · Continuous working temperature: 1000 °C |
| Heating Rate | Max. Heating Rate: 20°C /min |
| Temperature Distribution | |
| Heating Zone | · Heating Zone length: 8" (200mm) · Constant Temperature Zone: 100mm (+/-1°C @ 1000 °C) |
| Temperature controller | · PID automatic control and auto-tune function. · 30 programmable segments for precise process · Built in protection for overheated and broken Thermal couple. · Temperature Accuracy: +/- 1 °C · K-type thermal couple |
| Temperature Calibrator | · Thermal Couples: K type 12" Length with Alloy sheath and Male Plug for Calibration up to 1335°C · Portable Digital Temperature Calibrator with USB and RS232 Interface & Software - NIST certificate |
| Heating Elements | Fe-Cr-Al Alloy doped by Mo |
| Tube Size and Materials | · Quartz Tube with OD: 50; ID 43: Length: 600 · Two fibrous ceramic tube blocks are included for blocking heat radiation from inside tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating) · Quartz blocks (optional) are ideal for cleaner and higher vacuum efficiency. |
| Vacuum Sealing Flanges | Stainless Steel Vacuum Flanges (Left with 1/4 barb fitting, Digital Vacuum Gauge and Thermocouple feedthrough, right with KF25 port and Right Angle Valve) |
| Fitting Ports | · Standard 1/4‘’ Barbed fittings with needle valves. · For supplying high-pressure gas, you may replace the standard barbed hose fitting with the 304SS 1/4" Swagelok® Tube Fitting, please click underlined to order. · Optional: In order to increase the throughput and achieve high vacuum, you may replace the standard barbed hose fitting with the KF25 adapter |
| Vacuum Pump and Vacuum Level | · Double Step Rotary Vane Vacuum Pump EQ-2TW-4C (110V, 226 L/m) with Exhaust Filter & KF-D25 Inlet with Vacuum Bellows and KF25 Clamp or Double Stage Rotary Vane Vacuum Pump EQ-FYP-Pump (220V,156L/m) with oil trap, Exhaust Filter, Bellow& KF-D25 Inlet and KF25 Clamp are included. · Vacuum Pressure can reach 1E-2 Torr ( 50 m-torr) · 10^-5 torr can be reached by molecular pump |
| Dimensions | 10" x 15" x 16" (26 x38 x40 cm) (D x H x W) |
| Net Weight | 100 lbs |
| Shipping Dimensions | 40"(L) x 26"(W) x 35"(H) |
| Shipping Weight | 180 lbs |
| Warranty | One-year limited warranty (Consumable parts such as processing tubes and o-rings are not covered by the warranty, please order the replacement at related products below.) |
| Compliance | · CE Certified |
| Application Notes | · Tube furnaces with quartz tubes are designed for using under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa · Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Vacuum limit definition for all quartz tube furnaces: * Vacuum pressures may only be safely used up to 1000°C · The flow rate for gases should be limited to<200 SCCM (or 200ml/min) for reducing thermal shocks to the tube · In order obtain accurate temperature inside tube furnace, please click here to learn how to calibrate the temperature on your own. · How to set up tube and vacuum flange for MTI tube furnaces. |
