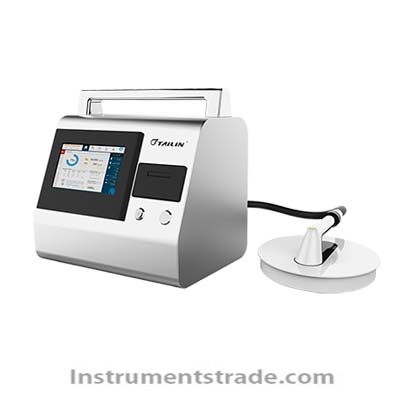

GIT-SE01 Glove Integrity Tester Introduction: The HTY-GIT-SE01 Glove Integrity Tester is a specialized instrument designed to test the integrity of isolators/RABS system sleeves/gloves or integrated gloves. It includes a control panel convenient for the operator, a control system, and a test port compatible with the isolator's operating port. It is capable of operating in positive pressure mode. The test results are displayed as pressure drop values per unit time. The operator determines the integrity of the tested gloves based on the reference values provided by the manufacturer. Features: 1. Portable structure design, easy to use, all stainless steel chassis, easy to clean, suitable for use in clean areas; 2. The tilted control panel facilitates observation and operation, and the built-in dedicated inflator is used to inflate gloves/sleeve covers; 3. Provide a result printing function to facilitate record-keeping, utilizing a SIEMENS Programmable Logic Controller (PLC) and touch screen for control, and boasting a user-friendly human-machine interface; 4. The detection process is conducted online, without the need to disassemble the cuff/glove. 5. PLC control system, HMI. 6. Provides a result printing function for easy record-keeping, and supports data export via USB port 7. Equipped with superior control and data acquisition software for easy observation and operation. 8. The adapter equipped with an airtight connection system is suitable for all standard or customized glove flanges on the market 9. Integrity testing is conducted in both internal and external modes. The external mode allows for simultaneous testing of the sealability of both the glove and its fixed flange 10. Used for integrity testing of sleeves/gloves before or after use in isolators. 11. Developed in accordance with the GB/T25915.7-2010/ISO14644-7:2004 standard; 12. The software complies with the 21CFR part11 electronic record and electronic signature authentication requirements; 13. Meet FDA/GMP and other regulatory requirements as well as computer system validation requirements; 14. Capable of performing IOQ and PQ validation 15. Repeatable and verifiable test procedures according to ISO 14644-7 Technical Specifications: Power supply: 220V 50Hz Power: 200W Test duration: 5~8 minutes Inflation pressure: 500~2500Pa Detection accuracy (minimum aperture): 300μm Pressure display resolution: 0.1 Pa Instrument weight: 12.5kg Host dimensions: 380*252*345mm Test port specification: 255mm (other specifications can be customized) Printing function: Dot matrix micro printer Store data: 1000 sets
GIT-SE01 Glove Integrity Tester Introduction: The HTY-GIT-SE01 Glove Integrity Tester is a specialized instrument designed to test the integrity of isolators/RABS system sleeves/gloves or integrated gloves. It includes a control panel convenient for the operator, a control system, and a test port compatible with the isolator's operating port. It is capable of operating in positive pressure mode. The test results are displayed as pressure drop values per unit time. The operator determines the integrity of the tested gloves based on the reference values provided by the manufacturer.
