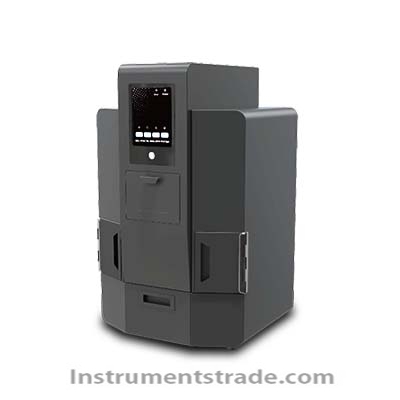

GIS-2000E gel imaging analyzer Introduction: The GIS-630E gel imaging analysis system utilizes a Sony Exmor CMOS camera and a dedicated filter set, effectively capturing faint electrophoresis bands while minimizing EB contamination and UV leakage. Equipped with a drawer-style operation platform, dual-intensity UV wavelengths, and an auto-zoom lens, this system offers a safe and convenient operational experience. Additionally, it comes with specialized analysis software for various data analysis and processing, making it ideal for the acquisition and analysis of DNA, RNA, and protein gel images in the laboratory. Features: 1. The appearance design is exquisite, the operation is convenient and user-friendly, and the metal casing makes it more sturdy and reliable. 2. The drawer-type workbench features a door design on both the left and right sides and a hidden observation window, facilitating the retrieval, observation, and cutting of the gel. A built-in gel placement center indicator light is provided to assist in positioning the gel at the center. 3. All windows and doors feature a structural design with overlapping and misaligned seals, enhancing the UV transmission and spatial sealing effects of the darkroom, and minimizing the damage of ultraviolet rays to the human body. 4. Dual-intensity transmission UV wavelength: 302nm, reflection wavelengths: 254nm and 365nm. 5. Equipped with an imported low-light high-resolution digital camera, it facilitates the capture of faint bands, real-time browsing and display, and easy operation. The six-times optical manual or automatic zoom lens allows for zooming observation of the gel. 6. The use of multi-layer coated filter sets effectively filters out background interference noise. The zoom, focus, aperture, ultraviolet (UV) light, and white light can be controlled through a computer, as well as through the panel. 7. It features automatic UV cut-off upon door opening, delayed power-off, and leakage protection, providing maximum protection for users from harm. 8. Equipped with an ultra-thin white light panel, it adopts the internationally leading phosphor screen ultraviolet white light conversion technology. Technical Specifications: Model: GIS-2000E Camera: Utilizing Sony Exmor CMOS camera Effective pixels: 5440x3648 Shutter control: Electronic shutter Pixel size: 2.4x2.4μm Shell material: galvanized sheet Filter: 590nm UV transmission area: 168mm x 210mm Visible light transmission area: 200mm x 250mm Transmission area of phosphor screen white light panel: 210mm x 260mm Wavelength of transmitted ultraviolet light source: 302nm Wavelengths of reflected ultraviolet light sources: 254nm, 365nm Transmission UV lamp power: 302nm (8W) Reflective UV lamp power: 254nm (11W) 365nm (11W) Input power supply: AC 220V, 50/60Hz Fuse: 250V 3A φ5x20 Outline dimensions: 470mm x 450mm x 755mm Net weight: 33kg
GIS-2000E gel imaging analyzer Introduction: The GIS-630E gel imaging analysis system utilizes a Sony Exmor CMOS camera and a dedicated filter set, effectively capturing faint electrophoresis bands while minimizing EB contamination and UV leakage. Equipped with a drawer-style operation platform, dual-intensity UV wavelengths, and an auto-zoom lens, this system offers a safe and convenient operational experience. Additionally, it comes with specialized analysis software for various data analysis and processing, making it ideal for the acquisition and analysis of DNA, RNA, and protein gel images in the laboratory.
