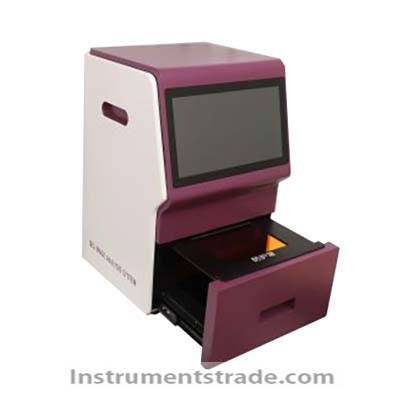

GIAS3600 Multifunction Gel Imaging System

Product ID：SHCXnjcx060

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberGIAS3600

Brand NameSXENFAN

Payment TermsTT，PAYPAL，Alibaba.com Pay

GIAS3600 Multifunction Gel Imaging System
Product Overview
The GIAS3600 Multifunction Gel Imaging System is a high-performance gel documentation and fluorescence imaging platform designed for molecular biology, biotechnology, pharmaceutical research, and life science laboratories. Equipped with a 6-megapixel scientific-grade CCD camera, ultra-high-transmittance F0.95 lens, semiconductor cooling technology, and multicolor fluorescence excitation, the system delivers exceptional sensitivity, image clarity, and quantitative analysis capability for DNA, RNA, protein gels, and fluorescence samples.
Its intelligent software enables one-click image capture, automatic exposure optimization, image processing, and data export, significantly improving laboratory efficiency and reproducibility.

Key Features
●6MP Scientific CCD Camera
High-resolution imaging with excellent signal-to-noise performance.
●Ultra-Sensitive F0.95 Lens
Imported large-aperture lens ensures maximum light collection and image brightness.
●One-Click Intelligent Imaging
Automatic exposure estimation and image acquisition without manual parameter adjustment.
●Advanced Semiconductor Cooling
Cooling temperature up to 75°C below ambient temperature for ultra-low noise imaging.
●Motorized 6-Position Filter Wheel
Standard 590nm filter with optional 535nm, 605nm, 700nm, 840nm filters.
●Multicolor Fluorescence Detection
Reflected fluorescence excitation: B470nm, G620nm, IR680.
●Space-Saving Drawer-Type Sample Platform
Easy sample loading while maintaining excellent light sealing.
●16-Bit Image Acquisition
Up to 65,536 grayscale levels for precise quantitative analysis.

Working Principle
The GIAS3600 captures light emitted or transmitted from electrophoresis gels and fluorescent samples through a high-sensitivity CCD camera and large-aperture optical lens. Fluorescent dyes or stains are excited by specific wavelength light sources, and emitted fluorescence signals pass through corresponding optical filters before reaching the detector.
The cooled CCD sensor minimizes thermal noise, enabling detection of weak fluorescence signals. Advanced software automatically optimizes exposure parameters, processes images, and performs quantitative analysis for accurate scientific research results.

Technical Specifications

Parameter	Specification
Camera Type	Scientific-Grade High-Sensitivity CCD
Resolution	6 Megapixels
Lens	Imported F0.95 Large-Aperture High-Transmission Lens
Pixel Depth	16-bit (0–65,536 Gray Levels)
Cooling Method	Semiconductor Cooling
Cooling Performance	Up to 75°C Below Ambient Temperature
Pixel Binning	1×1, 2×2, 4×4
Reflected White Light	Dual-Side LED White Light
Fluorescence Excitation	B470nm, G620nm, IR680
Filter Wheel	Motorized 6-Position
Standard Filter	590nm
Optional Filters	535nm, 605nm, 700nm, 840nm
Sample Platform	Drawer-Type Design
Imaging Area	160 × 160 mm
Image Capture	Automatic / Manual Exposure
Focusing	Automatic / Manual Focus
Data Export	Excel Compatible
Software Upgrade	Lifetime Free Upgrade

Intelligent Software Functions
Image Acquisition
●Camera, lens, and illumination control
●Automatic and manual exposure
●Automatic and manual focus
●Image acquisition and management
Image Processing
●Brightness adjustment
●Contrast optimization
●Gamma correction
●Image rotation
●Negative image conversion
●Cropping and scaling
●Image coloring
●Image merging
Data Management
●Multiple storage path options
●Direct image printing from software interface
●Excel data export
●Lifetime free software updates

Typical Applications
●DNA electrophoresis gel imaging
●RNA gel analysis
●Protein electrophoresis documentation
●Western blot imaging
●Fluorescent nucleic acid detection
●Molecular biology research
●Genetic engineering laboratories
●Pharmaceutical R&D
●Biotechnology research institutes
●Academic and university laboratories

Comparison with Conventional Gel Imaging Systems

Feature	GIAS3600	Conventional Systems
Camera Resolution	6MP Scientific CCD	1–3MP CCD/CMOS
Lens Aperture	F0.95 Ultra-Low Light	Standard Lens
Cooling Capability	75°C Below Ambient	Limited or None
Fluorescence Channels	Multicolor Fluorescence	Single or Limited Channels
Filter Wheel	Motorized 6-Position	Manual or Fixed
Exposure Control	Fully Automatic	Mostly Manual
Image Bit Depth	16-bit	8–12-bit
Data Export	Excel Compatible	Limited Formats
Software Upgrade	Lifetime Free	Often Chargeable

FAQ
Q1: What samples can the GIAS3600 image?
A: The system is suitable for DNA gels, RNA gels, protein gels, fluorescently labeled samples, and Western blot membranes.
Q2: Does the system support fluorescence imaging?
A: Yes. It supports multicolor fluorescence detection with B470nm, G620nm, and IR680 excitation sources and multiple filter options.
Q3: What is the benefit of semiconductor cooling?
A: Cooling significantly reduces CCD thermal noise, improving sensitivity for weak fluorescence signal detection.
Q4: Is manual exposure adjustment required?
A: No. The system provides intelligent one-click automatic exposure and image acquisition.
Q5: Can imaging results be exported for further analysis?
A: Yes. Images and quantitative results can be exported, including Excel-compatible data output.
Q6: Does the software require additional licensing fees?
A: No. The software includes lifetime free installation and upgrade services.
Q7: What is the imaging area size?
A: The effective imaging area is 160 mm × 160 mm, suitable for most standard electrophoresis gels.

Why Choose the GIAS3600 Multifunction Gel Imaging System?
The GIAS3600 combines a scientific-grade 6MP CCD detector, ultra-sensitive F0.95 optics, advanced cooling technology, multicolor fluorescence capability, and intelligent analysis software in a compact platform. It provides researchers with reliable, high-resolution gel documentation and fluorescence imaging while simplifying workflow through automated operation and powerful data management tools. This makes it an ideal solution for modern molecular biology and life science laboratories.
