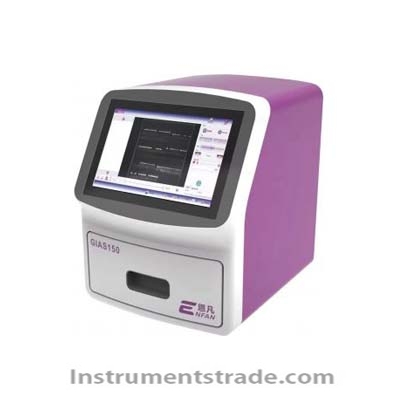

GIAS150 Mini Gel Documentation System
Product Overview
The GIAS150 Mini Gel Documentation System is a compact and integrated gel imaging platform designed for molecular biology and life science laboratories. Equipped with a 5MP scientific-grade camera, motorized fixed-focus lens, and triple-wavelength LED transillumination (blue light, UV, and white light), it delivers clear and high-contrast gel images for nucleic acid and protein analysis.
The system integrates a dual-core Intel i5 processor, 8GB RAM, 256GB SSD, and a 10.1-inch touchscreen, enabling standalone operation without an external computer.

Key Features
• 5MP scientific-grade camera for sharp and detailed gel images.
• High-sensitivity motorized fixed-focus lens ensures excellent image quality.
• Triple-wavelength LED transillumination including 470nm blue light, 302nm UV light, and white light.
• Array LED illumination design provides uniform and high-intensity lighting.
• Adjustable light intensity via rotary control for optimal imaging conditions.
• Integrated 10.1-inch touchscreen for easy operation.
• Built-in dual-core i5 computer eliminates the need for an external PC.
• Compact footprint suitable for laboratories with limited bench space.

Working Principle
The GIAS150 Gel Documentation System captures fluorescence or visible signals emitted from electrophoresis gels. Samples stained with fluorescent dyes are illuminated by UV or blue LED transillumination. The emitted light passes through a 590nm filter and is recorded by the high-resolution scientific camera. The integrated image processing system displays, stores, and manages gel images directly on the touchscreen interface.

Technical Specifications

Parameter	Specification
Camera	Scientific-grade high-resolution camera
Effective Pixels	2592 × 1944 (5 Megapixels)
Lens	Motorized fixed-focus lens
Filter	590nm
Transillumination Wavelengths	470nm Blue LED / 302nm UV LED
White Light Source	LED
Transillumination Area	140 × 170 mm
Display	10.1-inch integrated touchscreen
Built-in Computer	Dual-core Intel i5 CPU
Memory	8 GB RAM
Storage	256 GB SSD
Dimensions (L × W × H)	365 × 290 × 350 mm

Typical Applications
• DNA agarose gel imaging
• RNA electrophoresis gel documentation
• Protein gel visualization
• PCR product analysis
• Molecular cloning experiments
• Nucleic acid electrophoresis analysis
• Biotechnology research
• University teaching laboratories
• Clinical and life science research laboratories

Comparison with Conventional Gel Imaging Systems

Feature	GIAS150 Mini Gel Documentation System	Conventional Gel Imaging System
Camera Resolution	5MP scientific-grade camera	Standard industrial camera
Light Sources	UV + Blue + White LED	Usually single light source
Touchscreen Operation	Integrated 10.1" touchscreen	External computer required
Built-in Computer	Yes	Usually No
Footprint	Compact desktop design	Larger footprint
Image Quality	High sensitivity and clarity	Moderate
Ease of Use	Standalone operation	More complex setup

FAQ
Q1: What types of gels can the GIAS150 image?
The system supports DNA gels, RNA gels, agarose gels, polyacrylamide gels, and protein electrophoresis gels.
Q2: Does the system support both UV and blue light imaging?
Yes. It includes both 302nm UV LED and 470nm blue LED transillumination sources, as well as white light illumination.
Q3: Is an external computer required?
No. The system includes a built-in dual-core i5 computer with touchscreen control for independent operation.
Q4: What is the imaging resolution?
The scientific-grade camera provides a resolution of 2592 × 1944 pixels (approximately 5 megapixels).
Q5: What laboratories is the GIAS150 suitable for?
It is suitable for molecular biology laboratories, biotechnology companies, research institutes, universities, hospitals, and pharmaceutical laboratories.

Why Choose the GIAS150 Mini Gel Documentation System?
The GIAS150 combines a scientific-grade imaging camera, triple-wavelength LED illumination, integrated computing platform, and compact design into a single user-friendly solution. It provides reliable gel documentation performance for DNA, RNA, and protein analysis while reducing laboratory space requirements and simplifying daily operation.

FAQ
Q1: What types of gels can the GIAS150 image?
The system supports DNA gels, RNA gels, agarose gels, polyacrylamide gels, and protein electrophoresis gels.
Q2: Does the system support both UV and blue light imaging?
Yes. It includes both 302nm UV LED and 470nm blue LED transillumination sources, as well as white light illumination.
Q3: Is an external computer required?
No. The system includes a built-in dual-core i5 computer with touchscreen control for independent operation.
Q4: What is the imaging resolution?
The scientific-grade camera provides a resolution of 2592 × 1944 pixels (approximately 5 megapixels).
Q5: What laboratories is the GIAS150 suitable for?
It is suitable for molecular biology laboratories, biotechnology companies, research institutes, universities, hospitals, and pharmaceutical laboratories.
