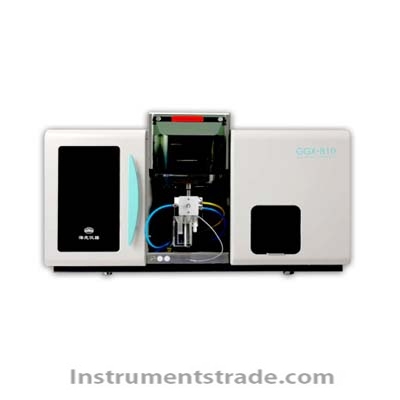

GGX-810 Atomic Absorption Spectrophotometer Introduction: The atomic absorption spectrophotometer is one of our traditional products, with a total of over twenty models having been launched into the market. The instrument boasts stable performance, high automation, a clear and smooth software interface, and simple and flexible operation. Features: 1 Deuterium lamp (D2) background correction technology 2-column 8-element lamp design, with eight lamps preheating simultaneously 3. Adopting a C-T type optical path design, with a focal length of 270mm, it features a short optical path, strong energy, and good stability. Utilizing a plane diffraction grating with 1800 grooves per millimeter, it boasts high resolution 4. Special titanium alloy combustion head, automatic ignition; fully plastic atomization chamber, strong corrosion resistance, efficient glass atomizer, easy to clean; equipped with water seal detection, waste liquid level detection, gas pressure monitoring, flame monitoring, complete safety interlock protection device and backfire prevention device, automatic gas shut-off in case of accidental flameout 5. Longitudinal heating of graphite furnace; temperature control range: room temperature to 3000℃; temperature control accuracy (at 2000℃) ≤0.5%; heating rate ≥2000℃/s; 52-position high-precision graphite furnace automatic sampler, capable of automatically configuring working curves, adding matrix modifiers as desired, and achieving sample injection accuracy ≤±0.5% 6. Adopting an integrated design of flame graphite furnace, allowing for one-click switching Technical Specifications: Wavelength range: 190-900nm Wavelength accuracy: ±0.2nm Baseline drift: <0.003A/30min Resolution: <0.2nm Characteristic concentration: Cu < 0.02 μg/mL/1% Background correction capability: >30 times Detection limit: Cu < 0.005 μg/mL Measurement accuracy (RSD): <0.8% (Cu) Wavelength repeatability: <0.1nm Optical platform type: floating type Background correction method: deuterium lamp background subtraction Instrument dimensions: (L×H×D): 870mm×510mm×525mm Power: Host 200VA
GGX-810 Atomic Absorption Spectrophotometer Introduction: The atomic absorption spectrophotometer is one of our traditional products, with a total of over twenty models having been launched into the market. The instrument boasts stable performance, high automation, a clear and smooth software interface, and simple and flexible operation.
