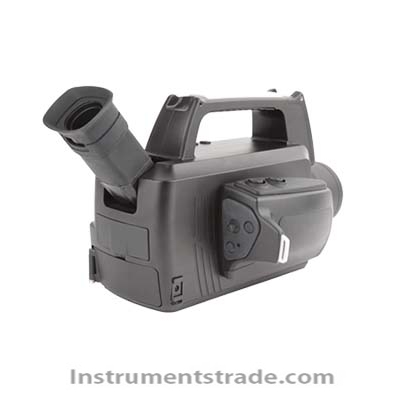

GF706 infrared gas leak detector imager

Product ID：GGFhwrx0030

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberGF706

Brand NameZJDALI

Payment TermsTT，PAYPAL，Alibaba.com Pay

GF706 infrared gas leak detector imager
Introduction:
In the power industry, SF6 gas is widely used as an insulating medium. Once SF6 gas leaks, it will cause great damage to power equipment and the environment. Therefore, detecting SF6 gas leakage has become a key monitoring work in the power industry. GF706 products can be used in The long-distance non-contact detection of SF6 gas leakage under normal working conditions of power equipment improves work efficiency and ensures the safety of inspectors.
DALI GF706 adopts advanced high-sensitivity cooled infrared focal plane detector, combined with the superior Dali infrared temperature measurement imaging technology, and launches a high-performance infrared thermal imager that integrates SF6 gas leakage point detection and temperature measurement. The product performance has reached the domestic leading and international advanced level. This product can accurately detect SF6 gas leakage points. Its thermal sensitivity is less than 0.015 °C, and it can detect extremely small temperature differences in equipment. It is a high-end thermal imaging camera with excellent performance.
Features:
1. High sensitivity (< 0.015 º C) infrared focal plane detector, clear imaging and accurate temperature measurement
2. Electrical equipment can find leakage points long distances and accurately without power outages
3. With voice recording and video recording functions
4. Combined with high-definition OLED image finder, it can be rotated to facilitate various on-site observation and use
5. Suitable for various on-site environmental testing
6. No specific background, no auxiliary light source
7. Easy to operate, suitable for single person on-site use
Technical parameters:

Detector Performance	Detector Type			Refrigerated quantum well focal plane array
	Pixel			320×256
Image performance	Field of view angle/minimum focal length			14.5 ° × 10.8 °/0.5 m	24 ° × 18 °/0.3 m	8.8 ° × 6.7 °/0.8 m
	Spatial resolution			0.79 mrad	1.13 mrad	0.48 mrad
	Thermal sensitivity			≤0.015℃@30℃
	Sensitivity of detecting SF6 gas			≤ 0.001 ml/s
	Frame rate			60Hz
	focus			Auto/Electric Focus/Manual (Optional)
	Wavelength range			10.3-10.7 um, peak 10.55 um
	Built-in visible light camera			5 megapixel CMOS with LED light
Image display	Image finder			High Definition 0.6 "Color OLED with Magnification
	LCD screen			High resolution 5 "color digital touch LCD screen
measurement	Temperature measuring range			-40℃- +500℃
	Accuracy			± 2 ℃ or ± 2% (reading range), whichever is greater
	Temperature measurement correction			Automatic/Manual
	Measurement Mode			Real-time 10 movable points, 5 movable areas (maximum temperature, lowest temperature capture, average temperature measurement), line temperature measurement, isothermal analysis, temperature difference measurement, temperature alarm (sound, color)


	Image control	Color palette		11 color palettes available (including iron red, rainbow, black and white, black and white inverted, etc.)
		Image adjustment		Automatic/manual adjustment of contrast, brightness
	Settings function			Date/Time, Temperature in ℃/℉/K, Language
	Emissivity correction			0.01 to 1.0 emissivity adjustable, or emissivity corrected by a predefined material emissivity table
	Background temperature correction			Automatic, based on the input background temperature
	Atmospheric transmittance correction			Automatic, according to the input target distance, relative humidity, ambient temperature
Image storage	Memory card			8G SD Card, Expandable
	Storage method			Manual/automatic single-frame image storage, continuous visible light, infrared recording
	Infrared image format		Single frame	JPEG format with 14-bit measurement data image
			dynamic	MPEG-4
	Visible light image format		Single frame	JPEG
			dynamic	MPEG-4
	Phonetic annotation			60 seconds of voice recording, stored with image (built-in microphone)
Laser pointer	Laser pointer			Secondary, 1mW/635nm red
Power system	Battery Type			Lithium battery, rechargeable
	Battery operating time			2 hours of continuous work
	Charging Type			Smart charger or power adapter (optional) Native charging
Power system	Power saving mode			have
	External power supply			10-15V DC
Environmental parameters	Operating temperature			-15℃-+50℃
	humidity			≦ 90% (non-condensing)
	Level of protection			IP54
Physical properties	Weight			2.5 Kg
	Dimensions			270mm × 172mm × 177mm
Interface	Power Interface			have
	Video Output			Standard analog video interface

Introduction:
In the power industry, SF6 gas is widely used as an insulating medium. Once SF6 gas leaks, it will cause great damage to power equipment and the environment. Therefore, detecting SF6 gas leakage has become a key monitoring work in the power industry. GF706 products can be used in The long-distance non-contact detection of SF6 gas leakage under normal working conditions of power equipment improves work efficiency and ensures the safety of inspectors.
DALI GF706 adopts advanced high-sensitivity cooled infrared focal plane detector, combined with the superior Dali infrared temperature measurement imaging technology, and launches a high-performance infrared thermal imager that integrates SF6 gas leakage point detection and temperature measurement. The product performance has reached the domestic leading and international advanced level. This product can accurately detect SF6 gas leakage points. Its thermal sensitivity is less than 0.015 °C, and it can detect extremely small temperature differences in equipment. It is a high-end thermal imaging camera with excellent performance.
