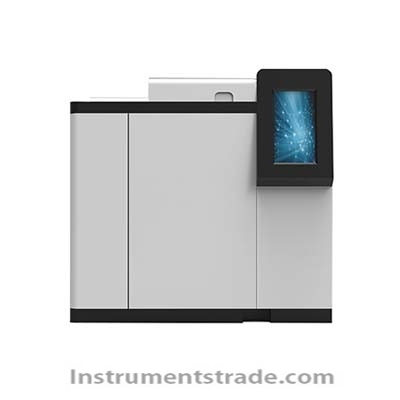

GC-9860 gas chromatograph Features: 1. Higher efficiency in touchscreen intelligent control interaction Equipped with a 7-inch color capacitive touch screen, it offers rich display content and a more intelligent interactive experience. Chromatographic method conditions can be easily set through touchscreen interaction, enhancing the efficiency of experimental analysis. The high-sensitivity and high-resolution smart screen enhances the display content with greater delicacy and richness. With its expanded display and operation areas, it presents a diverse range of content. This intuitive and convenient operation method significantly reduces the operational difficulty for users, boosts work efficiency, fulfills users' pursuit of details, and provides users with an enhanced human-computer interaction experience. 2. Enhance performance and quality, and pursue durability Classic combination mechanical valve air circuit control, high-precision metal processing technology enhance the excellent quality of the instrument; sturdy and durable, with low maintenance costs; all air circuit pressures and flow rates are electronically displayed, replacing mechanical pressure gauges for more accurate and direct display. 3. A brand-new temperature control system for data collection The advanced and brand-new temperature sensing structure, coupled with the internal heat exchange design, enables faster and more sensitive capture of temperature fluctuations. This allows the instrument to heat up and cool down more quickly and uniformly, achieving a temperature control accuracy of 0.01℃. It supports 99-step programmed temperature increase, and this precise control system ensures ultra-high repeatability and accuracy during the analysis process, 4. Upgrade the small volume injector The new sample injector adopts a brand-new design concept and advanced manufacturing materials, significantly enhancing the stability and durability of the instrument. It supports multiple sample injection modes, fully demonstrating the high flexibility and scalability of GC. It can install up to 3 sample injectors simultaneously, with 6 different options available, enabling multi-channel detection for complex applications on the same instrument and effectively expanding chromatographic applications 5. A newly upgraded detector Each detector adopts a modular design, facilitating user selection and configuration. It offers a variety of detectors such as FID, TCD, ECD, FPD, and NPD for users to choose from. The system can accommodate 1-4 detectors simultaneously. It supports dual FID, dual TCD, dual ECD, or dual NPD operations. The TCD features dual post-column makeup gas, allowing for use with single, dual, and capillary columns. 6. Chromatographic workstation and operating system With the support of the IoT operating system, real-time operational status and analysis results can be remotely controlled. The data analysis software simplifies data analysis, integration, reporting, and calibration, making it particularly suitable for users who handle large amounts of data or require compliance software functions. It achieves comprehensive intelligent management and improves work efficiency. Technical parameters: 1) Control temperature range: Above room temperature +8°C to 450°C Heating rate: The heating rate can reach 65 °C/min Cooling rate: from 300°C to 100°C within 3.5 minutes (room temperature 25°C) Temperature accuracy: not greater than ±0.01℃ Temperature gradient: ±1% (temperature range 100℃-350℃) programmed temperature rise Time setting: 9999 (min) Program order: 99th order 2) Technical specifications of the detector Flame Ionization Detector (FID) Detection limit: Mt≤2×10-12g/s (n-hexadecane); Noise: ≤2×10-14A (0.02mv) Drift: ≤1.5×10-13A/30min (0.15mv/0.5h) Linear range: ≥107 Operating temperature: ≤450℃ Thermal conductivity detector (TCD) Sensitivity: S≥10000mV.ml/mg (benzene) Noise: ≤20μV Baseline drift: ≤150μv/30min Electron Capture Detector (ECD) Detection limit: ≤1×10-14g/ml (r666) Linear range: 104 Radioactive source: 63Ni Flame Photometric Detector (FPD) Detection limit: (P) ≤ 1×10-12 g/s (S)≤1×10-12g/s Linear range: 105 (P) 103 (S)
Features: 1. Higher efficiency in touchscreen intelligent control interaction Equipped with a 7-inch color capacitive touch screen, it offers rich display content and a more intelligent interactive experience. Chromatographic method conditions can be easily set through touchscreen interaction, enhancing the efficiency of experimental analysis. The high-sensitivity and high-resolution smart screen enhances the display content with greater delicacy and richness. With its expanded display and operation areas, it presents a diverse range of content. This intuitive and convenient operation method significantly reduces the operational difficulty for users, boosts work efficiency, fulfills users' pursuit of details, and provides users with an enhanced human-computer interaction experience. 2. Enhance performance and quality, and pursue durability Classic combination mechanical valve air circuit control, high-precision metal processing technology enhance the excellent quality of the instrument; sturdy and durable, with low maintenance costs; all air circuit pressures and flow rates are electronically displayed, replacing mechanical pressure gauges for more accurate and direct display. 3. A brand-new temperature control system for data collection The advanced and brand-new temperature sensing structure, coupled with the internal heat exchange design, enables faster and more sensitive capture of temperature fluctuations. This allows the instrument to heat up and cool down more quickly and uniformly, achieving a temperature control accuracy of 0.01℃. It supports 99-step programmed temperature increase, and this precise control system ensures ultra-high repeatability and accuracy during the analysis process, 4. Upgrade the small volume injector The new sample injector adopts a brand-new design concept and advanced manufacturing materials, significantly enhancing the stability and durability of the instrument. It supports multiple sample injection modes, fully demonstrating the high flexibility and scalability of GC. It can install up to 3 sample injectors simultaneously, with 6 different options available, enabling multi-channel detection for complex applications on the same instrument and effectively expanding chromatographic applications 5. A newly upgraded detector Each detector adopts a modular design, facilitating user selection and configuration. It offers a variety of detectors such as FID, TCD, ECD, FPD, and NPD for users to choose from. The system can accommodate 1-4 detectors simultaneously. It supports dual FID, dual TCD, dual ECD, or dual NPD operations. The TCD features dual post-column makeup gas, allowing for use with single, dual, and capillary columns. 6. Chromatographic workstation and operating system With the support of the IoT operating system, real-time operational status and analysis results can be remotely controlled. The data analysis software simplifies data analysis, integration, reporting, and calibration, making it particularly suitable for users who handle large amounts of data or require compliance software functions. It achieves comprehensive intelligent management and improves work efficiency.
