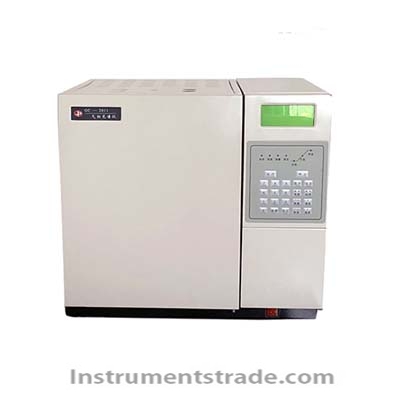

GC-2011 gas chromatograph

Product ID：FSqi059

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberGC-2011

Brand NameSDJINPU

Payment TermsTT，PAYPAL，Alibaba.com Pay

GC-2011 gas chromatograph
Introduction:
GC-2011 is a multi-functional gas chromatograph with a packed column inlet and a capillary inlet, and the detector is single FID or TCD, which is cost-effective.
Features:
1. Chinese large-screen LCD display, rich and intuitive display content, and convenient setting parameters.
2. A microcomputer automatic ignition device is adopted.
3. Stable and reliable digital zero adjustment is adopted to avoid baseline instability caused by potentiometer zero adjustment.
4. It has five-stage temperature programming function.
5. The intelligent rear door automatic cooling system with frequency conversion function has a fast cooling speed and realizes near room temperature operation in the true sense.
6. The tracking temperature rise method adopted in the column chamber avoids the contamination of the detector caused by the rapid temperature rise of the column chamber.
7. Single-column, double-gas path structure, basically configured as FID or TCD detector.
8. At the same time, it is equipped with a packed column vaporization chamber and an independent capillary system. It has a capillary split/non-split sampler and tail blowing system with excellent performance. It can easily install small-diameter capillary columns, large-diameter capillary columns and various packed columns.
9. It has power-down protection function and can automatically memorize the set parameters. It has anti-power sudden interference function and stopwatch timing function.
10. With over-temperature protection function, it will automatically cut off power and give an alarm when the temperature exceeds the set upper limit. If the temperature of any channel exceeds the set temperature, it will automatically stop heating; There are Chinese prompts of fault causes and alarm prompts.
11. It has gas cut-off/gas leakage protection and Chinese prompt functions, which can protect TCD tungsten wire and chromatographic column from damage to the greatest extent.
12. It has a fault self-diagnosis function, which can display Chinese fault causes and alarm prompts at any time.
Technical parameters:
Temperature control technical parameters:
Temperature control range: room temperature + 8 ℃-420 ℃, temperature control objects: column box, detector, thermal conductivity cell, sampler
Temperature control accuracy: ± 0. 1 ℃ within 200 ℃; ± 0.2 °C above 200 °C
Temperature program: fifth-order linear lift
Lift rate: 1-30 ℃/min, 0.1 ℃ increment
Technical parameters of gas chromatograph detector:

Detector	Sensitivity/sensitivity	Noise	Drift	linear	peculiarity
FID	Mf ≤ 2 × 10 − 11 g/s (benzene)	≤ 5 × 10-13A	≤ 5 × 10-12A/30min	≥107	Platinum ignition wire, corundum porcelain nozzle
TCD	S ≥ 3000 mV.ml/mg (benzene)	≤ 0.02 mV	≤ 0.1 mV/h	≥105	Imported rhenium tungsten wire, constant current power supply
Note: External dimensions: 540 * 470 * 460mm, whole machine weight: 50kg, input power supply: AC 220V ± 10% 50HZ 2KW
