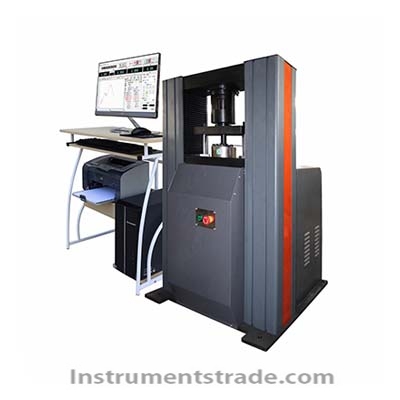

GBW-60 Automatic Cupping Tester

Product Introduction
The GBW-60 automatic cupping tester is a microcomputer-controlled testing machine designed to evaluate the ductility and plastic deformation behavior of metal sheets and strips. It measures the cupping depth of a specimen under controlled punching and clamping forces, helping assess sheet metal formability and directional differences in deformation behavior.
Compliant with the Chinese standard GB/T 4156-2007, Metallic Materials—Sheet and Strip—Cupping Test, the GBW-60 is equipped with high-precision sensors for testing thin metal sheets with thicknesses ranging from 0.05 to 2 mm. It is suitable for quality control, material evaluation, and metal forming research.

Performance Features
• Automatic testing: Microcomputer-controlled operation supports consistent and repeatable cupping tests.
• High-precision measurement: Cupping depth resolution of 0.01 mm enables detailed evaluation of metal sheet ductility.
• Wide specimen thickness range: Tests metal sheets from 0.05 to 2 mm, including ultra-thin materials.
• High testing capacity: Maximum punching force of 60 kN and maximum clamping force of 10 kN.
• Adjustable test speed: Testing speed ranges from 0.01 to 200 mm/min.
• Standardized tooling: Supplied with standard punching and die dimensions for GB/T 4156-2007 testing.
• Custom tooling options: Non-standard dies can be supplied on request, with configurations available for applicable international standards.

Working Principle
The GBW-60 automatic cupping tester clamps a metal sheet specimen between the die and clamping components. A spherical punch then moves against the specimen at a controlled speed, progressively deforming the sheet into a cup-shaped indentation.
The instrument measures the cupping depth at the specified test endpoint, providing an indication of the material's ability to withstand plastic deformation without cracking. The results support comparisons of sheet metal formability, ductility, and deformation behavior under standardized test conditions.

Technical Parameters

Parameter	Specification
Model	GBW-60
Test method	Cupping test
Applicable standard	GB/T 4156-2007
Specimen thickness	0.05–2 mm
Specimen width	90–100 mm
Punch stroke	40 mm
Clamping piston stroke	40 mm
Maximum punching force	60 kN
Maximum clamping force	10 kN
Cupping depth resolution	0.01 mm
Test speed	0.01–200 mm/min
Standard punch ball diameter	φ20 ± 0.05 mm
Standard die aperture diameter	φ33 ± 0.1 mm
Standard fixing die aperture diameter	φ27 ± 0.05 mm
Hydraulic oil	N46 hydraulic oil
Dimensions (L × W × H)	700 × 360 × 1700 mm
Power supply	AC 220 V
Weight	Approximately 500 kg

Note: Non-standard tooling and configurations for applicable international test standards are available upon request. Confirm the required standard and tooling specifications before ordering.

Application Scenarios
• Metal manufacturing: Evaluating the formability of sheet and strip materials.
• Automotive industry: Assessing the ductility of sheet metal used in vehicle body manufacturing.
• Steel and non-ferrous metal industries: Testing thin steel, aluminum, copper, and other suitable metal sheets.
• Quality control laboratories: Comparing material batches and verifying incoming sheet metal quality.
• Research and development: Studying plastic deformation behavior and material performance during forming processes.
• Third-party testing laboratories: Conducting standardized metal sheet cupping tests for material evaluation.

GBW-60 vs. Conventional Cupping Testers

Comparison Item	GBW-60 Automatic Cupping Tester	Conventional Cupping Tester
Operation	Microcomputer-controlled automatic testing	May require more manual operation
Measurement resolution	0.01 mm	Depends on the instrument
Specimen thickness	0.05–2 mm	Depends on the model
Maximum punching force	60 kN	Model-dependent
Test speed	Adjustable from 0.01 to 200 mm/min	Depends on the drive system
Standard tooling	Specified punch and die dimensions	Depends on the configuration
Custom tooling	Available on request	Depends on the manufacturer

The GBW-60 combines automatic control, high-resolution cupping depth measurement, and a broad testing speed range, making it suitable for laboratories requiring controlled and repeatable sheet metal ductility testing.

Frequently Asked Questions (FAQ)
1. What is the GBW-60 automatic cupping tester used for?
It evaluates the ductility and plastic deformation behavior of metal sheets and strips through a standardized cupping test.
2. Which testing standard does the GBW-60 comply with?
The machine is designed to comply with GB/T 4156-2007, Metallic Materials—Sheet and Strip—Cupping Test.
3. What is the supported specimen thickness range?
It supports metal sheet specimens with thicknesses from 0.05 to 2 mm.
4. What is the maximum punching force?
The maximum punching force is 60 kN, while the maximum clamping force is 10 kN.
5. How accurately can cupping depth be measured?
The specified cupping depth resolution is 0.01 mm.
6. Can the test speed be adjusted?
Yes. The testing speed is adjustable from 0.01 to 200 mm/min.
7. What are the standard punch and die dimensions?
The standard punch ball diameter is φ20 ± 0.05 mm, the standard die aperture is φ33 ± 0.1 mm, and the standard fixing die aperture is φ27 ± 0.05 mm.
8. Can the GBW-60 be configured for international standards?
Non-standard tooling and configurations for applicable international standards, including relevant American and European methods, may be available on request. Confirm compatibility with the specific standard before purchase.
9. What are the installation requirements?
The instrument requires an AC 220 V power supply and N46 hydraulic oil. Its overall dimensions are 700 × 360 × 1700 mm, and its weight is approximately 500 kg.
