Sales GBS Electronic Tensile Tester，Manufacturer

Position: Home > > Physical property test > Testing machine > Tensile testing machine > GBS Electronic Tensile Tester

GBS Electronic Tensile Tester

Product ID：WSHll035

Price: Please inquire PDF Format

Supply Ability:20 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberGBS

Brand NameGUANGZHOUBIAOJI

Payment TermsT/T, paypal

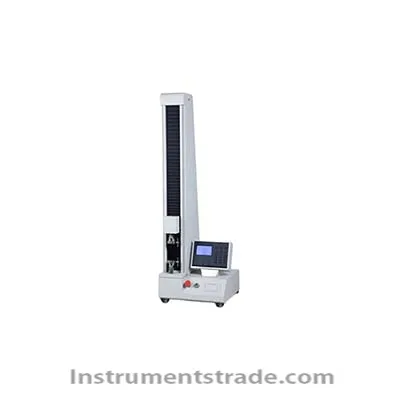

GBS Electronic Tensile Tester
Introduction
GBS type single-column electronic tensile machine is suitable for stretching of various plastic film, paper aluminum-plastic composite film, various soft elastic materials, rubber sheets, adhesive tapes, adhesives, paper, non-woven fabrics, etc. Mechanical properties such as peeling and heat sealing; used in quality inspection, drug inspection, scientific research, packaging, film, food, pharmaceutical, and daily chemical industries.
Executive standards: GB8808, GB13022, GB/T1040, GB4850, GB/T7753, GB/7754, GB/T453, GB/T17200, GB/T16578.1, QB/T1130, GB/T 2791, GB/T 2790, GB /T 2792, GB/T 7122, GB/T 10004, GB/T 17590, JJG 139, GB/T 6344, GB 10808, YBB00112003, YBB00102003, YBB00132002, YBB00202004, ASTM D828, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ISO37, JIS P8113, QB/T 2358
Features
1. Can test stretching, stripping, and sealing strength.
2. User can set various parameters like width, speed, thickness and distance.
3. Results are shown on LCD screen.
4. Can print out testing results with built-in thermal printer.
5. 3 levels of security protection make the experiment safer.
6. High sampling speed (50 times/s) and accurate data.
7. Core parts are imported, with high precision and durability.
8. Table standing design for sitting operation, easy and comfortable.

Technical parameter

Force range	0-300N, 800% elongation rate
Force accuracy	within ±1% of the displayed value (grade 1)
Test speed	250mm/min (Optional: 0~300mm/min infinitely variable speeds)
Displacement	within ±1% of the displayed value
Test width range	30mm
Travel distance range	600mm
Instrument size	600×500×1300mm
Power	300W
Power supply	AC 220V, 50Hz
Weight	65kg

Introduction
GBS type single-column electronic tensile machine is suitable for stretching of various plastic film, paper aluminum-plastic composite film, various soft elastic materials, rubber sheets, adhesive tapes, adhesives, paper, non-woven fabrics, etc. Mechanical properties such as peeling and heat sealing; used in quality inspection, drug inspection, scientific research, packaging, film, food, pharmaceutical, and daily chemical industries.
Executive standards: GB8808, GB13022, GB/T1040, GB4850, GB/T7753, GB/7754, GB/T453, GB/T17200, GB/T16578.1, QB/T1130, GB/T 2791, GB/T 2790, GB /T 2792, GB/T 7122, GB/T 10004, GB/T 17590, JJG 139, GB/T 6344, GB 10808, YBB00112003, YBB00102003, YBB00132002, YBB00202004, ASTM D828, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ISO37, JIS P8113, QB/T 2358
