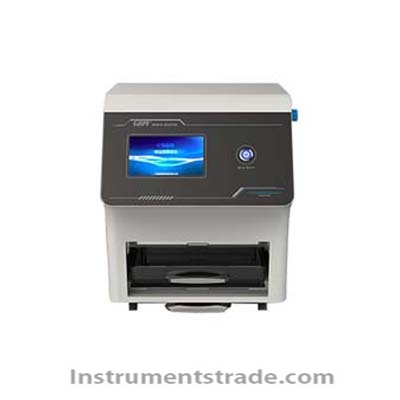

GBN200G type withstand voltage tester Introduction: GBN200G withstand voltage tester is a precision equipment developed and manufactured based on the requirements of GB standards and market demand. It is specially used to test the pressure resistance and bursting strength of various packaging bags. It is an ideal testing equipment for quality inspection, drug inspection, scientific research, packaging, film, food, medicine, daily chemical and other industries. characteristic: 1. Pneumatic pressure, easy operation and simple process; 2. Set the pressure value, and the instrument will keep the set value for compression; 3. Pressure can be adjusted during compression; 4 LCD, real-time display parameters Technical parameters: Pressure range: 100~700 kpa Air pressure range: 0.1~0.7 MPa Pressure accuracy: ± 0.8% Test stroke: 0~100 mm Compression surface size: 280 mm × 180 mm Air source interface: Φ 6 mm air tube Number of test plates: 1 Overall dimension: 394 mm × 355 mm × 475 mm Weight: 28.8 kg Power: 100 W Power supply: AC 220 V, 50 Hz
Introduction: GBN200G withstand voltage tester is a precision equipment developed and manufactured based on the requirements of GB standards and market demand. It is specially used to test the pressure resistance and bursting strength of various packaging bags. It is an ideal testing equipment for quality inspection, drug inspection, scientific research, packaging, film, food, medicine, daily chemical and other industries.
