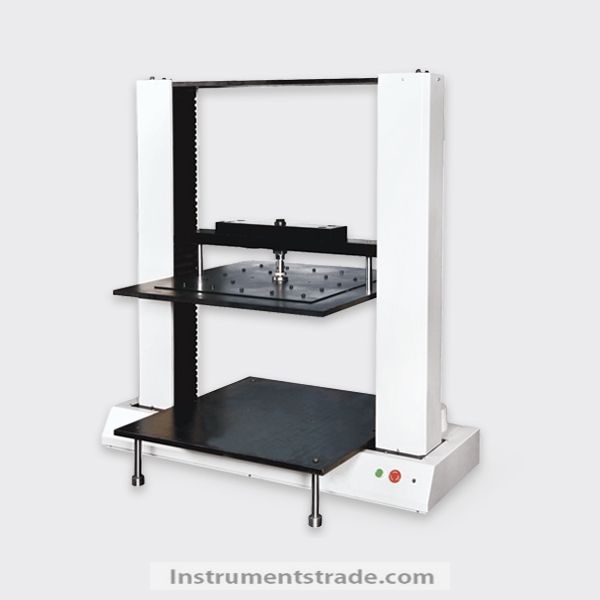

GBN2000Z Box Compression Tester

Product ID：HZBZyssyj027

Price: Please inquire PDF Format

Supply Ability:40 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberGBN2000Z

Brand NameGUANGZHOUBIAOJI

Payment TermsT/T, paypal

GBN2000Z Box Compression Tester
Introduction
The GBN2000Z pressure tester is used to carry out pressure, deformation and stacking tests on transport packages such as corrugated boxes and honeycomb boxes.
Execution standards: GB/T 16491, GB 4857.16.ASTMD642, ASTM D4169, TAPPI T804, ISO2872, ISO12048, JIS Z0212
Features
1. Lifting device: can impact with constant speed or changing speed.
2. With built-in printer.
3. Can keep pressure in a set period of time.
4. 9” LCD display; real time curve display.
5. Wholly automatic, auto return after completion.
6. Powerful data processing, auto calculation; free switch of units (N, kgf, lbf).
7. Malfunction auto warning, sensor auto correction.
8. Built-in electronic clock, display test time and date, and print with date.
9. With computer port, can connect to computer and controlled by computer, and print more detailed report.
Technical parameter

Maximum load	20KN
Valid test range	0.4%-100%
Test accuracy	±1% of displayed value (grade 1)
Force resolution	0.001N
Valid test space	800×800×800mm
Speed range	0.01-200mm/min (infinitely variable speeds)
Speed accuracy	±1% of displayed value
Displacement	±1% of displayed value
Lifting device speed	200mm/min, 10mm/min
Instrument size	1360×500×1400mm

Introduction
The GBN2000Z pressure tester is used to carry out pressure, deformation and stacking tests on transport packages such as corrugated boxes and honeycomb boxes.
Execution standards: GB/T 16491, GB 4857.16.ASTMD642, ASTM D4169, TAPPI T804, ISO2872, ISO12048, JIS Z0212
