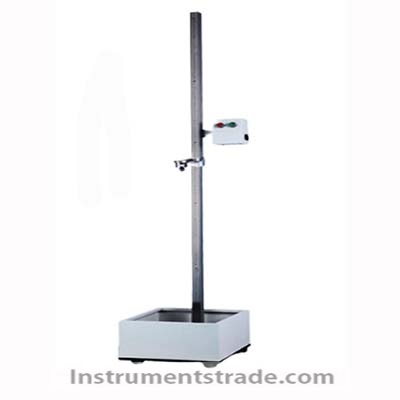

GB-LQ Falling Ball Impact Tester

Position: Home > > Industry specific instrument > Special equipment for packaging industry > Falling dart impact tester > GB-LQ Falling Ball Impact Tester

GB-LQ Falling Ball Impact Tester

Product ID：HZBZlbcj014

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberGB-LQ

Brand NameGZBIAOJI

Payment TermsTT，PAYPAL，Alibaba.com Pay

GB-LQ Falling Ball Impact Tester

Product Introduction
The GB-LQ Falling Ball Impact Tester is a professional impact testing instrument designed to evaluate the impact resistance and structural integrity of finished products, components, plastics, and packaging materials. It simulates collision or impact conditions that products may experience during installation, handling, transportation, or use.
The tester can be used for electronics, electrical appliances, household appliances, plastics, communication equipment, and packaging materials. By applying a controlled falling-ball impact, it helps determine whether a product structure has defects or insufficient impact resistance.
The GB-LQ features simple operation, adjustable impact height, multiple steel ball weights, and automatic data processing for convenient and reliable impact testing.
Applicable Standards: YBB 0021-2005, GB/T 14485-1993

Key Features
• Adjustable impact height: Impact height can be freely adjusted from 20 to 2000 mm.
• Multiple impact weights: Supports various steel ball weights for different testing requirements.
• Accurate impact testing: Controlled drop height and standardized test weights provide repeatable test conditions.
• Simple operation: User-friendly structure makes routine impact testing convenient.
• Automatic data processing: Test results can be processed automatically, reducing manual calculation.
• Wide application range: Suitable for electronics, electrical appliances, plastics, communication equipment, and packaging.
• Large testing range: Accommodates specimens up to 150 × 150 mm.
• Packaging testing capability: Supports steel ball configurations for food and pharmaceutical packaging applications.

Working Principle
The GB-LQ Falling Ball Impact Tester evaluates impact resistance by allowing a specified steel ball to fall freely from a controlled height onto the test specimen.
The operator selects the appropriate steel ball according to the test requirement and adjusts the impact height between 20 and 2000 mm. The specimen is securely positioned on the test fixture, after which the steel ball is released from the preset height.
The impact energy applied to the specimen is determined by the steel ball mass and drop height. After impact, the specimen is inspected for cracking, deformation, breakage, leakage, or other structural damage. The test results can be automatically processed to assist in evaluating product impact resistance and structural reliability.

Technical Parameters

Parameter	Specification
Product Name	Falling Ball Impact Tester
Model	GB-LQ
Applicable Standards	YBB 0021-2005; GB/T 14485-1993
Impact Height	20–2000 mm, freely adjustable
Steel Ball Weights	50 g, 100 g, 250 g, 640 g (food packaging); 60 g, 100 g (pharmaceutical packaging)
Specimen Holder Size	150 × 150 mm
Maximum Specimen Size	≤150 × 150 mm
Dimensions	450 × 500 × 2200 mm
Rated Power	1000 W
Power Supply	AC 220 V, 50 Hz

Applications
The GB-LQ Falling Ball Impact Tester is suitable for impact resistance testing of:
• Plastic packaging: Evaluating impact resistance of plastic packaging materials and containers.
• Food packaging: Testing packaging materials using specified steel ball weights.
• Pharmaceutical packaging: Impact testing of pharmaceutical packaging materials.
• Electronic products: Evaluating structural resistance to accidental impact.
• Electrical appliances: Testing housings and components for collision resistance.
• Household appliances: Assessing structural integrity during handling and installation.
• Communication equipment: Testing product housings and components.
• Plastic products: Evaluating the impact resistance of molded plastic components.
• Finished products and components: Simulating collision conditions during installation, handling, or use.

GB-LQ vs. Conventional Impact Testing

Feature	GB-LQ Falling Ball Impact Tester	Conventional Manual Impact Testing
Impact Method	Controlled falling-ball impact	Manual or less standardized impact
Drop Height	20–2000 mm adjustable	Often manually controlled
Impact Weights	Multiple standardized steel balls	Limited selection
Specimen Positioning	Dedicated 150 × 150 mm holder	May vary
Data Processing	Automatic	Often manual
Test Repeatability	High under standardized conditions	More operator dependent
Packaging Applications	Food and pharmaceutical packaging	Depends on equipment
Operation	Simple and standardized	Typically more labor intensive
Application Range	Electronics, plastics, appliances, packaging	Usually application specific

FAQ
1. What is the GB-LQ Falling Ball Impact Tester used for?
The GB-LQ is used to evaluate the impact resistance and structural integrity of finished products, components, plastics, and packaging materials.
2. What products can be tested?
It can be used for electronic products, electrical appliances, household appliances, plastics, communication equipment, food packaging, pharmaceutical packaging, and related components.
3. What is the adjustable impact height?
The impact height can be freely adjusted from 20 to 2000 mm, allowing different impact energy conditions to be simulated.
4. What steel ball weights are available?
For food packaging, the standard options include 50 g, 100 g, 250 g, and 640 g. For pharmaceutical packaging, 60 g and 100 g options are available.
5. What is the maximum specimen size?
The maximum recommended specimen size is 150 × 150 mm, matching the specimen holder dimensions.
6. Does the GB-LQ automatically process test data?
Yes. The instrument features automatic data processing, which helps simplify testing and reduce manual calculation.
7. Which standards does the GB-LQ comply with?
The GB-LQ is designed according to YBB 0021-2005 and GB/T 14485-1993.
8. Why is falling-ball impact testing important?
Falling-ball impact testing helps identify cracking, deformation, breakage, or other structural weaknesses that may occur when a product or package experiences accidental impact during handling, installation, transportation, or use.
