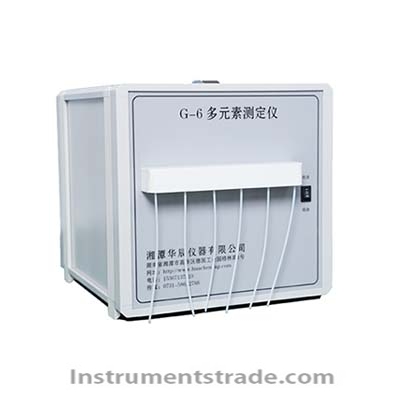

G-6 silicate rapid analyzer Introduction: The G-6 silicate rapid analyzer is designed and produced according to the accuracy requirements of the national analytical method standards for elements (GB/T4734-1996, QB/T2578-2002). By using a stable, fast, and accurate colorimetric system and system analysis method, the scale is extended to the right with photocurrent and to the left with micro current, achieving large-scale linearization and avoiding problems such as deviation from Beer's law for solutions with high concentrations, deviation from linearity for high component content, and poor sensitivity for analyzing low component content in photometric analysis. Through continuous feedback and improvement from customers, the analysis results have become more accurate and reliable. The lower limit for measuring the content of some elemental components can be extended to 0.001%. G-6 is an improved silicate analyzer with six liquid absorption channels, making the detection speed faster. characteristic: 1. Add high-precision micro liquid extraction devices to save 80% of reagents. 2. Adopt a more advanced liquid suction system to make the results more accurate. 3. Redesigned more advanced channels to make readings more stable. 4. The instrument is more compact and easy to carry when going out. 5. The lower limit for measuring the content of some elemental components can be extended to 0.001% Technical parameters: Accuracy: The measurement accuracy of this device can meet or exceed the accuracy requirements in the national analytical method standards for relevant elements (GB/T4734-1996, QB/T2578-2002). Measurement channels: 6 Measurement stability: Measure a reading change of ± 1 word within 5 minutes. Test repeatability: Repeat the measurement of the same sample solution with a reading of ± 1 word. Detection speed: It takes about 2 hours to complete the determination of SiO2, Al2O3, Fe2O3, TiO2, K2O, Na2O, CaO, and MgO in 4 conventional samples. The determination of other elements can be completed within 4 hours. Number of continuous measurement samples: 20. Power supply: 220V, 50Hz Whole machine power: 100W Environmental temperature: 5-30 ℃ Relative humidity: ≤ 85%
Introduction: The G-6 silicate rapid analyzer is designed and produced according to the accuracy requirements of the national analytical method standards for elements (GB/T4734-1996, QB/T2578-2002). By using a stable, fast, and accurate colorimetric system and system analysis method, the scale is extended to the right with photocurrent and to the left with micro current, achieving large-scale linearization and avoiding problems such as deviation from Beer's law for solutions with high concentrations, deviation from linearity for high component content, and poor sensitivity for analyzing low component content in photometric analysis. Through continuous feedback and improvement from customers, the analysis results have become more accurate and reliable. The lower limit for measuring the content of some elemental components can be extended to 0.001%. G-6 is an improved silicate analyzer with six liquid absorption channels, making the detection speed faster.
