FY-W1 Wind Speed Alarm Instrument

Position: Home > > Environmental monitoring and analysis > Other gas monitoring facilities > Anemometer > FY-W1 Wind Speed Alarm Instrument

FY-W1 Wind Speed Alarm Instrument

Product ID：HQQTfs007

Price: Please inquire PDF Format

Supply Ability:200SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberFY-W1

Brand NameFUYUANFEIKE

Payment TermsTT，PAYPAL，Alibaba.com Pay

FY-W1 Wind Speed Alarm Instrument
Product Overview

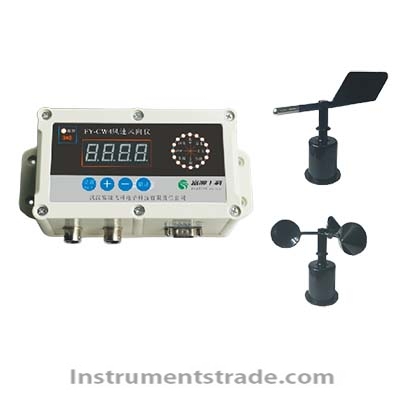

The FY-W1 Wind Speed Alarm Instrument is an intelligent wind monitoring system consisting of a high-precision wind speed sensor and a smart data acquisition controller. It accurately measures wind speed and Beaufort wind force while providing audible and visual over-speed alarms together with relay output control for automatic safety protection.
Designed in accordance with the technical requirements of the JB9462-88 Tower Crane Design Specification, the FY-W1 offers fast response, reliable performance, and easy installation. Its high-brightness LED display ensures excellent visibility in both daylight and nighttime environments. Users can conveniently set custom wind speed alarm thresholds using the front-panel shortcut keys.
Suitable for construction, lifting equipment, industrial facilities, ports, and other outdoor applications, the FY-W1 helps improve operational safety by continuously monitoring wind conditions.

Key Features
●High-brightness LED display for wind speed and wind force
●Switchable display between wind speed (m/s) and Beaufort wind level
●Audible buzzer and flashing red light for over-speed alarm
●Relay output with dual-contact switch for external equipment control
●Built-in multiple protection functions for stable operation
●Scientific waterproof wall-mounted enclosure design
●Fast response time of less than 1 second
●Simple alarm threshold configuration via front-panel keys
●Optional black or orange-red wind speed sensor

Working Principle
The wind speed sensor continuously detects ambient wind velocity and transmits the measurement to the intelligent controller. The controller processes the signal in real time and displays the current wind speed or wind force on the LED screen.
When the measured wind speed exceeds the preset alarm threshold, the system immediately activates:
●Audible buzzer alarm
●Flashing red warning light
●Relay output for external alarm systems or equipment shutdown
The instrument continuously samples wind conditions automatically, ensuring rapid response to changing environmental conditions.

Technical Specifications

Parameter	Specification
Wind Speed Range	0–70 m/s
Wind Speed Resolution	0.1 m/s
Wind Speed Accuracy	±0.3 m/s
Wind Speed Response Time	<1 s
Wind Force Range	Level 0–17
Wind Force Resolution	1 Level
Wind Force Accuracy	±1 Level
Wind Force Response Time	<1 s
Sampling Interval	<1 second (automatic continuous sampling)
Display	High-brightness LED digital display (Wind Speed/Wind Force switchable)
Alarm Method	Audible buzzer + flashing red warning light
Relay Output	Dual-contact relay; 10A @125VAC, 5A @250VAC / 30VDC
Power Supply	AC220V, DC12V or DC24V (optional)
Operating Temperature	-50°C to +80°C
Operating Humidity	0–95% RH
Controller Dimensions	165 × 80 × 50 mm

Typical Applications
The FY-W1 Wind Speed Alarm Instrument is widely used for:
●Tower crane wind safety monitoring
●Construction sites
●Gantry cranes and overhead cranes
●Port and harbor lifting equipment
●Shipyards and offshore facilities
●Wind-sensitive industrial machinery
●Bridges and high-rise buildings
●Mining operations
●Outdoor warehouses
●Meteorological monitoring stations

Why Choose the FY-W1 Wind Speed Alarm Instrument?

Feature	FY-W1 Wind Speed Alarm Instrument	Conventional Wind Speed Meter
Real-time Wind Monitoring	✔	✔
Wind Force Display	✔	Limited
Audible & Visual Alarm	✔	Usually unavailable
Relay Output Control	✔	Rare
High-Brightness LED Display	✔	LCD or no display
Continuous Automatic Sampling	✔	Varies
Waterproof Wall-Mount Design	✔	Optional
Industrial Outdoor Reliability	Excellent	Moderate
Tower Crane Safety Compliance	Designed for industrial crane applications	Not always applicable

Frequently Asked Questions
Q1. What wind speed range can the FY-W1 measure?
It measures wind speeds from 0 to 70 m/s with a resolution of 0.1 m/s.
Q2. Can the alarm threshold be adjusted?
Yes. Users can quickly set customized wind speed alarm values using the front-panel buttons.
Q3. Does the instrument support external equipment control?
Yes. It provides one dual-contact relay output that can be connected to warning systems or automatic equipment control.
Q4. Is the display visible under strong sunlight?
Yes. The instrument uses a high-brightness LED digital display, making it easy to read in both daylight and nighttime conditions.
Q5. Which power supply options are available?
Optional power supplies include:
●AC220V
●DC12V
●DC24V
Q6. Where is the FY-W1 commonly installed?
It is commonly installed on tower cranes, construction machinery, harbor cranes, industrial plants, outdoor structures, and other locations where wind safety monitoring is essential.

Applications Requiring Reliable Wind Safety Monitoring
The FY-W1 is designed for environments where excessive wind can threaten equipment operation or personnel safety. Its fast response, durable construction, relay control capability, and configurable alarms make it an effective solution for continuous wind monitoring in demanding industrial and construction applications. With high measurement accuracy and dependable performance, it helps operators make timely safety decisions and reduce weather-related operational risks.

Frequently Asked Questions
Q1. What wind speed range can the FY-W1 measure?
It measures wind speeds from 0 to 70 m/s with a resolution of 0.1 m/s.
Q2. Can the alarm threshold be adjusted?
Yes. Users can quickly set customized wind speed alarm values using the front-panel buttons.
Q3. Does the instrument support external equipment control?
Yes. It provides one dual-contact relay output that can be connected to warning systems or automatic equipment control.
Q4. Is the display visible under strong sunlight?
Yes. The instrument uses a high-brightness LED digital display, making it easy to read in both daylight and nighttime conditions.
Q5. Which power supply options are available?
Optional power supplies include:
●AC220V
●DC12V
●DC24V
Q6. Where is the FY-W1 commonly installed?
It is commonly installed on tower cranes, construction machinery, harbor cranes, industrial plants, outdoor structures, and other locations where wind safety monitoring is essential.
