FY-TH100 Soil Multi-parameter Detector

Product ID：HTRcd015

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberFY-TH100

Brand NameFUYUANFEIKE

Payment TermsTT，PAYPAL，Alibaba.com Pay

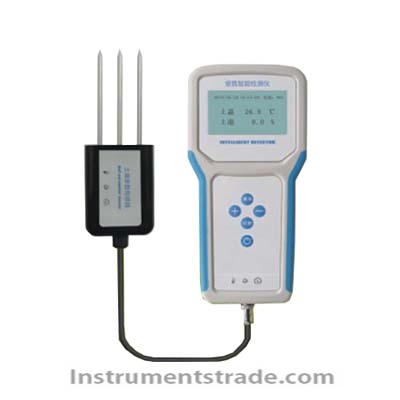

FY-TH100 Soil Multi-parameter Detector
Introduction:
The FY-TH100 soil multi-parameter detector is a portable soil testing device that is easy to carry and operate. With a low-power large-screen LCD, it can simultaneously display soil temperature, soil moisture, soil salinity, soil conductivity, pH, etc. The built-in large-capacity FLASH memory chip can store up to 90,000 pieces of historical data. The universal USB communication interface allows users to download data to a computer using the included USB cable, or transmit data to a cloud platform via 4G, facilitating further processing and analysis of meteorological data.
Features:
1. Measure soil temperature, soil moisture, soil salinity, soil conductivity, pH, and other data;
2. Large-capacity data storage, capable of storing up to 90,000 pieces of meteorological data (data recording intervals can be set between 1 and 240 minutes); 3.
Suitable for one-hand operation, equipped with alarm function and battery indicator;
4. Automatic shutdown function;
5. Can provide product testing reports issued by national inspection centers;
6. Low-power high-resolution LCD display;
7. Universal TYPEC-USB communication interface for convenient data download and charging;
8. Supports wireless 4G communication, with data transmitted to the cloud platform;
9. System language can be switched between Chinese and English;
10. Lithium battery powered, with battery level indicator; low-power design, long standby time; 11.
Includes Chinese user manual, permanent markings, and product data identification
; 12. Scientifically and reasonably designed structure, easy to carry.
Technical Specifications

meteorological elements	measurement range	measurement accuracy	resolution
soil moisture	0～100％	±3％	1%
soil temperature	-40～80℃	±0.2℃	0.1℃
soil salinity	0.1~5g/L	±1％	0.1g/L
Soil EC	0.2~20000us/cm	±1％	1us/cm
Soil pH	0~14PH	±0.2PH	0.1PH
audible and visual alarm	LCD backlight flicker frequency
Extended display	PH (with optional PH probe), nitrogen, phosphorus, potassium, altitude, longitude and latitude, etc
Satellite system	Beidou+GPS+GLS+QZSS
positioning accuracy	About 1 meter
host size	205mm100mm35mm
mounting bracket	Portable tripod (optional)
suitcase	Aluminum alloy portable handheld case (optional)
communication interface	TYPEC-USB
storage capacity	90,000 pieces of historical data
power supply method	3.7V lithium battery
standby time	70 hours
Optional features	SD card storage, GPS positioning, Bluetooth printing, 4G communication
working environment	-20C~80℃；5%RH~95%
