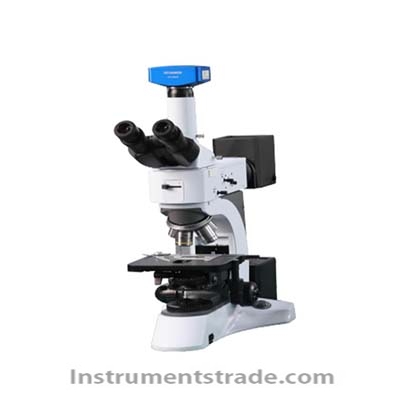

FX-4 Ferrography Microscope

Product ID：GGXjx023

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberFX-4

Brand NameYATAIGUANGDAIN

Payment TermsTT，PAYPAL，Alibaba.com Pay

FX-4 Ferrography Microscope
Introduction:
The FX-4 upright ferrography/metallographic microscope is widely used in scientific research and inspection work related to metallography, petrography, integrated circuits, crystals, and more. The instrument boasts a novel design, stable structure, and powerful functions. It employs a telephoto imaging system, a flat-field achromatic objective lens, and a wide-field eyepiece. Equipped with photographic and video interfaces, it delivers clear and flat images with a wide field of view, deep depth of field, and sharp images. The built-in brightfield, darkfield, and polarization systems facilitate photography, video recording, and image analysis, allowing users to operate quickly and efficiently.
Technical Specifications
objective lens

magnification	Numerical Aperture	working distance	medium	Scope of application
P4×	0.1	23.2	air	bright field
P10×	0.25	16.5	air	Bright field, dark field
P20×	0.40	1.6	air	Bright field, dark field
P40×	0.65	0.55	air	bright field
P80×	0.90	0.2	air	bright field

eyepiece

magnification	focal length	Field of view diameter	remark
8×	31.25	φ18
10×	25	φ18
10×	25	φ18	With a 0.1mm reticle
12.5×	20	φ14

The magnification of the combination of objective lens and eyepiece ranges from 32× to 1000×.
Photography eyepiece: 4× (135 photography).
Coaxial coarse and fine focusing: adjustment range 36mm (NJL-1 type 24mm)
The micro-motion grid value is 0.002mm.
Mechanical moving stage: 185mm×142mm, with a moving range of 75×55 mm.
Power Supply: Input Voltage: 110V~220V (wide voltage adaptive); Output Voltage: 0~12V, (0~50W) with stepless dimming and continuously adjustable
Lighting: 12V 50W halogen light source, capable of continuous voltage adjustment (suitable for vertical illuminators); 12V 20W halogen light source, capable of continuous voltage adjustment (suitable for general lighting)
Instrument functions: brightfield, darkfield, polarization, photography, etc.
Instrument dimensions: length 450mm, width 284mm, height 460mm.
Instrument weight: 13.5kg
