FTmicro10 Fourier Transform Infrared Microscope

Product ID：FGhw046

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberFTmicro10

Brand NameSHYINGSA

Payment TermsTT，PAYPAL，Alibaba.com Pay

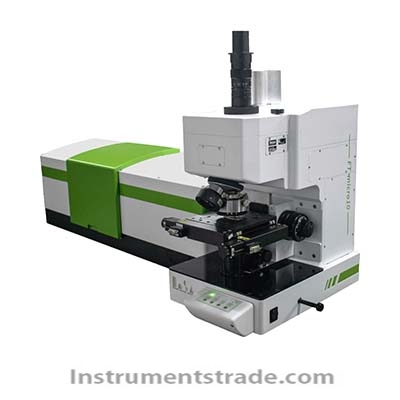

FTmicro10 Fourier Transform Infrared Microscope
Product Introduction
The FTmicro10 Fourier Transform Infrared Microscope is a research-grade FTIR microscope independently developed for high-resolution chemical and physical analysis of microscopic samples. It combines high-definition visible-light observation with high-performance infrared spectroscopy, enabling precise micro-area measurement at high infrared spatial resolution.
The FTmicro10 supports a wide range of measurement modes, including microscopic transmission, reflection, ATR, variable-temperature, and micro-emission measurements. Users can switch between observation and measurement modes directly through the front control panel, simplifying operation and improving laboratory efficiency.
With high-resolution visible and infrared optical paths, broad spectral capability, high sensitivity, and a standard liquid-nitrogen-cooled MCT detector, the FTmicro10 is designed for demanding applications in materials science, semiconductors, environmental analysis, food testing, forensic science, biomedicine, cultural heritage conservation, industrial quality control, and geological research.
The system can also be expanded with an automatic high-precision sample stage, microscopic ATR optics, DTGS detector, thermoelectrically cooled InGaAs detector, and external optical accessories to accommodate different research requirements.

Key Performance Features
•  Research-grade Fourier transform infrared microscope
•  High-resolution visible and infrared optical systems
•  Sub-10 μm spatial resolution for micro-area analysis
•  High signal-to-noise ratio of >7000:1 with MCT detector
•  Coaxial visible and infrared optical paths for accurate "what you see is what you measure" analysis
•  Supports infrared transmission, reflection, and ATR measurements
•  Supports variable-temperature and micro-emission measurements
•  Two LED visible-light sources
•  12-megapixel high-resolution color camera
•  Standard 20× infrared objective and 20× focusing optics
•  Optional 20× microscopic ATR objective
•  Built-in high-precision adjustable knife-edge aperture
•  Standard liquid-nitrogen-cooled MCT detector
•  Multiple detector channels with automatic software switching
•  Optional DTGS and thermoelectrically cooled InGaAs detectors
•  Manual XYZ sample stage with 1 μm repeatability
• Compatible with infrared heating/cooling stages and electrochemical accessories
•  Integrated multimedia imaging and measurement system
•  Expandable external optical path for accessories such as TGA

Working Principle
The FTmicro10 works by coupling an FTIR spectrometer with a dedicated infrared microscope.
The infrared interferogram generated by the FTIR spectrometer is directed into the infrared microscope through a switching mirror. The infrared objective focuses the beam onto the selected microscopic area of the sample. By adjusting the built-in knife-edge aperture, the measurement area can be precisely controlled to achieve spatial resolution below 10 μm.
Depending on the selected measurement mode, infrared radiation transmitted through or reflected from the sample is collected by the infrared optical system and directed to the detector. The resulting interferogram is processed to generate the infrared spectrum, from which the sample's chemical composition and physical information can be determined.
The microscope consists of two coaxial optical systems:
• Visible optical path: LED light sources + high-resolution camera for sample observation and positioning.
• Infrared optical path: infrared objective + focusing optics + infrared detector for spectroscopic measurement.
The coaxial optical design allows the operator to accurately locate microscopic regions in the visible image and perform infrared measurement on the same position.

Technical Parameters

Parameter	Specification
Model	FTmicro10
Product Type	Fourier Transform Infrared Microscope / FTIR Microscope
Application Level	Research-grade
Spatial Resolution	<10 μm
Signal-to-Noise Ratio	>7000:1, peak-to-peak, with MCT detector
Measurement Modes	Transmission, reflection, ATR, variable-temperature, micro-emission
Visible Light Sources	2 LED light sources
Camera	12-megapixel high-resolution camera
Standard Infrared Objective	20×
Standard Focusing Optics	20×
Optional ATR Objective	20×
Standard Detector	Liquid-nitrogen-cooled MCT
Optional Detectors	DTGS, thermoelectrically cooled InGaAs
Aperture	Adjustable knife-edge aperture
Sample Stage	Manual XYZ stage
Stage Repeatability	1 μm
Display/Imaging	Video adapter, color camera, measurement scale, image capture
Sample Stage Compatibility	Infrared heating/cooling stage, electrochemical accessories
External Optical Expansion	Supported
Dimensions	56 × 30 × 72 cm, including LED source and CCD optics

Optical and Detection System
Coaxial Optical Design
The visible and infrared optical paths use a coaxial design to provide a "what you see is what you measure" measurement experience. This helps minimize positioning errors between visible observation and infrared analysis.
High-Resolution Visible Imaging
Two LED light sources and a 12-megapixel camera provide clear microscopic images for sample observation, positioning, image capture, and measurement. Optional visible/infrared polarization accessories can further expand imaging capabilities.
High-Sensitivity Infrared Detection
The standard FTmicro10 configuration uses a liquid-nitrogen-cooled MCT detector, providing high sensitivity and a signal-to-noise ratio above 7000:1. Additional DTGS and thermoelectrically cooled InGaAs detector configurations are available for different spectral and application requirements.
Microscopic ATR Measurement
The optional microscopic ATR system combines a 20× objective with an ATR crystal system. The ATR crystal diameter is less than 100 μm, allowing localized infrared analysis of very small sample areas.

Application Scenarios
The FTmicro10 FTIR microscope is designed for micro-area chemical and physical analysis across multiple industries.
Materials Science
•  Multilayer plastic composition analysis
•  Polymer and composite material identification
•  Microscopic material characterization
•  Coating and surface analysis
Semiconductor and Electronics
•  PCB foreign-material analysis
•  Microscopic contamination identification
•  LCD panel defect analysis
•  Optical lens contaminant analysis
Environmental and Food Testing
•  Microplastic identification
•  Food adulterant analysis
•  Microscopic contaminant identification
•  Environmental sample characterization
Forensic Science
•  Ink analysis
•  Paint fragment identification
•  Fiber analysis
•  Hair and metabolite analysis
•  Microscopic drug analysis
Cultural Heritage and Archaeology
•  Paint analysis
•  Textile and silk analysis
•  Hair and fiber identification
•  Conservation material characterization
Biomedicine and Pharmaceuticals
•  Drug metabolism studies
•  Pharmaceutical foreign-material analysis
•  Tissue lipid and protein distribution studies
•  Microscopic biological sample characterization
Industrial Quality Control
•  LCD panel contamination analysis
•  Optical lens foreign-particle analysis
•  Coating composition and variation analysis
•  Microscopic defect identification
Geology and Mineralogy
•  Mineral inclusion analysis
•  Microscopic geological material characterization

FTmicro10 vs. Conventional FTIR Spectrometer

Feature	FTmicro10 FTIR Microscope	Conventional FTIR Spectrometer
Sample Scale	Microscopic and micro-area samples	Usually bulk samples
Spatial Resolution	<10 μm	Generally not designed for micro-area imaging
Visible Observation	12 MP high-resolution camera	Usually external observation required
Measurement Modes	Transmission, reflection, ATR, variable-temperature, micro-emission	Usually fewer microscopic modes
Optical Design	Coaxial visible/IR	Standard FTIR optical path
Detector	LN₂-cooled MCT standard	Configuration-dependent
Microscopic ATR	Optional	Usually unavailable
Sample Positioning	1 μm stage repeatability	Standard sample positioning
Micro-Area Analysis	Excellent	Limited
Applications	Materials, semiconductors, forensics, biomedicine, heritage	General FTIR analysis

The FTmicro10 Fourier Transform Infrared Microscope extends conventional FTIR spectroscopy into high-resolution microscopic analysis. Its coaxial visible/IR optical system, sub-10 μm spatial resolution, multiple measurement modes, microscopic ATR capability, and high-sensitivity MCT detector make it particularly suitable when conventional bulk FTIR analysis cannot resolve small particles, defects, inclusions, layers, or localized contamination.

Frequently Asked Questions (FAQ)
1. What is the FTmicro10 FTIR Microscope used for?
The FTmicro10 is designed for high-resolution micro-area infrared spectroscopy, allowing users to identify chemical composition and obtain physical information from microscopic samples or localized regions.
2. What is the spatial resolution of the FTmicro10?
The system can achieve a spatial resolution of less than 10 μm, depending on the optical configuration and sample conditions.
3. What measurement modes does the FTmicro10 support?
It supports microscopic transmission, reflection, ATR, variable-temperature, and micro-emission measurements.
4. What detector is included as standard?
The standard configuration includes a liquid-nitrogen-cooled MCT detector. DTGS and thermoelectrically cooled InGaAs detectors can also be selected.
5. What is the advantage of the coaxial optical system?
The coaxial visible and infrared optical paths allow the operator to observe and measure essentially the same sample position, providing a "what you see is what you measure" workflow and reducing positioning errors.
6. Does the FTmicro10 support ATR analysis?
Yes. A 20× microscopic ATR objective is available as an optional configuration. Its ATR crystal diameter is less than 100 μm for localized analysis.
7. What sample stage is included?
The standard system includes a manual XYZ sample stage with approximately 1 μm repeatability. An automatic high-precision stage is available as an upgrade.
8. Can the FTmicro10 be used for materials and forensic analysis?
Yes. The FTIR microscope is suitable for multilayer plastics, PCB contaminants, microplastics, food adulterants, inks, paint fragments, fibers, hair, drugs, coatings, pharmaceutical residues, and other microscopic materials.
9. Can the system be expanded for specialized research?
Yes. The FTmicro10 supports detector upgrades, automatic sample stages, microscopic ATR optics, variable-temperature accessories, electrochemical accessories, and external optical configurations such as TGA coupling.

Conclusion
The FTmicro10 Fourier Transform Infrared Microscope is a research-grade FTIR microscopy system designed for high-resolution analysis of microscopic materials and localized sample regions. With sub-10 μm spatial resolution, a high-resolution 12 MP visible imaging system, coaxial optical design, multiple infrared measurement modes, microscopic ATR capability, and a high-sensitivity MCT detector, it provides powerful micro-area chemical analysis.
Its flexible configuration makes the FTmicro10 suitable for materials science, semiconductor inspection, environmental and food analysis, forensic science, cultural heritage conservation, biomedicine, industrial quality control, and geological research.
