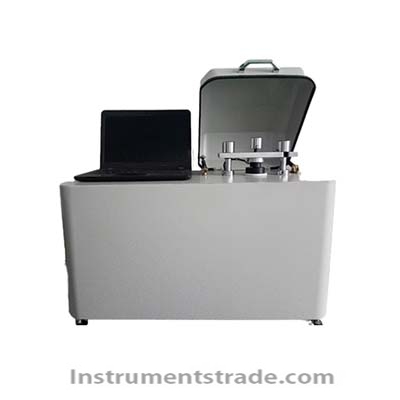

FT-8400A Series Insulating Powder Resistivity Tester Introduction: The FT-8400 series insulating powder resistivity tester is applied to the measurement and analysis of insulating powder materials with similar properties, such as plastic powder, coating, resin powder, chemical powder, and rubber powder. It is used to measure and analyze the electrostatic changes generated by the cohesive force changes during the compression process of insulating powder. It is also used for enterprise quality inspection, research and development departments, colleges and universities, scientific research institutions, and quality inspection agencies Features: 1. The measuring range of the resistance can reach up to 10^16 ohms 2. Adopt integrated circuit modules; integrated structural design 3. USB, 232 communication interface, DC constant voltage source, 4. Operated using PC software, 5. Analysis of data curves and spectrograms during the automatic testing process 6. Report generation, storage, and printing Technical Specifications: Specification and model: FT-8400A Resistance range: 104Ω～1×1013Ω Resistivity range: 104Ω～1×1013Ω-cm Test voltage: 0-1000V Resistance accuracy: <1G ±1%; ≥1G ±3%; ≥1T ±10%; ≥10T ±20% (standard resistor) PC software interface: Resistance, resistivity, unit conversion, current, voltage, thickness, spectrum display, pressure setting, pressure, report export, waveform refresh, time setting, start, stop, run compaction density Test method: The test powder employs a two-electrode method (for solid materials, an external three-ring electrode method can be used) Mold: Standard mold with an inner diameter of 10mm; other specifications can be customized Pressure range options: a. 200kg; b. 300kg; c. 500kg; d. 1000kg Mold cavity stroke: 0-20mm Sample height: Automatic real-time sample height measurement with a range of 0.001-10.000mm, a measurement resolution of 0.001mm, and a measurable sample compression thickness of 0.1mm Constant pressure time: 0-99.9s Temperature and humidity range: normal temperature to -50 degrees; humidity: 20% to 98% Standard components: a. 1 standard calibration resistor; b. 1 standard height calibration piece Test methods: a. Automatic measurement b. Operation through PC software interface Pressurization mode: Automatic operation Demolding method: Automatic operation Electrode material: Copper electrode Dust collection system: External dust collection processor Error: The error range varies from 1% to 15% depending on the material characteristics and the measurement range Operating power supply: Input: AC 220V±10%, 50Hz; 60W Standard configuration and optional purchase: a. Computers and printers are configured according to customer requirements; b. One copy of the metrology certificate c. Moisture meter d. True density meter
