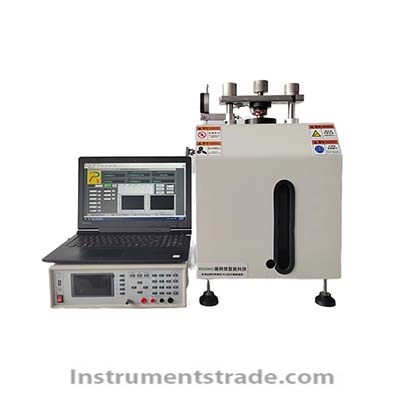

FT-8100 Series Four-Point Probe Powder Conductivity Tester

Product ID：WLft040

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberFT-8100 Series

Brand NameRUIKEWEI

Payment TermsTT，PAYPAL，Alibaba.com Pay

FT-8100 Series Four-Point Probe Powder Conductivity Tester
Introduction:
With a known amount of powder, compress its volume to a set pressure value or intensity under hydraulic power, measure the powder's resistance, resistivity, and conductivity online, and record the data. This solves the problem of difficult powder tablet pressing or measurement errors during tablet removal
Measurement of resistivity of carbon-coated lithium iron phosphate cathode materials for lithium-ion batteries; also applied to the analysis and detection of conductor or semiconductor powder materials that require measurement using the four-point probe method; also used for measuring the resistivity of graphite-like powder materials; applied to enterprise quality inspection; research and development departments, colleges and universities; scientific research institutes; and quality inspection agencies
Features:
1. Adopt integrated circuit modules; automate circuit soldering
2. 4.3-inch LCD display, operated by membrane buttons, with built-in temperature function
3. DC constant current source system
4. Four-point probe measurement mode - single electrical measurement
5. Choose between Chinese and English versions
6. Manual hydraulic pressurization
7. Range alarm
8. Upper and lower limit setting alarm function
9. Refer to ergonomic design
10. Purchase: PC software
Technical Specifications:

Specification Model	FT-8100A	FT-8100B
1. Square resistance range	10^-5～2×10^5Ω/□	10^-4～2×10^5Ω/□
2. Resistivity range	10^-6～2×10^6Ω-cm	10^-5～2×10^6Ω-cm
3. Conductivity range	5×10^-6～10^6s/cm	5×10^-6～10^5s/cm
4. Test current range	0.1μA ，1μA，10μA，100µA，1mA，10mA，100 mA	10μA，100µA，1mA，10mA，100 mA
5. Display readings	LCD: Resistance, resistivity, sheet resistance, conductivity, temperature, unit conversion, temperature coefficient, current, voltage, probe shape, probe spacing, thickness, conductivity, pressure
6. Testing method	Four-point probe common single electrical measurement + manual hydraulic pressure
7. Molds	The mold can be equipped with one of the following specifications: 13mm; 16mm; 20mm; If not selected, the manufacturer will automatically configure it based on the pressure range
8. Selection of pressure range	a.200kg； b.300kg； c.500kg； d.1000kg
9. Mould cavity stroke:	0-20mm (it is recommended that the compacted thickness of the sample be within 4mm)
10. Thickness measurement range	Sample thickness measurement range: 0.01-12.7mm
11. Constant pressure time	0-99.9s (manual recording required)
12. Error	≤4.5% (average error, excluding human factors)
13. Working power supply	Input: AC 220V±10%, 50Hz, <60W
