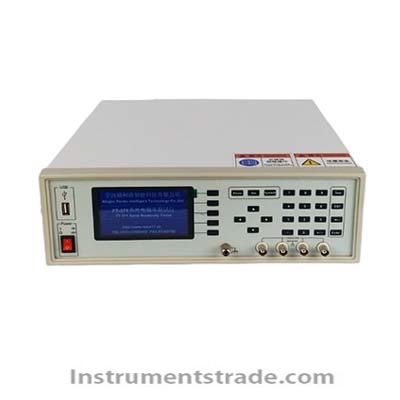

FT-300C Material Conductivity Tester Introduction: The FT-300C material conductivity tester is a tool suitable for manufacturing enterprises, universities, and research institutions, used in laboratories to inspect and analyze the quality of conductive materials, and to establish reference ergonomic operating specifications Features: 1. Four-terminal measurement method 2. Configure different measuring devices to test the resistivity of different types of materials 3. Liquid crystal display, temperature compensation function 4. Automatic range, automatic measurement of resistance, resistivity, and conductivity data 5. Data processing for PC software processes 6. Standard resistance calibration instrument 7. Constant current source output 8. Operation with membrane buttons 9. Choose between Chinese or English language interface 10. Automatic positive/negative current output, automatic positive/negative voltage measurement Technical Specifications: Resistance measurement range: 1. Resistivity: 10-8 to 2×10^6 Ω-cm Resistance: 10^-7 to 2×10^6 Ω Conductivity: 5 ×10-6～108s/cm Resolution: 0.1μΩ Measurement error ± (0.05% of reading ± 5 characters) ± 0.05% 2. Measurement voltage range: 2mV, 20mV, 200mV, 2V Measurement accuracy: ±0.1% Resolution: 0.1uV, 1uV, 10uV, 100uV 3. (1) Current output: DC current continuously adjustable from 0 to 1000mA, powered by an AC power supply (2) Range: 1μA, 10μA, 100µA, 1mA, 10mA, 1000mA (3) Error: ±0.2% of reading ±2 characters/accuracy ±0.2% 4. Overall dimensions of the host: 330mm*340mm*120mm 5. Display mode: LCD display 6. Power supply: 220±10% 50HZ/60HZ
