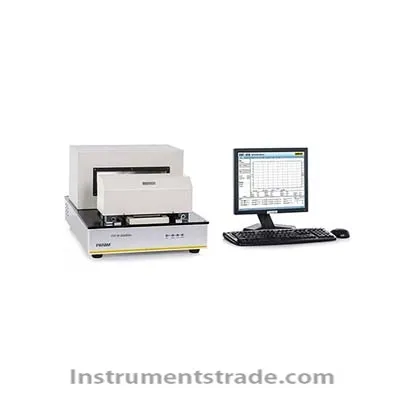

FST-02 Thin Film Thermal Shrinkage Performance Tester

Product ID:HZBZqt034

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberFST-02
    Brand NameJINANLANGUANG
    Payment TermsTT,PAYPAL
    FST-02 Thin Film Thermal Shrinkage Performance Tester
    Introduction:
    The FST-02 film thermal shrinkage performance tester is based on the ISO 14616 international standard and is a testing equipment that can accurately and quantitatively measure the thermal shrinkage force, cold shrinkage force, and thermal shrinkage rate of plastic films during the thermal shrinkage process.
    characteristic:
    1. The system can test three sets of samples simultaneously
    2. High precision force sensor and displacement sensor can accurately measure the thermal shrinkage performance parameters of the sample
    3. The system displays in real-time the thermal shrinkage force, cold shrinkage force, and thermal shrinkage rate during the test process
    4. Intelligent prompts for sensor calibration provide users with a secure data operation environment
    5. The system provides functions for querying and printing historical data, and intuitively displays test results to users
    6. Integrated system design, using embedded development technology to integrate professional detection equipment and control software
    7. The special control system fundamentally eliminates system software failures caused by computer virus, misoperation, etc., and ensures the reliability of equipment operation 8. The safety of data
    9. The system is equipped with a standard display, mouse, and keyboard, and adopts a Windows operating interface, making it convenient for users to conduct experimental operations and data display
    10. The system is embedded with 4 USB interfaces and 2 network ports, facilitating external access and data transmission of the system
    Technical parameters:
    Contraction force range: 0.2-30 N (standard)
    Note: Non standard customizable
    Shrinkage force measurement accuracy: ± 0.2%
    Heat shrink displacement range: 0.125-70 mm
    Measurement accuracy of thermal shrinkage displacement: ± 0.125 mm
    Working temperature range: room temperature~210
    Temperature control accuracy: ± 0.5
    Sample quantity: 1-3 sets
    Sample size: 130 mm ×  15 mm (standard required size)
    Air source: Dry air (provided by the user)
    Interface size: φ 6mm polyurethane pipe
    Boundary dimension: 735 mm (L) ×  490 mm (W)  ×  391 mm (H)
    Power supply: 220VAC 50Hz/120VAC 60Hz
    Net weight: 68 kg

  • Introduction:
    The FST-02 film thermal shrinkage performance tester is based on the ISO 14616 international standard and is a testing equipment that can accurately and quantitatively measure the thermal shrinkage force, cold shrinkage force, and thermal shrinkage rate of plastic films during the thermal shrinkage process.
